10kv Transformer Ipf Insulation Power Factor Tester Power Transformer Tan Delta Tester

Product Description

Transformer IPF Insulation Power Factor Tan Delta Tester

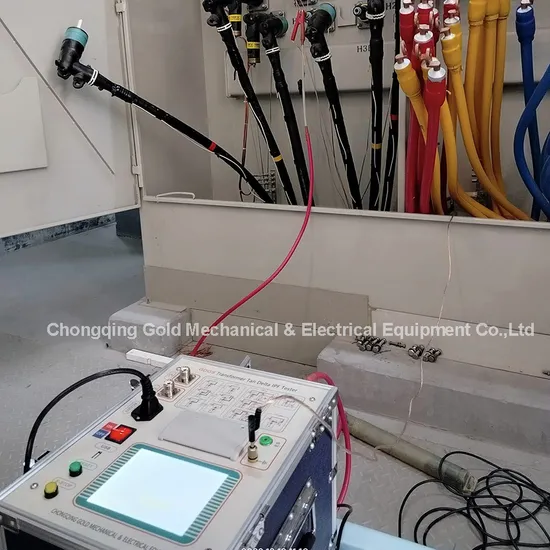

GDGS 10kV Transformer IPF Tan Delta Tester work at site
Introduction: 10kV Transformer IPF Insulation Power Factor Tester Power Transformer Tan Delta Tester is used to measure capacitance, insulation power factor (IPF) in heavy interference site such as power plants or power substations. GDGS Transformer IPF Insulation Power Factor Tan Delta Tester can also be used in laboratory for high accurate test. The set is whole in one designed: including precision digital bridge, power unit, reference capacitor (CN), step-up transformer and other electronic circuits. It's also using frequency shift technology, FFT (Fast Fourier Transform algorithm) and digital filtering. When started, it's running automatically and then outputs the results on LCD touch screen and prints the results automatically.
Specifications:

No.	Item Name	GDGS 10kv Transformer Ipf Insulation Power Factor Tester Power Transformer Tan Delta Tester
1	Use conditions	-15ºC∽50ºC	RH<80%
2	Anti-interference	Frequency conversion
3	Power	AC 220V±10%
4	High output	0.5KV-10KV	Every 0.1kV
		Precision	2%
		Maximum current	200mA
		Capacity	2000VA
5	Self-excited power	AC 0V∽50V/15A	45HZ/55HZ 47.5HZ/52.5HZ 55HZ/65HZ 57.5HZ/62.5HZ Automatic double frequency
6	Resolving power	tgδ: 0.001%	Cx: 0.001pF
7	Precision	△tgδ:±(Reading*1.0%+0.040%)
		△C x :±(Reading*1.0%+1.00PF)
8	Measuring range	tgδ	Unlimited
		C x	15pF < Cx < 300nF
			10KV	Cx < 60 nF
			5KV	Cx < 150 nF
			1KV	Cx < 300 nF
		CVT test		Cx < 300 nF
9	CVT range	10∽10000
	Accuracy	0.1%
	Resolving power	0.01
10	Memory size	The 200 group supports U disk data storage
11	Net Weight	28 Kg

Working principle of GDGS Transformer Tan Delta Tester
Package List:

---
