30HP Diesel Engine Wood Crusher for EU Market

Product Description

Initially, wood chipping was mainly used for the efficient removal of branches and green waste in areas such as parks and woodland, but as wood chip came to be regarded as an important natural resource, wood chipping has taken on a new, ecomomic dimension. Wood chip is valuable if the quality is consistent and meets designated requirements.CDW wood chippers ensure these requirements are met. Our entire product range is designed to deliver high quality wood chip and on many of our machines the knives can be adjusted to produce different sizes, depending on what the wood chip wii be used for. Large quantities of wood chip are already being used as a fuel supply for energy and heating, and for industrial purposes . In addition, wood chip is extensively used as ground cover or as surfacing material for paths as an environment-friendly weed killer, which reduces or eliminates the need for chemical sprays.

Model	CDR-6	CDR-8	CDR-12	CDR-18	CDR30	CDR-40	CDR-50
Packing size	1600*1020*1400 (mm)	1600*1080*1400 (mm)	1800*1100*1100(mm)	1800*1100*1100 (mm)	2200*1400*1100 (mm)	2200*1500*1400 (mm)	2280*1580*1600 (mm)
Weight (kg)	310	360	450	500	620	840	950
Working efficiency (m3/h)	6-7	7-8	6-7	7-8	8-12	10-14	13-17
Match power (hp)	25-30tractor	35-50tractor	12hp diesel engine	18 hp diesel engine	30hp 3-cylinder engine	40hp 4-cylinder Diesel engine	50hp,diesel engine
Max. chipping diameter	16cm	21cm	16cm	21cm	26cm	31cm	36cm
Chip size adjustable	1-15mm	1-15mm	1-15mm	1-15mm	1-15mm	1-15mm	1-15mm
Feeder size	170*210	220*280	170*210	220*280	260*350	300*370	360*420mm
Input speed / r/min.	540	540	1080-1390	1080-1390	1080-1390	1080-1390	1080-1390
Feeder type	Hydraulic	Hydraulic	Hydraulic 2 feed roller	Hydraulic 2 feed roller	Hydraulic 4 feed roller	Hydraulic 4 feed roller	4 Hydraulic 4 feeding roller
Power source	Tractor	Tractor	Self engine	Self engine	Self engine	Self engine	Self engine
Wheel	(NO)	(NO)	YES	YES	YES	YES	YES
Towable type	3 3-point linkage	3 3-point linkage	Towable	towable	towable	towable	towable
jockey wheel			YES	YES	YES	YES	YES
Package	Iron frame

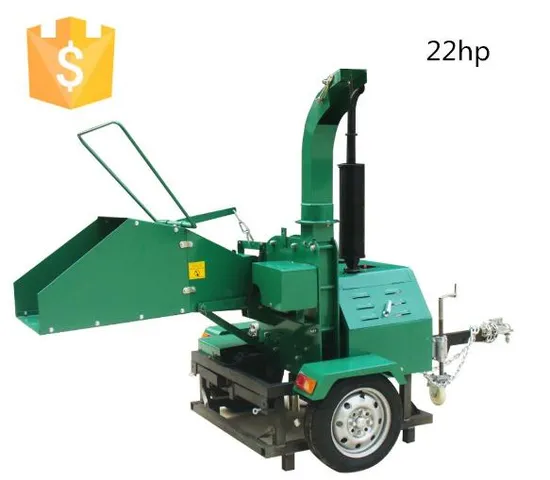

As pics showed, 18-50hp wood chipper shredder machine is equipped with all safety settings,


such as turning and parking lights, safety chains...
Height adjustment lever helps the shredder conveniently towed by various trailers.Our diesel wood chipper shredder machine, standard comes with steel rim high speed tyre. For some markets, such as Australia, the steel rim turf tyres are really hot sale. So we also make it to help our customers gain more market. Pls note, it's forbidden to run on road. Besides above, the aluminum rim tyre, as often coming with car, is also used here on customers' request.
Same as PTO wood chipper, the diesel shredder machine can also come with mechanical or
hydraulic feeding. For 18-22hp, you can choose either.
Anyhow, for the power above 30hp, we don't suggest on mechanical or single feeding, because
of power waste.
Powered by different engines, the shredder works for various customers' needs.
What's more, on the same machine, working speed is also adjustable.
See the pic, there are 3-stage of the lever, low-mid-high. You can change its direction so to achieve different speed.

To ensure above advantages, We confirm 100% high standard in each production process: from design to delivery:

Process
a) Cutting:
♦NC flame cutting machine for thickness less then 60mm, high precision & good economy.
♦ Imported Laser cutting machine for thickness less then 20mm, High precision & small thermal
deformation.
♦ Sawing machine for section bar blanking.
♦ Plate shearing machine for thin plate cutting.

b)Sheetmetal fobrication: flexible use of bending machine and press machine
c) Machine work: uses lathe, milling machine, drilling machine and grinding machine.
d) Welding: mixed gas arc welding, argon arc welding, electrode welding.

---
