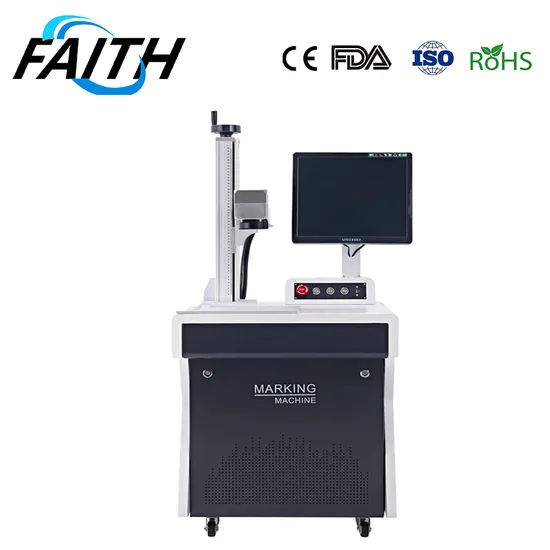

Faith 20W 30W 50W Fiber Laser Marking Machine Marking/Engraver/Cutter/Marker/Printing/Cutting Machine Standard Laser Engraving

Product Description

Faith 20W 30W 50W Fiber Laser Marking Machine Marking/Engraver/Cutter/Marker/Printing/Cutting Machine CE FDA Standard Laser Engraving Product Description
Reliable:solid mechanical and optical components make it extremely stable with low maintenance rate.
High definition: High-quality beams can be focused to a very small point.Combines high energy density.Produce accurate and repeatable markings
Local integration solution:industrial interface,plug and play global compatibility of communication equipment
Produce accurate and repeatable marking in a short time

technical parameters
Laser power:	20W / 30W
Laser wavelength:	1060 nm
Beam quality:	< 2 (M2)
Laser type:	Pulse or continuity
Service life:	The laser runs for 100,000 hours
Cooling system:	Built-in air cooling
Power supply:	Power supply: 220V 50HZ ac, power consumption: 500W
Operating environment:	Temperature: - 20 ° C ~ 45 ° C, relative humidity 80%;
Marking depth:	10 w 0.3 mm or less 20 w 0.5 mm or less 30 w 0.7 mm or less
Marking line speed:	7000 mm/s or less
Marking range:	Standard plane 110 mm X110 mm can be customized 160 mm X 160 mm
Minimum characters:	The 0.15 mm
Minimum line width:	The 0.012 mm
Repeat precision:	+ / - 0.002
Operating system:	Win98 / Win2000 WinXP/ Win 7
Graphic editor:	Software provides self - editor, computer input, plane circumference, fan - shaped distribution and end - face circular distribution.
Graphic conversion:	Software to provide AutoCAD, CorelDRAW, C A X A graphic file conversion

Precision galvanometer
The diameter of standard incident spot is 10mm.The system has the characteristics of zero drift,fast speed,small size,low temperature and stable and reliable operation
High ResolutionTouch Screen
industrial touch screen control
system.easy operation and use.stable and reliable.suitable for 24 hours operation
Raycus 100w Fiber Laser
Echinacil characteristics Highly stable laser output Highty single-pulse energy Highty marking efficiency Short pulse setup time High reliability Maintenance-free operation
High Precision Field Lens
The lens is made of 7980 Corning 7980 materials as the substrate and coated with a high permeability anti-reflection film
Detailed Photos
Application
1. can be a variety of metal, non-metallic materials for processing.Especially for high hardness, high melting point, brittle material marking more obvious advantages.
2. belongs to the non-contact processing, does not damage the product, no tool wear, marking good quality.
3. The laser beam is fine, the processing material consumption is small, and the processing heat influence area is small.
4. high processing efficiency, the use of computer control, easy to achieve automation.
Can print numbers,Chinese characters,English letters,graphics Supports automatic coding,serial
number,batch number,date barcode,two-dimensional code,automatic number jump,etc.
With more than 20 years of manufacturing experience,we are a stable supplier for many large automotive and
parts industries.
Red light preview function can display the printed content on the workpiece in advance.
Company Profile
We have accumulated rich experience in design and production.In addition to the imported automatic printing
equipment in domestic car production line,our company has an absolute advantage,and has installed more
than 35,000 sets of systems worldwide.The sales volume of mechanical marking system ranks the first in the
world,and the sales volume of laser marking system ranks the first in Asia.Some domestic customers such as
Toyota,faw Volkswagen,faw assembly geely,tianjin xiali,ningbo,Shanghai maple,Shanghai gm,jiangsu
yueda KIA,foton,guangzhou Honda,Beijing hyundai,Beijing Benz,jinbei automobile,brilliance and other
manufacturers,both chose my company with the line of printing equipment,the equipment on the production
line of continuous and reliable work,low failure rate,create value for customers,the company won the honor
for me.

---
