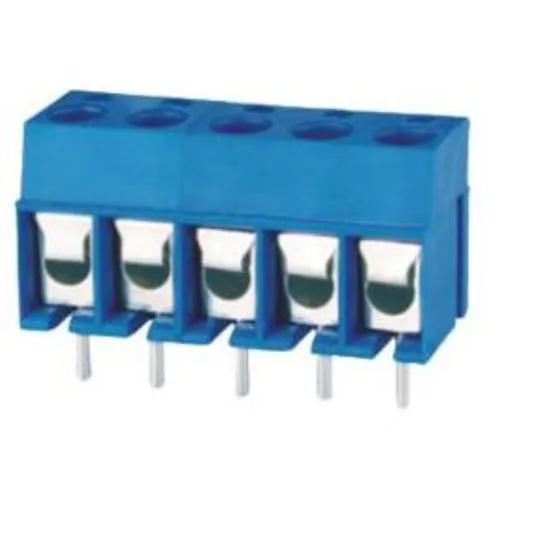

Connector 301 301 Terminal Blocks PCB

Product Description

Application: Environmental Protection: Connection Mode: Shape: Contact Termination Form: Type:

PCB

General

Threaded Connection

Rectangle

Screws Fixed

High Temperature Electric Connector

Samples:

1 Piece(Min.Order)

Material:
Screws: M2.6 Stell, Zinc plated, - slot or + cross tupeshttps://nbkfhd.en.made-in-china.com/product-list-1.html
Housing: PA66, UL94V-0
Reed: Phosphor bronze, Ni plated or stainless steel
Pin header: Brass, tin plated

Rated:	300V 12A, 250V 24A
Insulation resistance:	500mohm /DC500V
Withstanding Voltage:	AC2000V/1Min
Wire range:	22-14 AWG, 2.5 mm(suqare)
Operating temperature:	-30 degree to + 120 degree
Soldering termperature:	250 degree (+-5) per 5 seconds Torque: 0.5N.m (4.43Lb.in)

Electrical:
Rated: 300V 12A, 250V 24A
Insulation resistance: 500mohm /DC500V
Withstanding Voltage: AC2000V/1Min
Wire range: 22-14 AWG, 2.5 mm(suqare)
Mechanical:
Operating temperature: -30 degree to + 120 degree
Soldering termperature: 250 degree (+-5) per 5 seconds
Torque: 0.5N.m (4.43Lb.in)
Strip lenth: 4.5-5mm
Meet for RoHS, REACH
UL Approvals
Bag, inner boex, carton package.
Model NO.
301 terminal blocks Character High Temperature Resistance Production Process Injection Molding Interface Type AC/DC Brand Kfhd Color Blue Transport Package Bag, Carton Specification 13x9x9 Origin China HS Code 85369090 Production Capacity 10000000PCS/Year

---
