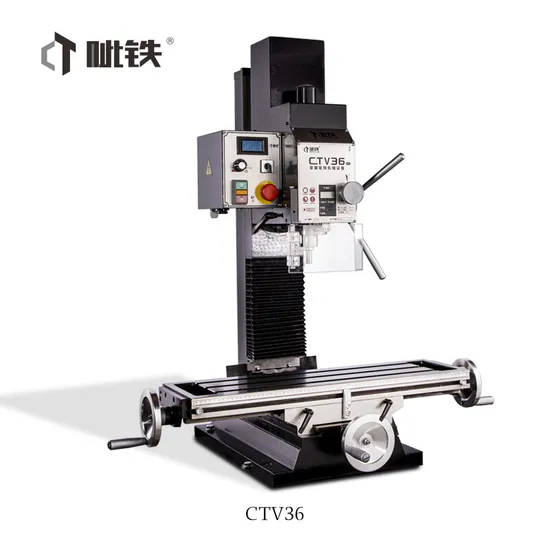

Gear-Driven Type Stand Drilling and Milling Machine with Swivel Head CTV36

US$1,516.00
1-4 Pieces
US$1,456.00
5-9 Pieces
US$1,395.00
10+ Pieces

Basic Info.

Model NO.
CTV36
Type
Knee-and-Column Milling Machine
Object
Gear
Structure
Lifts
Milling Cutter Type
Three Blade Milling Cutter
Milling Cutter Structure
Inlaid Tooth
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Transport Package
Standard Wooden Packing
Specification
1000*700*1000mm
Trademark
CTMACH
Origin
China
HS Code
8458190000
Production Capacity
10000

Product Description

Max.Drilling capacity 36mm
Max.milling capacity 76mm
Max.vertical milling capacity 30mm
Table size 700*210mm
T-slots size 14mm
X spindle travel 440mm
Y spindle travel 220mm
Z spindle travel 400mm
Spindle taper MT3
Spindle travel 70mm
Distance from spindle to column guide rail 190mm
Distance from spindle end to table surface 470mm
Spindle box left&right rotation angle ±45°
Spindle speeds 100~2250rpm/Stepless
Motor Power 1.5KW
Net weight/gross weight 220/240kg
Overall dimensions 860x710x1020mm
Package Size 900x740x1150mm
