US$13,900.00
|
1 Piece
(MOQ)
|
Basic Info.
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Power /Rotation Speed
14.1kw(20HP)@2000rpm
Maximum Travel Speed
3.5km/H
Transport Package
Wooden Package
Specification
4170mm*1300mm*2280mm
Trademark
Jinkuang/Hightop
Production Capacity
50piece/Month
Packaging & Delivery
Package Size
430.00cm * 140.00cm * 220.00cm
Package Gross Weight
2500.000kg
Product Description
Product Description

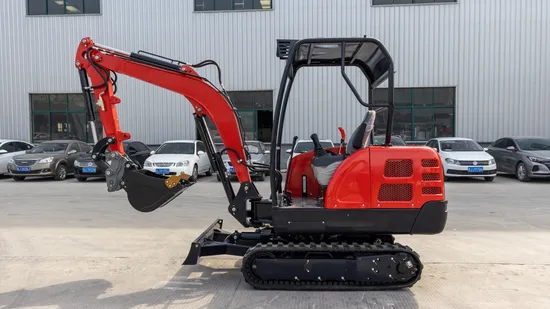

our 2.5 Ton Chinese Earth-moving Machinery Excavator Backhoe Digger with Roof, the perfect solution for all your excavation needs! This mini excavator is designed to provide exceptional performance and efficiency, making it an ideal choice for various construction projects. With its compact size and powerful capabilities, this excavator is a reliable companion that will help you get the job done quickly and effectively
1-Japan KUBOTA engine , 14.1kw, Tier III emission
2-China brand pump
3-China brand valves
4-EATON brand slewing motor
5-EATON brand driving motor
6-Open cabin(Canopy)
7-Hydraulic pilot servo operation system
8-Rubber track :230mm
9-With broken pipeline system
10-Bucket capacity: 0.1m³
11-With dozer blade
Detailed Photos
Product Parameters
| TRACK SYSTEM |
| Maximum Travel speed | 3.5km/h |
| Width of track shoe(Rubber &steel track) | 230mm |
| Number of track shoe per side(steel track only) | 38pcs |
| Number of upper roller per side | 0 |
| Number of bottom roller per side | 4 |
| PERFORMANCE PARAMETER |
| Standard Bucket capacity | 0.1m³ |
| Swing speed | 12rpm |
| Maximum Grade ability | 30° |
| Maximum Bucket digging force | 15.3KN |
| Maximum Arm digging force | 10.5KN |
| Hydraulic system pressure | 18Mpa |
| Machine weight | 2300kg |
| Boom length | 1850mm |
| Arm length | 1000mm |
| MACHINE SIZE |
| Overall dimension (L*W*H) | 4170mm*1300mm*2280mm |
| Axle base(Track length on ground) | 1230mm |
| Track gauge | 1070mm |
| Minimum Ground clearance | 230mm |
| Swing radius at tail | 1180mm |
| WORKING RANGE |
| Maximum Digging height | 3700mm |
| Maximum Dumping height | 2290mm |
| Maximum Digging depth | 2450mm |
| Maximum Vertical digging depth | 2160mm |
| Maximum Digging radius | 4370mm |
| Minimum swing radius | 2020mm |
| Maximum Lifting height of blade | 240mm |
| Maximum Cutting depth of blade | 310mm |
| Boom swing angle(Left/Right) | 70°/50° |
Packaging & Shipping
Company Profile
FAQ
1. How about your price?
Although our products are of excellent quality,but our prices are very favorable and competitive. Customer from all over the world to purchase our products, because our best price.
2. What's your payment?
Our Payment could be
(1) 100% T/T (2) 30% in advance, others before shipment.
(3)Advance, others letter of credit.
3. What is your payment method?
L/C, D/A, D/P, T/T, Western Union, MoneyGram
4. Could you special design and produce for you?
Sure, we have all kinds of professional engineers,
Could design and produce special product according to customer requested.
Such as: special Size, special control, or OEM, etc.
5. Do you looking for Agent?
Yes, we're looking for the agent all over the world, please contact us for further discussion.
>>
