Factory Price Hot Sale API 5dp S135 6-5/8 Drill Pipe

Product Description

API 5DP S135 6-5/8 drill pipe Product Description
Keywords: Seamless,SMLS,Electric Resistance Welded ,ERW,Drill Pipe,oil pipe Size: OD: 60.32mm ~ 168.28mm; WT: 7.11mm ~ 9.19mm; LENGTH: R1, R2, R3 Standard & Grade: API 5DP E 75/X 95/G 105/S 135 Ends: Beveled, Square Cut Delivery: Within 30 days and Depends on your order quantity Payment: TT, LC , OA , D/P Packing: Protection Caps in Both End, Waterproof Paper Wrapped, Two Tags Usage: For conveying gas, water and oil either in the oil or natural gas industries Drill Pipe: Drill pipe includes pipe body and tool joints(box and pin) welded together, used to connect drilling rig surface equipment and bottom equipment or bottom hole equipment. Drill pipe can bear heavy internal and external pressure, and twist, bend and vibration which can be used more than one time during oil or gas production.
Drill pipes are steel tube fitted with threaded ends called tool joints, which are commonly used in tension in the top part of the drill string to pump fluid and transmit torque to the bit.
Standard: Drill pipe
Grade: E75, X95, G105, S135 .
The wear-resistant belt of tool joint: Arnco 100XT, 200XT, 300XT, 400XT
Internal coating drill pipe: TK34, DPC, TC2000, TC3000
Usage: Mine blasting, water well drilling, geothermal wells drilling, fore poling, coal and nonferrous metal mining projects, etc.
Specification:
Dimension:

Size designation	Calculated weight	Tool joint designation	Calculated weight		grade	Wall thickness		Upset ends
in			1b/ft	Kg/m		in	mm
2 3/8	6.65	NC26	6.26	9.32	E.X.G.S	0.28	7.11	EU
2 7/8	10.4	NC31	9.72	14.48	E.X.G.S	0.362	9.19	EU
3 1/2	13.3	NC38	12.31	18.34	E.X.G.S	0.368	9.35	EU
3 1/2	15.5	NC38,NC40	14.63	21.79	E.X.G.S	0.449	11.4	EU
4	14	NC40,NC46	12.93	19.26	E.X.G.S	0.33	8.38	IU,EU
4 1/2	16.6	NC46,NC50	14.98	22.31	E.X.G.S	0.337	8.56	EU,IEU
4 1/2	20	NC46,NC50	18.69	27.84	E.X.G.S	0.43	10.92	EU,IEU
5	19.5	NC50,NC52	17.93	26.71	E.X.G.S	0.362	9.19	IEU
5	25.6	NC50,5 1/2FH	24.03	35.79	E.X.G.S	0.5	12.7	IEU
5 1/2	21.9	5 1/2FH	19.81	29.51	E.X.G.S	0.361	9.17	IEU
5 1/2	24.7	5 1/2FH	22.54	33.57	E.X.G.S	0.415	10.54	IEU
6 5/8	25.2	6 5/8FH	22.19	33	E.X.G.S	0.33	8.387	IEU
6 5/8	27.7	6 5/8FH	24.21	41	E.X.G.S	0.362	9.19	IEU

Standard: Chemical Composition(%):

Grade	Chemical composition
	P	S
E75	<0.015	<0.003
X95	<0.015	<0.003
G105	<0.015	<0.003
S135	<0.015	<0.003
Tool joint	<0.015	<0.003

Mechanical Properties:

Pipe body	Grade	Yield strength				Tensile strength		Elongation	Hardness		Full size charpy impact test(J)
		min		max		min					min
		Psi	MPa	Psi	MPa	Psi	MPa		HBW	HRC	Average	Single
	E75	75000	517	105000	724	100000	689	625000A0.2/U0.9	-	-	80	65
	X95	95000	655	125000	862	105000	724		-	-	80	65
	G105	105000	724	135000	931	115000	793		-	-	80	65
	S135	135000	931	165000	1138	145000	1000		-	-	80	65
Weld zone	Tool joint	120000	827.4	-	-	140000	965.3	=13%	=285	-	80	65
	E75	75000	517	-	-	100000	689		-	?37	40	27
	X95	88000	609	-	-	103000	712		-	?37	40	27
	G105	95000	655	-	-	105000	724		-	?37	40	27
	S135	105000	724	-	-	115000				?37	40	27

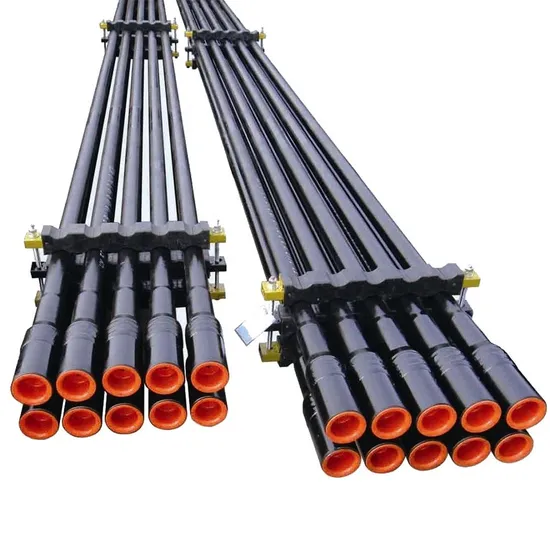

Detailed Photos
Product Process
API 5DP standard oilfiled drilling tools oil gas drill pipe for drilling rings with coating Authorized by ISO 9001, NS-1 and Russia GOST RTN . it is able to process drilling tools according to standard DS-1 under a full system of production design and quality control.. our drill pipes have been tested by the third party, such as China national petroleum pipe research insititue and Russia petroleum pipe quality control center, the quality is stable and reliable.
Manufacturing Technique

	Drill pipe, tool joint raw material The material adopts high-performance alloy steel according to USA API standard and strictly checked by chemical content, metallographic structure, geometric dimension, NDT tests etc to ensure the stable quality of the products.
Process of drill pipe body Pipe end is upsetted by USD National Oil Well equipment with 1250tons weight. heating treatment is process by oven-type automatic furnace, then straigtened by 6 rollers straigtening machine, whole courese hardness test and ultrasonic inspection.
	Tool joint process Tool joint is processd by 1500T gaint pressure forging machine to ensure the quality of joint for high compactness, cleanness, hard wear resistance, homogenization of excellent mechanical performance.
process of friction welding Adopts USA MTI equipment for friction welding, automatic computer control, heat treatment, grinding, magnetic particle inspection to guarantee high quality of the finish products.
	Process of hardbending Arnco, TCS TI, LW600 are available according to customer requirement. the finished hardbending processes with high hardness nd non-cracking character.
Process of internal coating Our internal coating varieties are LPC1000, LPC3000, LPC5000, LPC5000P etc. we can aslo be outsourced processing TK34, DPC, TC2000 series of internal coating.

Packaging & Shipping
Company Profile

Hunan Hengan Weiye Metal Products Co., LTD is subordinate to Hengan Weiye Steel Pipe Co., LTD. After more than 10 years of development, the company has become a leading enterprise in the industry, with more than ten thousand tons of stock, with processing bases in Guangzhou, Tianjin, Hubei and other provinces.
Main business: seamless steel pipe, fine drawing pipe, drill pipe special steel pipe, steel plate, galvanized products, stainless steel series, and production and processing. Under the support and care of friends and Allies from all walks of life, after years of development, the company's performance continues to expand, the annual sales has exceeded 150 million.
At present, it has become a special agent dealer of well-known domestic steel enterprises. Under the situation of fierce market competition, the company has the courage to open up and innovation. At present, the company provides steel projects all over the world.
FAQ
Q: Are you a manufacturer?
A: Yes , we are a manufacturer, We have own factory, trading is also our main business
Q:Can we visit your factory ?
A:Warmly welcome once we have your schedule we will pick you up .
Q: Do you have quality control?
A: Yes, we have gained API, ISO authentication.
Q: Can you arrange the shipment?
A: Sure, we have permanent freight forwarder who can gain the best price from most ship company and offer professional service.
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 25-45 days if the goods are not in stock, it is according to quantity.
Q:Can we get the some samples?Any charges?
A:Yes,you can get available samples in our stock.Free for real samples,but customers need to pay the freight cost.
