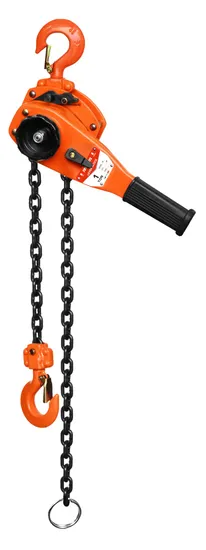

Toyo-Intl Vl Type 0.5 Ton-9 Ton Lever Block

Product Description

Product Description
1.All steel construction.
2.Compact design
3.Double pawl braking system.
4.Fully forged hooks.
5.Long-lasting powder coating protection.
6.High standard G80 load chain (black or galvanized).

Product Parameters

SPECIFICATION
Model	Capacity(T)	Standard Lift(M)	Running Test(T)	Effort Required To Lift Max Load(N)	Load Chain Diameter(MM)	Net Weight(KG)	Packing Size(CM)
VL-0.5T	0.5	1.5	0.75	330	5	3.5	33.5*12.5*9
VL-0.75T	0.75	1.5	1.125	230	6.3	6.6	34*12*17
VL-1T	1	1.5	1.5	250	6.3	6.6	34*12*17
VL-1.5T	1.5	1.5	12.25	295	7.1	11	45*16*18
VL-2T	2	1.5	3	345	7.1	11	15*16*18
VT-3T	3	1.5	4.5	414	9	17	47*20*21
VT-6T	5	1.5	9	430	9	27.5	47*20*21
VT-9T	10	1.5	13.5	430	9	47	62*48.5*26

Company Profile
TIANJIN TOYO LIFTING MACHINE MANUFACTURE CO., LTD.
Which is located in beautiful Tianjin city, specializes in designing and manufacturing excellent quality of manual chain hoist, lever hoist.electric chain hoist, lifting clamp, rigging hardware, and various high tensile sling. we get a good reputation from our usual customers as our good quality, Japan technology competitive price.
All products,fittings and assemblies are factory-tested and inspected according to stringent international standards. Our QC department promises that every materials are inspected before assembling and 100% products are tested and inspected before delivery. All our test machine is from Japan high quality equipment.
We have a strong R&D Design ability to ensure that you are getting the latest products produced with the most advanced and cost-effective technologies.Our products have been exported to many countries and regions throughout the world in Europe North America, South America,Australia. South-eastern Asia, South Africa etc.Our products get 1SO,CE, GS certified. All products supplied and installed are warranted against defects in merchantable quality and workmanship.

---
