Hot Sale Auto Coner 24 Spindles New Model Intelligent Vcro Plus Auto-Winder with Tray for Cotton Yarn Spinning

Product Description

Hot Sale Auto Coner 24 Spindles New Model Intelligent Vcro Plus Auto-Winder with Tray for Cotton Yarn Spinning
24h Online Customer Service
Product Description

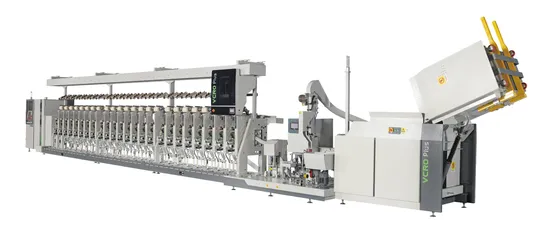

Product Description This model is a new upgraded product of VCRO auto-winder. It adopts a new industrial design, with better yarn quality, higher production efficiency, and easier maintenance.
Superior Package Quality ★Precise package yarn defect sucking system
★Tension real-time detection closed-loop control system
★Precise package yarn length fixing system
★Bobbin anti- girdle yarn system
★New type of grid tension mechanism
★Newly designed package back holding mechanism
★Double positioning for package suction nozzle
High efficiency
★New bobbin changing mechanism
★single spindle balloon tracking system
★Stable and reliable conveyor system
★Differential yarn head picking mechanism
★High speed bobbin plug device
★High quality and high efficient yam head picking mechanism
★Flexible bobbin treatment system
Super Intelligent
★Smart control system
★High efficient and smart doffing trolley
★Newly designed intelligent electrical control system

MAIN SPECIFICATIONS
Machine type	VCRO PLUS	VCRO-double magazine	Auto-winder multi-linked with spinning frame
Spindles	6-72 spindles	6-72 spindles	6-72 spindle and increament in 2 spindles
Type	Spindle, single sided arrangement, left hand or right hand machine
Application	Cotton , wool, linen,synthetic fiber or blended, or plied yarn Count of yarn processed Ne6 to the highest
Count of yarn	processed Ne6 to the highest
Working negative pressure	speed adjusted by inverter
Drum driven	driven by DC brushless motor
Anti-pattering	To achieve through full control of motor speed
Package holder	back bow style
pattern of bobbin	processing single plug, double head picking single/doublr plug,	double/triple head picking	Single/double head picking
Tube dimension length	180-230mm, diameter32-43mm
Winding speed	400-2200m/min,stepless speed regulation
Magazine	single magazine	double magazine
Jointing type	Mesdan798Q Jointair splicer, Aquasplicer
Yarn clearer type	USTER/LOEPFE Electronic yarn clearer
Yarn head finding	50 heads/min
Bobbins storage	2 bobbins
Package storage	4 packages
Bobbin delivery speed	25m/min
Channels quantity	3 for bobbin delivery and 2 for return		3 for bobbin delivery and 2 for return
Power installed	35.95KW(72spindles)	38.05kW(72spindles)	35.35kW(72spindles)
Cone conicity	3°30',	4°20',	5°57'
Overall dimension	31080x1680x2780(72spindles)	30890x2580x2780(72spindles)	26480x6154x2780(60spindles)

---
