Farm Cultivators Agricultural Products Farming Tilling Tools 178f Diesel Powered Micro Tiller

Product Description

Product Description

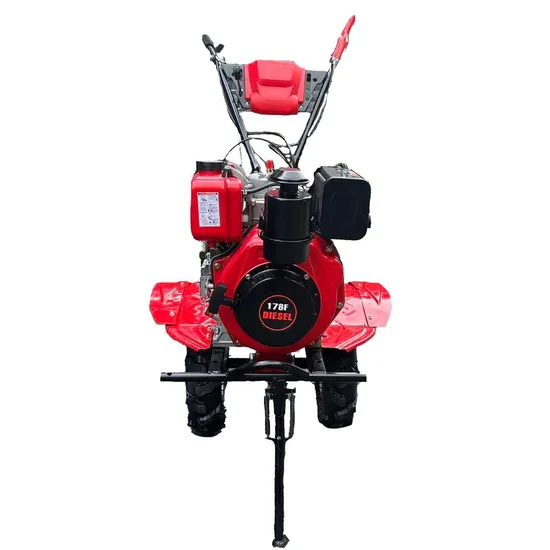

Diesel Mini Tiller / Diesel small Cultivator
Whether you're a professional farmer or a gardening enthusiast, the mini tiller is an excellent choice for your soil preparation needs.This is a powerful and reliable tiller designed for heavy-duty tilling and cultivation tasks. With its 6.3kW (8.4HP) diesel engine, this cultivator provides competitive performance and exceptional torque, making it suitable for challenging soil conditions. It features multiple adjustable tilling depths and widths, allowing you to customize the tilling operations according to your requirements. The tiller is equipped with sturdy tines that efficiently break up the soil, preparing it for planting or other gardening activities. With its durable construction and easy maneuverability, it offers long-lasting performance and convenient
operation.
Detailed Photos

You can choose our designed products or customize the configuration.
https://chima2006.en.made-in-china.com/contact-info.html
Product Parameters

Engine Name	Diesel
Engine Model	D173F (5HP)	D178FA(E) (7HP)	D186FA(E) (10HP)	D188FA(E) (12HP)
Engine Type	1-cylinder, 4-stroke ,air-cooled
Power	3.8kw	4.0kw	6.3kw	7.5kw
Speed	3600r/min	3600r/min	3600r/min	3600r/min
Starting mode	Recoil /Eletric
Fule volume	2.5L	3.5L	5.5L	5.5L
Oil capacity	0.75L	1.1L	1.6L	1.6L
Clutsh style	Plate cultch
Type of drive	Gear drive
Gear shifting	2 0 1 R
Cultivation width	60-110cm	70-110	70-110cm	70-110cm
Cultivation depth	10-25cm	10-25cm	10-25cm	10-25cm
Task speed	1-1.6km/h	1-1.6km/h	1-1.6km/h	1-1.6km/h
Productivity	0.035-0.08hm2/h	0.05-0.1hm2/h	0.05-0.1hm2/h	0.05-0.1hm2/h
Oil consumption	12-15kg/hm2	10-15kg/hm2	10-15kg/hm2	10-15kg/hm2
N.W.	80kg	115kg	125kg	125kg
G.W.	85kg	120kg	130kg	130kg
MEAS	84*51*65 cm	91*56*84 cm	91*56*84 cm	91*56*84 cm

Company Profile
Our company due to the increase in orders,in order to meet customer needs,the company will spend 300 million yuan to build a new factory in Dazu,Chongqing at the end of 2023 to expand the production line,including engine,tillers,snow blower,generator,water pump,lawn mower.
We will move into the new factory in June 2024.Welcome to visit and inspect
Certifications
For quality assurance,Chima has been certificated by lSO14001-2004,ISO9001-2008,andcarrying CE certification.Our product has gaind the Long-time business relations with many clients in
the maker ofAsia,urope, South America and Middle East.
FAQ
Q1: Can the engine of the 8.4HP power tiller be touched after use?
A: Hi, there! Thanks so much for your question. The temperature of the muffler of the engine is very high, it is strictly forbidden to touch it by hand. When covering the machine, the high temperature part of the muffler should be completely cooled before it is carried out. Thanks!
Q2: Is this competitive cultivator easy to maintain?
A: Hi, there! Thanks for your question. When we use the competitive mini tiller, we often cause the diesel tiller cultivator to not work normally for some reasons, then we can refer to the maintenance manual or find a local maintenance master, you can also contact us.Thanks.
Q3: How to check and troubleshoot when the mini cultivator engine is not running?
A: Hi, there! Thanks for your question. 1, check whether the fuel is used up, if so, to replenish the fuel in time.
2. Check whether the starting sequence of the engine is correct and whether the starting pull plate can be used normally.
3, check whether the engine compression is good, the elimination method is not to pull the decompression joystick, with the hand rotation to check the recoil force.
4, check whether the fuel injection is not out, the elimination method is to check whether the fuel injection nozzle is stuck, whether the fuel pipeline is air.Thanks!

Q4: Could we have our own logo and artwork?
A: Sure. We can make it according to your request. The MOQ is with your logo.
Q5: How do you control the products quality?
A: We have the strict goods inspection process and test at random before shipment.
Q6: How can we guarantee quality?
A: Quality is priority. Our factory has gained ISO9001 quality system, we always attach great importance to quality controlling from the beginning to the end. Always a pre-production sample testing before mass production, and always final Inspection before shipment.

---
