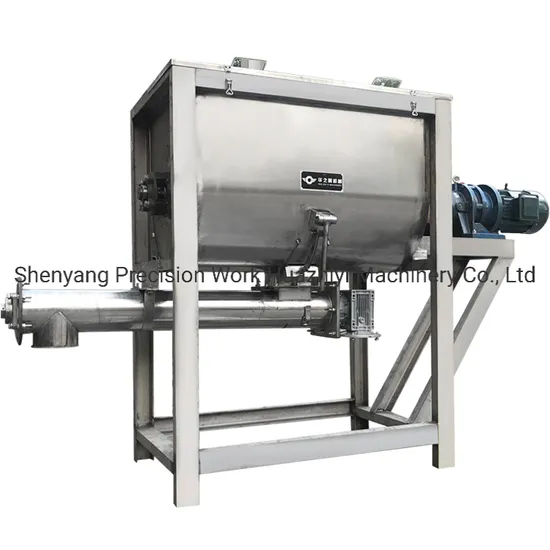

Blender Stainless Steel Horizontal Particles Powder Making Machine Ribbon Mixer

Product Description

The price is for reference only. The actual price is subject to the communication between the two parties!!!

Product name	horizontal mixer
Model	500kg(customized)
Materials	stainless steel

Blender stainless steel horizontal particles Powder making machine Ribbon mixer
The horizontal mixer is used to turn the material within the cylinder under the action of the internal and external spiral belts on the mixing shaft. The inner spiral belt pushes the material from the middle to the two sides, the outer spiral belt pushes the material from the two sides to the center, and the mixed material moves and changes along the radial direction under the rotation of the spiral belt, thus forming a convection circulation. Due to the mixing of the above movement, the material is mixed evenly and quickly in a short time. The shaft seals at both ends are sealed with special seals, powder and liquid are free of leakage, and the replacement cost of sealing consumables is low and convenient, Therefore, it is a high-efficiency mixing equipment with wide use, strong adaptability and good effect.
Powder horizontal Customizable heating function Ribbon mixer
Product features
1. Large loading coefficient and small equipment area.
2. Under the feasibility factor, the mixing effect of the horizontal spiral belt mixer is not affected by the size and density of particles, and it also has a good mixing effect for sticky materials.
3. The stable mixing process reduces the damage to fragile materials, and the addition of flying knife structure also plays a crushing role.
4. The horizontal structure has a lower fuselage height and is easy to install.
5. In the mixing structure, the positive and negative rotating screw bars are installed on the same horizontal axis to form a low power level environment.
6. The horizontal screw belt mixer is mainly used for the production of putty powder, and can also be used as an entry-level thermal insulation mortar mixer. Dry mixer powder mixer machine horizontal ribbon mixer
The inside of this machine is single-shaft double-screw belt mixing material, which can make the material fully mixed and improve the mixing uniformity. This machine has the characteristics of high strength, compact structure, good appearance quality, corrosion resistance, wear resistance, low energy consumption, long service life, convenient operation and maintenance, etc. In order to mix materials quickly, the internal and external spiral belts will move the materials in a large range under the movement of the spiral belt of the mixing shaft. The internal spiral belt will move the materials to both sides, and the external spiral belt will move the materials from both sides to the inside to mix the materials back and forth. The other part of the materials will be driven by the spiral belt and move along the axial and radial direction, thus forming a convection circulation.
Customizable heating function Ribbon mixer Horizontal seasoning stainless steel mixer 300kg
It can evenly mix salt, feed, grain and other powder or granular materials, with high efficiency, good mixing quality, short unloading time, and less residue.
Shenyang Huazhiyi Machinery is a manufacturer that develops and
produces various general equipment.
The company's main products are:
mixers, packaging machines, filling machines, conveyors, reactors, dehydrators, crushers, etc.
Our philosophy is:
integrity-based, strength first, and serve customers wholeheartedly.
RAQ
Q. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.Other payment terms can also be negotiated.
Q. How about your delivery time?
A: Generally, it will take 10 to 45 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q. Can you produce according to the samples?
A: Yes, we can produce molde by your samples or technical
drawings.
Q. Do you test all your machines before delivery?
A: Yes, we have 100% tested before delivery.

---
