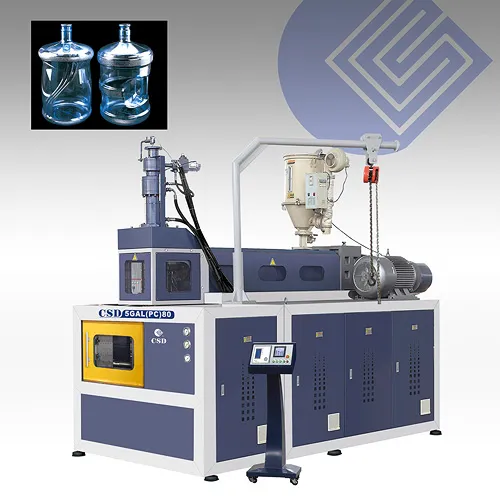

CE Approved with PC 5-Gallon Blow Molding Machine (CSD-5GAL(PC)80)

Product Description

Automativ Blow Molding Machine Model CSD -5C(PC)
Advantage: 1.Mechanical motion controlled by hydraulic system and supervised by remote-controlled computer ensure machine steadable running without noise.

2.Equipped with casting aluminum heater, temperature controlled by computer.

3.PLC program controls the machine operation swiftly and accurately.

4.Parion controller equipped on die head guarantees the wall thickness of bottle to be even.

5.Srew rotating speed can be adjusted by inverter in a wide range.

6.Special blowing design minimizes the wasted material.

7.With European Community Safety Attestation CE certificate.

CSD-5C(PC) TECHNICAL DATA
Item			Unit	CSD-5C75(PC)TECH.DATA
Max.Volume of Product			GAL	5-GAL
Production Capacity	Without Handle		pcs/h	70-75
	With Handle		pcs/h	60-65
Neck Size of Product			mm	<200
Useful Area of Mould Plate			mm	420×600
Max.Mould Thickness			mm	400
Min.Mould Thickness			mm	320
Mould Stroke			mm	200×2
Clamping Force			kn	30
Blowing Air Pressure			Mpa	0.8
Power of Main Blower			kw	30
			A	60
Power of Heating			kw	20
			A	30
Power of Mould Heating			kw	8
			A	18
Weight of Main Blower			kg	6000
Measurement of Main Blower			mm	3200×1800×3000
Low Pressure Air Compressor			kw	7.5
			kg	12.5
			mm	1860×740×1400
			kg	340
Hopper Dryer			kw	3.9
			mm	970×660×1020
			kg/h	50
Auto-Loader			kw	1.1
			m	800×600×560
			kg/h	300

CSD-P Series Preform Injection Molding Machine
Features:
1,;Adopting integral casting European standard T slot mold plate, loading and unloading molds more easily.;
2,Applying PET specialized screw, increases PET plasticizing ability and yield.
3.Enlarged optimal design of injection system increases the production capacity over 20%.
4.Independent oil circule control for mold openning and mold ejection make these two action synchronous, shorten the cycle time of production by 1.5 seconds.
5.Applying European imported KEBA industrial computor with wiindows control system, provides Humanization technological setting and 500 groups parameter storage.
Configuration:
1;European imported KEBA Computer
2,;World famous brand hydraulic components
3,;World famous brand main electric components
4,.World famous brand seal components
About us
Changshengda Machinery (Zhejiang) Co. Ltd. (CSD) was established in 1992 with a registered capital of $5.2 million USD from Australian sole-ownership enterprises, and boasts a 72, 000 square meter factory zone. The company specializes in research and development in environmental protection, high-precision energy saving injection molding machines for medical and food industry, PET two stage automatic injection stretch blow molding machines, automatic extrusion blow molding machines and various types of plastic moulds and other hi-tech products. Its produce a wide range of goods such as food and beverages packing, plastic goods, pharmaceuticals packing, cleaning products, auto parts, toiletries, home appliances, construction materials, electronics, and so on. CSD's products achieved exceptional sales in South East Asia, the Americas, Eastern Europe, the Middle East, Europe and Africa. Currently the company is working in conjunction with ten of China's most famous brands. CSD's products have gained recognition both inside and outside China as a highly precise, energy-efficient and incredibly streamlined manufacturing company. CSD boasts a standardized and streamlined production and operations system which has received ISO9001 quality authentication. The company has also been giving the following honorary titles: "Provincial Hi-tech Enterprise R&D Centre", "Zhejiang Province Hi-tech Enterprise", "Zhejiang patent demonstration enterprise", among others. CSD's business ethic primarily focuses on three aspects - one, acting in good faith at all times; Two, making science and technology a priority; And three, thriving on producing superior quality products. The company makes use of advanced design concepts, sophisticated processing equipment and incredibly precise manufacturing methods to meet the needs of high-end clients both inside and outside China. CSD's products are continuously being innovated in a bib to ensure product quality and secure a reputable corporate image. The company also promotes the service commitment of one station service. The establishment of CSD after-sales centers all around the world not only demonstrates the company's dedication to thorough after-sales support, but also shows a commitment to providing excellent goods at reasonable prices to both new and existing clients. CSD's employees are driven towards pluralism, standardization and the industrialized development of new technologies, and the company is committed to being an industry leader in plastic goods manufacturing.

---
