Used Crane Crawler Crane Xgc16000 1250t Main Boom 120m Luffing Jib 48m

Product Description

Overview Essential details Feature: TRUCK CRANE
Showroom Location: Brazil, Indonesia, Russia, Thailand, Morocco, Kenya, South Korea, Chile, Colombia, Algeria, Sri Lanka, Bangladesh, Tajikistan
Condition: New
Application: Construction
Rated Loading Capacity: 1250 ton
Rated Lifting Moment: 15510t.m
Max. Lifting Height: 108 M
Place of Origin: Jiangsu, China
Brand Name: SINOMADA
Warranty: 1 Year
Hydraulic Cylinder Brand: TOP BRAND
Hydraulic Pump Brand: TOP BRAND
Hydraulic Valve Brand: TOP BRAND
Engine Brand: TOP BRAND
UNIQUE SELLING POINT: COMPETITIVE PRICE
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Marketing Type: New Product 2020
Warranty of core components: 1 Year
Core Components: Pressure vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC
Weight (KG): 850000 kg
Model: XGC16000
Max. rated lifting capacity: 1250 TON
Product name: Crawler Truck Supply Ability Supply Ability
100 Set/Sets per Month Packaging & delivery Packaging Details
Nude package/Ro-Ro/Bulk shipment/Suitable container
Port
Shanghai/Qingdao/Lianyungang
Lead time:

Quantity(sets)	1 - 1	>1
Lead time (days)	7	To be negotiated

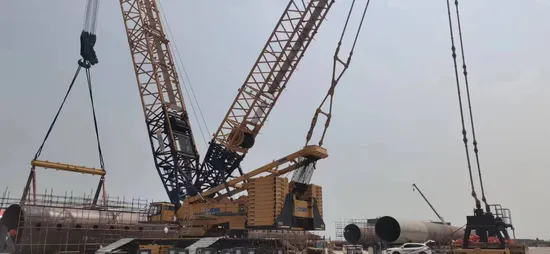

Product parameters Construction Crane 1250 ton Crawler Crane XGC16000 Lattice Boom Crane During the development process of XGC16000, multiple key technologies has been inherited or overcome, laying firm technical foundation for further development of larger tonnage products. It breaks the super large crawler crane monopoly processed by foreign manufactures in china's large constriction equipment market, and accelerates the technical updating of our engineering crane industry. Performance Characteristics: * Heavy boom length in standard working condition is 96m, light boom length 114m, and superlift tower jib length 108m. * Engine water radiator and intercooler have independent intelligent control system, can respectively control different strength of heat radiation according to different environment,reduced engine power loss, with energy-saving and high work efficiency. * Split-type overall structure, small transport size, except for lower basic machine, transport width 3.538m, other parts transport width smaller than 3.5m. * Adjustable built-in boom transport device, winch and pulley stored in the winch for transport, reduced transport size, avoided disassembly and saved assembly time.

Item	Parameter	Unit
Max. rated lifting load of main boom	1250	t
Max. rated lifting capacity for luffing jib	477	t
Max. lifting load moment	15510	t.m
Max. rated lifting capacity for tower jib	477	t
Max. rated lifting capacity for boom single top	45	t
Max. rated lifting capacity for special jib	629	t
Boom length	30~120( heavy type)/ 48~150( light type)	m
Boom luffing angle	-3~85	°
Tower jib length	30~108	m
Max. size of single unit for transport (L×W×H)	15.5×3.4×3.12	m
Special jib length	18	m
Max. single line speed for hoist mechanism	130	m/min
Max. single line speed for boom luffing mechanism	2×53	m/min
Max. slewing speed	0.9	m/min
Max. travel speed	0.8	km/h
Grade ability	30	%
Mean ground pressure	0.156	MPa
Max. single line speed for tower jib luffing mechanism	125	m/min
Max. single line speed for superlift luffing	130	m/min
Model	QSK23	-
Engine power	641	kW
Emission	EU II	-
Crane overall mass	850(main hook, 30m boom)	t
Max. weight of single unit for transport	59	t
