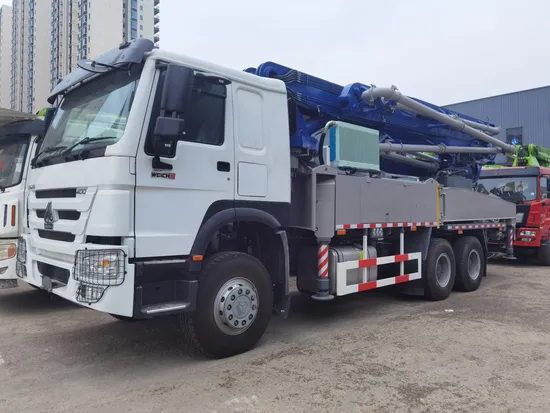

40m 45m Construction Truck-Mounted Concrete Beton Pump with Mixer for Sale

Product Description

Truck Boom Pump with Mixer Professional manufacturer in Changsha, Hunan
20 years+ Production & Export Experience
Solid technical foundation and independent innovation to ensure product quality
Well-know brand components from Germany, Italy, Japan, France etc. strive for the best combination of mechanical parts
18m, 25m, 26m, 28m, 30m, 33m, 35m, 37m, 39m, 40m, 45m, 50m etc.
Technical parameters

MODEL	UNIT	26M	30M	35M	37M	45M
Overall length	mm	8600	11150	11500	11840	11900
Overall width	mm	2500	2500	2550	2550	2550
Overall height	mm	3500	3980	4000	4000	4300
Total weight	kgs	18000	22800	32000	32000	38000
Boom form		5RZ	5RZ	5RZ	5RZ	6RZ
End hose length	m	3	3	3	3	3
First arm length/ angle	mm/ o	5850/ 89	7550/ 89	7000/ 90	7200/ 90	9430/ 90
Second arm length/ angle	mm/ o	5800/ 180	6290/ 180	5495/ 180	6000/ 180	7284/ 180
Third arm length/ angle	mm/ o	5500/ 180	6295/ 180	5350/ 180	5700/180	6900/ 180
Fourth arm length/ angle	mm/ o	2000/ 270	3450/ 270	5850/ 245	6630/ 235	8348/ 245
Fifth arm length/ angle	mm/ o	2800/ 90	2856/ 90	5550/ 180	6636/ 220	4100/ 225
Sixth arm length/ angle	mm/ o	/	/	/	/	4274/ 90
Hydraulic system type		Open type system	Open type system	Open type system	Open type system	Open type system
Distribution valve form		S tube valve	S tube valve	S tube valve	S tube valve	S tube valve
Theory output capacity	m3/h	60	60	80	80	90
Maximum aggregate size	mm	40	40	40	40	40
Theory pumping pressure	Mpa	10	10	10	10	10
Hopper capacity	L	600	600	600	600	600
Recommended concrete slump	mm	140-230	140-230	140-230	140-230	140-230
Hydraulic oil cooling		Air cooling	Air cooling	Air cooling	Air cooling	Air cooling
Mixer model		JS 500	JS 500	JS 500	JS 500	JS 500
Discharge capacity	L	500	500	500	500	500
Feed capacity	L	800	800	800	800	800
Theory mixing capacity	m 3/h	30	30	30	30	30

Truck boom pump with mixer in other lengths can also be produced according to your needs.
Chassis, equipment, components etc. all can be further negotiated according to your requirements.
FAQ
1.Q:Are you factory or trading company?
A: We are factory in Changsha, Hunan.
2.Q: What is your main oil pump brand?
A: Germany Rexroth or Korea Kawasaki.
3.Q: The motor power is the electrical or diesel?
A: Both type. The power of electric type apply to 380V 50Hz.
4.Q: How about guarantee period?
A: 1 year for structure parts. We strictly follow the warranty terms.
5.Q: What is the payment terms?
A: 30% advance payment and the rest should be paid before delivery by T/T or by L/C.
6.Q: Maintenance and After-sales service?
A: We provide video technical support, and we can send technicians to your country if necessary. We have local after service team in some areas.

---
