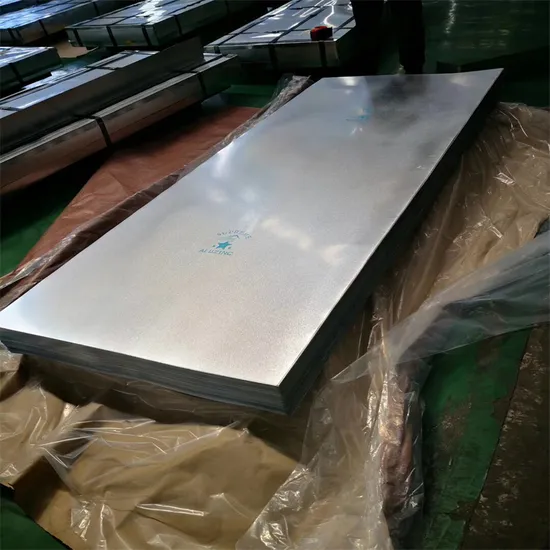

Chile Construction Zincalum Steel Plain Sheet 0.35*3mt Zin Alum Iron Smooth Zinc Plate

Product Description

1. Aluzinc Steel Plate description:
Aluzinc Steel Plate is a kind of coated steel coil/sheet. With the cold rolled steel of different strength and thickness
as substrate, it is produced through applying Al-Zn coat on both faces by hot DIP process. In its coating, Al accounts
for about 55%, Si 1.6%, while the remaining is Zinc. Aluzinc Steel Plate enjoys both the physical protective feature
and durability of Al and the electrochemical protective property of Zn. Galvalume roofing sheet surface has bright
silver color and regular embossed-like figure, which are highly decorative.
2. Aluzinc Steel Plate main usage scope
1)Architecture roofs and outside walls of civilian and industrial buildings, garage doors, fencings and window blinds
2) Appliances industry outer clad sheets for washing machine, refrigerator, television, air conditioner and ventilation
system, explosion-proof strip, solar water heater and appliance parts
3) Auto industry muffler, heat shields of exhaust pipe and catalytic converter, auto parts & accessories under the frame,
signboard in highway
4)Industrial instruments electric control cabinet, industrial refrigeration equipment, automatic vending machine
3. Aluzinc Steel Plate packing:
Each aluzinc steel coil tube wrapped by plastic film and waterproof paper, one steel strip strapping on the coil circumference.
3-5 coils tube packed eye vertical on wood pallet, and strongly strapped by edge protection, and at least 4 steel straps through
coil eye. Coil tube packed eye to sky on wood pallet
4. Aluzinc Steel Plate parameters:
1. Thickness: 0.19-2.0mm
2. Width: 100-1250mm
3. Inner Diameter: 508mm
4. Weight of Steel Coil: 3-5MT
5. Coating Type: Al-Zn Alloy
6. Available Dipped Layer: 60-275G/M2
7. Surface Finish Structure: Normal Spangle & Small Spangle & Zero Spangle
8. Available Surface Treatment: Passivating & Oiling & AFP & Filming

Product	Aluzinc Steel Plate
Material Grade	SGCC / SGCH / DX51D+AZ, etc
Thickness	0.13-1.5mm
Width	600-1500mm
Tolerance	Thickness: +/-0.02mm , Width:+/-2mm
Zinc-coating	Al-Z40-275g/m2
Technique	Raw material: Hot rolled steel coil --> Cold rolled_>hot dipped galvalume
Surface	Dried, Chromated, Unoiled
Spangle	Regular spangle , small spangle, zero spangle
ID	508MM
Coil weight	3-5 tons
Export package	Cardboard inner sleeves, Waterproof paper, galvanized steel covered and steel strip packed

---
