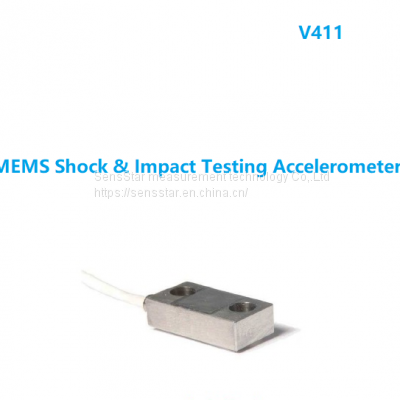

V411 Shock & Impact Testing Accelerometer 100K/2000K Grange

Product Details

Product Description

Product Description
V411 Shock & Impact Testing Accelerometer 100K/2000K GrangeV411 Shock & Impact Testing Accelerometer:
Dynamic Sensitivity, typical, 25°C.................................................... 1.5μV/g
Acceleration range ........................................................... 100,000 or 200,000g peak
Amplitude nonlinearity....................................................... 2%
Frequency response: ±2 dB................................................................................. 0 - 50,000 Hz
Resonance frequency....................................................... 300 kHz
Transverse sensitivity, max............................................... 5% of axial
Temperature response: –40°C................................................................................. –10%
+85°C................................................................................. +10%
Electrical Power voltage ………………………................................... 2 - 10 VDC
Input impedance…….......................................................... 3000~6000 Ω
Output impedance……....................................................... 3000~6000 Ω
Bias output voltage............................................................. ±100mV
Insulation(@100V).............................................................. >100Mohm
Environmental Temperature range............................................................. –50 to 120°C
Shock limit.......................................................................... 200,000 g peak
Sealing ............................................................................... Hermetic
Physical Sensing element design..................................................... MEMS
Weight................................................................................ 2 grams
Case material..................................................................... Titanium
Mounting............................................................................ Ø2.1 X 2
Accessories :
M2 mounting screw (or customers specified)
Calibration certificate

---
