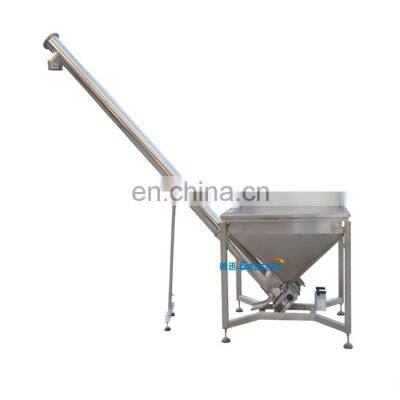

Round Hopper powder Auger Feeder / Screw Feeder / Screw Conveyor

Product Description

Product Description
Round Hopper powder Auger Feeder / Screw Feeder / Screw ConveyorProduct Description
It is used to convey and stir materials of powder, granular or small block in industry, medicine, food and environment protection industries and can control the quantity of flow of materials by adjusting rotate speed.
The product can feed materials to the next working procedure evenly, in the drive unit the electromotor drives reducer,pass on spiral axis by coupling,under the action of spiral blade the materials were outputted evenly while the materials go into inletting.
Main features:
• Two motors used for feeding and vibrating, separately controlled
• Product with vibrator to make material to be flowing easily
• SS304 structure,inner auger fixed or unloading easily without tools
• Reversible, dismountable auger and discharge gate insure easy cleaning
• Standard model with transparent plastic cover to avoid dust falling into hopper,
stainless steel cover for option
• Rotary base or fixed base for option
• Round hopper or square hopper can be optional
• Could add a feed rate control box to adjust speed
• Less malfunction rate ,long time using life
The advantages of the machine
1. Inexpensive to purchase, easy to install
2. Simple to operate, virtually maintenance free
3. Fast & simple to clean, quickly disassembled
4. Screw grain auger conveyor will not separate blends
5. Dust tight, contamination free
6. Stationery or portable designs
7. Worked with packaging machine for feeding variety powdery products.
8. Two motors used for screw feeding and hopper vibrating,separately control.
Technical Specifications:

Model		DS-SE-21	DS-SE-22	DS-SE-23	DS-SE-24	DS-SE-25	DS-SE-26
Charging capacity		2 m3/h	3 m3/h	5 m3/h	7 m3/h	8 m3/h	12 m3/h
Total power		0.78kw	0.78kw	1.53kw	2.23KW	3.03KW	4.03KW
Diameter of pipe		Φ102mm	Φ114mm	φ141mm	φ159mm	Φ168mm	Φ219mm
Hopper volume		100L	200L	200L	200L	200L	200L
Total weight		100kg	130kg	170kg	200kg	220kg	270kg
Supply power		3 phase 208-415V 50-60Hz
Charging angle		Standard 450 ,300 and 600 are also available
Charging height		Standard 1.8 meters,1-5 meters could be designed and manufactured
Remark		Other charging capacity could be designed and manufactured

Match with Vertical packing machine:
Detailed Images:
Application
It is suitable for the fluidic or low-fluidity materials, like milk powder, Albumen powder, rice powder, coffee powder, solid drink, condiment, white sugar, dextrose, food additive, fodder, pharmaceuticals, agriculture pesticide, and so on.
Packaging & Shipping
Packaging:
1> All our machines will be packed according to export standard, solid fumigation wooden cases or solid non original wood package, all guarantee the safety of machines and avoid damage during transportation
2> We pack our machines integrally, so no need to install while receiving, connect the electricity and working, very convenient.
Shipping:
Upon receipt of payment , delivery date will be in 20-35 working days,
By Air, by Sea or by Express (DHL,UPS,TNT,EMS etc)
Shipment cost will depend on destination, shipment way and weight of the goods.
Company Information
Dession is a leading manufacturer of Rotary pillow packaging macine, Vertical powder / granules / liquid / Sauce packaging machine, Automatic Feeding line, flowing packing machine and supporting facilities since 2005.
Dession has successfully developed more than 80 kinds of packaging machines and related equipment, widely suitable for food, medicine, chemicals, Industry accessories, hardware and so on.
