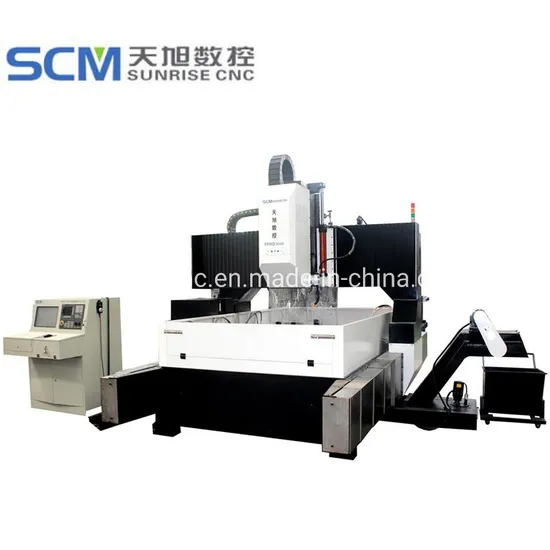

CNC High Speed Drilling Machine for Plate

Product Description

Product Feature: CNC slide way drilling spindle (Z axis) with work piece of stroke is pre-set, realized auto switch. It can drill not only through-hole, but also blind-hole with high efficiency, simple-structure, low-cost maintenance, easy operation etc. There are 12 hydraulic clamps & T slots for fixing workpieces, easy to operate, also save time, improve production efficiency. This machine have three CNC axis: gantry moving direction (x-axis);drilling head moving direction (y-axis); Spindle feeding direction (z axis). Machine equip each axis with linear guide and ball screw which drived by high precision servo motor. Machine have scrap cleaner which collect iron scraps and cutting liquid. The machine equipped with automatic lubrication system for linear guides and ball screws. Machine adopts SIEMENS 808D system, also equip with computer for drawing and workpiece program processing, easy to operate. The configuration of the machine, like ball screws, linear guides, main electrical parts, servo motors, inverter, etc., all famous brands. Specifications:

Model	TPHD4016
Max work piece size (L×W)	4000x1600mm plate or Φ1600mm flange
Thickness of work piece	6--120mm
Drill unit type	sliding table, servo control
Drill head quantity	One and ATC (8 pics tools)
Spindle motor power	22KW
Max drill diameter	Φ50mm
Taper hole of spindle	BT50
Spindle speed	30~3000r/min
Spindle vertical stoke (Z axis)	300mm
Servo motor power of X axis	2.0 kW
Servo motor power of Y axis	1. 5 kW
Servo motor power of Z axis	2.0 kW
Motor power of scrap cleaner	0.75 kW
Clamping type	12 Hydraulic clams and T-slot
Electric control type	SIEMENS 808D
CNC axis quantity	3
Position precision	±0.08mm
With function of CAD/CAM automatic generation
With function of break point memory (Restart production easily after power off)
Overall size	About 6900x3900x3200mm
Weight	About 16t

Main components:

No.	Name	Model	Brand
1	CNC system	808D	Germany SIEMENS
2	servo motor+ servo driver	2 Kw	Germany SIEMENS
3	servo motor+ servo driver	1.5 Kw
4	motor of spindle	22Kw	CTB
5	transducer of spindle	22Kw	CTB
6	ow-voltage apparatus		Germany SIEMENS
7	ball screw	all	Taiwan HIWIN
8	linear guide	all	Taiwan HIWIN
9	Hydraulic valves		Italy ATOS

Spare parts list:

No.	Name	Model	Qty.	Remark
1	Travel switch		1
2	Drill handle	BT50	1
3	Drill pole	40	1
4	Blade		4
5	Drill handle	#4	1
6	Drills	50	1 for each
7	Pressing plate		4
8	Pressing bolt	M20*300	8
9	Pressing nut	M20	12
10	T blcok		8
11	O ring	50×3.1,93×3.5	1 for each
12	combination seal washer	10,14	1 for each
13	J type dust ring	28	1
14	Ladder seal ring	Sd0280	1
15	YX type ring	D28	1
16	Slip ring	HD0500	1
17	Lip seal	FB65×85	1
18	Inner hexagon spanner		1 set
19	Adjustable spanner		1
20	Spanner 17-19		1
21	Spanner for quick change drill		1
22	Standby paint		2 pails
23	Operation manual		2 sets

---
