Changlin Hot Sale 25ton Hydraulic Crawler Excavator

Product Description

Product Description

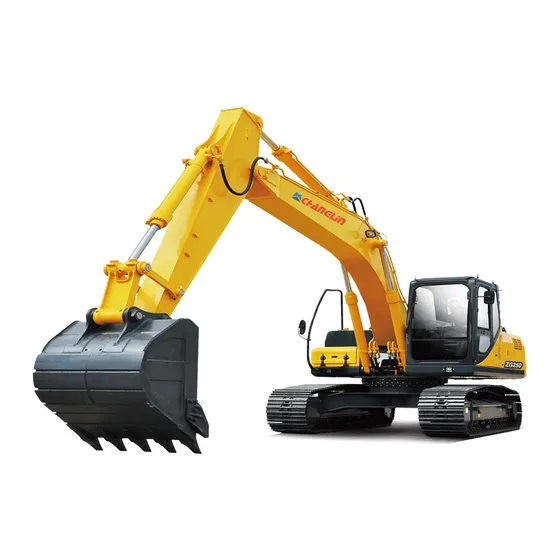

ZG250 25 ton excavator
CHANGLIN ZG250 Equipped with top brand engine, strong power, high efficiency, energy saving, reliable and durable; advanced negative flow hydraulic system, comfortable operation, high operating efficiency, excellent cost performance; full power control, four power modes to adapt to different working conditions; stepper motor accurately controls the throttle , Significantly reduce fuel consumption; full 3D modeling and finite element analysis technology to ensure the reliability and stability of structural parts.Based on the above advanced technology, CHANGLIN ZG250 has been widely using in construction sites such as building construction, mining engineering, water conservancy project and etc.
•Equipped with Top brand engine, high load resistance, high horsepower output, high reliability, low fuel consumption, significantly reduce the use and maintenance costs •Advanced negative flow hydraulic system is adopted, which has better system stability and reliability, faster compound action speed and higher operating efficiency. •High-strength reinforced box-type side beams and X-shaped middle frames, high-reliability towline wheels and track rollers, can withstand the impact caused by excessive loads.

ITEM		UNIT	Specifications
Operating weight		Kg	25000
() Rated bucket capacity		m3	1.2
Overall length	A	mm	9840
(600mm) Overall width (600mm trackshoe)	B	mm	3180
Overall height	C	mm	3180
Trunable width	D	mm	2700
Cabin height	E	mm	2996
Groundclearance of counterweight	F	mm	1062
Engine cover height	G	mm	2375
Min. ground clearance	H	mm	480
Tail length	I	mm	2870
Turning radius of turnable	I'	mm	2940
Wheel base of track shoe	J	mm	3830
Chassis length	K	mm	4640
Chassis width	L	mm	3180
Track shoe gauge	M	mm	2580
Standard track shoe width	N	mm	600
Max. traction		KN	204
(/) Travelling speed (H/L)		Km/hr	5.8/3.2
Swing speed		rpm	10.5
Gradeability		Degree(%)	35(70%)
Ground pressure		Kgf/cm2	0.45
