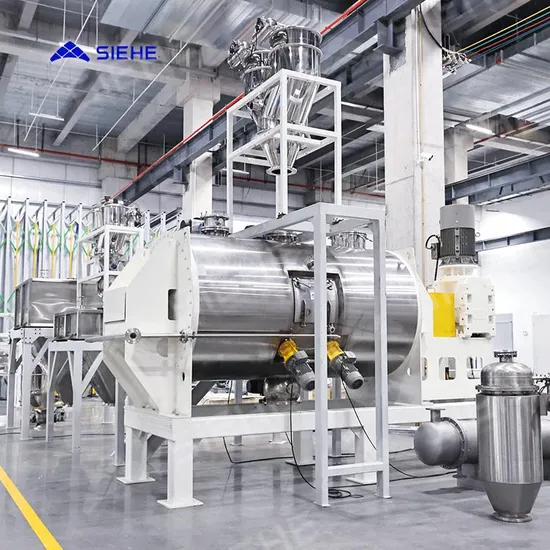

Horizontal Plough Mixer for Seasoning Spices

Product Description

Product Introduction
Horizontal Plough Mixer is a Germany-technical late-model mixing equipment with high efficiency, high uniformity, high loading coefficient but low energy cost, low pollution and low crush. The agitator consists of multi-group of plough and fly-cutter which works together to mixing, smash, and dispersing materials. It is widely used in the mixing of powder=powder, powder-liquid and powder-particles, especially for the materials which may get aggregation during mixing. Liquid can be sprayed into powders. Vacuum system and drying system are also in option.

Materials Specific Gravity	≤5g/cm³
Production Capacity	50-30,000L
Application Industry	Suitable for the mixing of food, pesticide, dye, chemical industry, plastic, lithium battery, ceramic, chemical fertilizer,rubber, mortar and etc.
Applicable Materials	Powders with fluidity whose specific gravity is up to 5g/cm³, liquid content is up to 20%, such as flavoring, pesticide, reactive dyes, water-free dirt, lithium cobalt oxides battery material and etc.

MIXING AGITATOR STRUCTURE
Plough type agitator used; With fly cutters to break the cakes during mixing; Plough agitator and fly cutter
with high speed,with higher mixing efficiency LAB USE HORIZONTAL PLOUGH MIXER
50L design volumeElectrical control system integrated;With liquid spray tank. MIDDLE BATCH HORIZONTAL PLOUGH MIXER
1000L-5000 Design volume Can be customized with two discharge ports; With side cleaning door. LARGE CAPACITY HORIZONTAL PLOUGH MIXER
6000 - 30000L Design volumeAll stainless steel materials mixer;used in food industry.
Product Details
Rich Experience&Excellent Design Aptitude:
High sealing performance, vacuum system, heating device, all available;
Reliable Driving Device:
SIEMENS, ABB, and K series spiral cone gear reducer with international brands products, output torque can be output by direct-combination, chain-wheel combination, hydraulic couplers and etc.
High Efficient Mixing Device:
Plough head with removable design to adjust the gap between the agitator and mixing barre. Surface treatment includes surface carburizing/nitriding, heat treatment, tungsten carbide spray and etc.
Main Shaft agitator:
Traditional plough, serration plough, scraper plough; fly-cutter: multi-plate cross cutter, dual-plate lotus cutter and other customized cutters. Related Products
Company Profile
SIEHE GROUP established in year 2009, start with liquid machine manufacturing. After more than ten years of efforts, SIEHE Group has developed into large-scale machinery industry group company. lts headquarter is located in Honggiao, Shanghai, China. lts production bases are in Jinshan, Shanghai,Wuxi and Yangzhou in Jiangsu, with a total plant area around 32000m2. The production bases are equipped with more than 160 sets of advanced production processing and testing equipment including: turning and miling center, large gantry five- axis machining center, horizontal five-axis boring and miling machining center, Vertical five axis machining center, vertical CNC lathe machining center, trilinear coordinates precision measuring instrument, image measuring instrument precision altimeter etc.. With strong production and quality control capacity, SIEHE group carries out product design, processing,assembly and testing in full accordance with the lSO9001 quality management system, and has passed professional institution certification.
Production Equipment
Five-axis Gantry Machining Center Turning and Milling Center CNC Boring and Milling Machining Center CNC Vertical Lathe Vertical Machining Center CNC Five-axis Gantry Machining CenterCertifications
Customer Photos
Exhibitions
FAQ
1,Payment terms?
A1 L/C, T/T, D/P,cash;2,Trade terms?
A2 In according with Incoterms 2010, normally with EXW, FOB Shanghai, CFR, CIP CIF and DDU;3,Validity of quotation?
A3 Within 30 days;4,Modes of shipment?
A4 By sea, by railway, by air and by express;5,Warranty?
A5 One year and lifelong service provided at cost;6,Installation & Commissioning & Training?A6 For single set of machine, usu. tel or mail guidance for installation;For production line, paid overseas engineering service provided to customers'factory for installation and debugging, as well as training the worker to use the production line.

---
