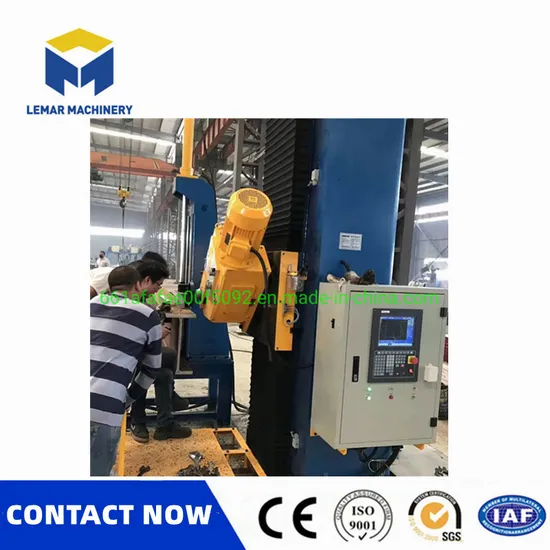

2000*4000mm End Face Milling Machine for Cross Sectional of H Beam and Box Beam

Product Description

2000*4000mm End face milling machine for cross sectional of H beam and Box beam Box beam I beam H beam CNC face milling machine adopts a special milling power head. The welded machine tool as a whole has a high-strength welded bed and a lifting column after aging treatment. The enlarged rectangular guide rail is driven by a frequency conversion system to realize the automatic operation of the milling process. ;
The equipped cutter head is a standard face high-quality milling cutter head, and the cutter is a Xixiashu machine-clamped carbide cutter, which can be indexed.
CNC or Normal H beam Box beam I beam end face miller milling machine can meet the needs of workpiece end face or end face welding groove processing technology.e The H-beam Box beam end milling machine is the most common milling equipment. It can use a variety of different tools to mill the workpiece plane, chamfer the trapezoidal surface and the T-slot.
The DX series end milling machine can adjust the angle of 0~45° in the vertical plane, the column can be raised and lowered, and the table can be retracted left and right.
Technical Details:

Type	DX1215	DX2025	DX2040
Box beam Working range(mm)	1200*1500	2000*2500	2000*4000
Feeding speed(mm/min)	50-440	50-440	55*550
Quick backward speed(mm/min)	660	660	600
Power of main motor(kw)	5.5kw	5.5kw	7.5kw
The regulation of angle of power head in vertical surface	0-45°	0-45°	0-45°

Performance characteristics: 1.The H beam Box beam end milling machine is composed of milling head, lifting column, bed, mechanical feed system, electrical control system, guide rail protection device, tool and other parts
2.The guide rails in the horizontal direction are heavy-duty ball linear guide rails produced by HIWIN TAIWAN, with strong bearing capacity, small clearance and high precision. Lemar's structural parts are different from the guide rail welding of other 7.5KW DX series end face milling manufacturers. Our guide rails are made of high hardness, not easy to be pulled, and have high precision. 3.Automatic end face milling machine for H beam box beam adopts a hanging operation station, which can facilitate the operator to operate the milling cutter 4.The bed and column of h beam box beam automatic end face milling beveling machine adopt welded structure, which is annealed as a whole after welding, which is stable and not deformed, and has high precision
Lemar has more than 10 years of experience specializing in mechatronics products such as cutting and welding equipment, CNC machinery, robot auxiliary equipment, etc.; has cultivated a team of experienced and highly skilled talents
Our main products are:
Box beam production line series
H-beam production line series equipment
U-beam production line series equipment
Wind tower production line
CNC cutting series
Shot blasting machine
Automatic welding center
Automatic welding manipulator
Welding positioner
Welding roller frame displacement Machines and other special machines, auxiliary machines, edge milling machines, end milling machines, steel plate splicing machines, etc.
The products cover all parts of the country and are exported to Europe, America, Southeast Asia and the Middle East and other countries. It is one of the domestic H-beam production line export bases. Economic globalization has brought unprecedented development opportunities to Lemar Machinery.
In the wave of economic globalization, we will build a world-class brand and move towards a higher goal!

---
