| US$20,000.00 | 1 Piece (MOQ) |

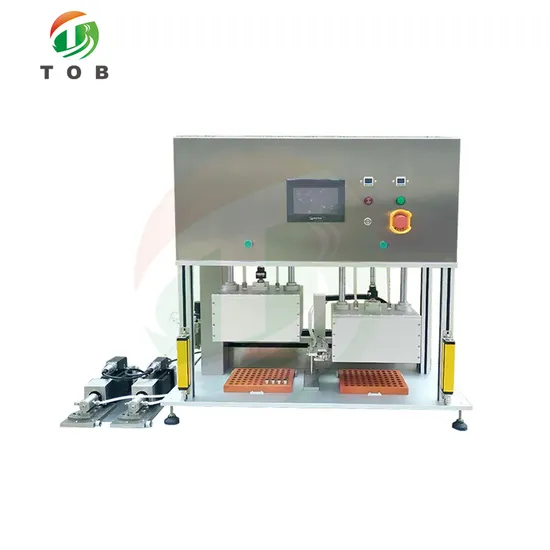

| Model | Vacuum Filling Machine TOB-ZYJ-02 |
| Source voltage | 110V-220V AC, 50/60Hz Single Phase |
| Power | 1500W |
| Warranty | One year limited and lifetime support |
| Suitable battery model | 18650 / 26650 / 32650, For all kinds of cylindrical battery |
| Advantages | 1 Customized die for all kinds of cylindrical cell types is available according to request 2 Adopt PLC and man-machine interface centralized control, easy operation. 3 Filling speed and times can be set 4 All the parameters such as vacuum time, air input time, filling quantity and battery distance can be adjusted freely. 5 Vacuum box for static control independently |
| Vacuum filling accuracy | ±0.02g |
| Vacuum filing time | 1-10times adjustable |
| Vacuum filling quantity | 0-7g |
| Vacuum degree | -0.1Mpa |
| Air supply | 0.3-0.6MPa |
| Working clamps | 18650 clamps battery tray 6 rows 8 columns |
