| US$12,000.00-30,000.00 | 1 set (MOQ) |

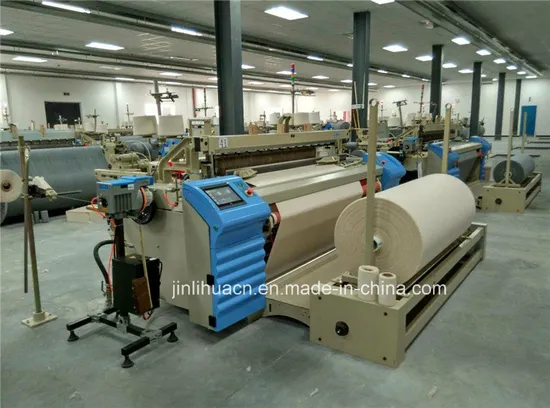

| Item | JLH425M-air jet loom configuration | Remark |
| Reed space | 150,170,190,210,230, 280,320,340 cm | Useful reed width:Below 280cm cut 0-60cm Above 280cm cut 0- 80cm |
| Drive | Motor choose by reed. Shedding type | |
| Weft selection | ( )set weft storage,( )main nozzle, any weft | 2 color; 4 color; 6 color |
| Weft insertion | Electronic control mail, auxiliary nozzle relay weft, with auxiliary main nozzle, SMC solenoid valve from Japan | |
| Beating | More support feet beating solid shaft, With weight, Crank linkage beating | above 280cm six-bar linkage, below 280cm four-bar beating |
| Let off | Electronically controlled continuous positive let-off, suitable for φ800 beam φ1000mm beam | |
| Take up | electronic take up ; Mechanical take-up | sand roller; double pressure roller; rubber roller; barbed leather roller |
| Winding | inside the machine winding outside the machine winding | inside the machine winding maximum roll diameter 550mm outside the machine winding maximum roll diameter 1200mm |
| shedding | positive cam shedding(up to 8)shaft crank shedding (4)shaft electronic dobby shedding(up to 16)shaft | Cam box and dobby manufacture: Bintian (made in China) Staubli |
| Shedding cams | 1/1 ; 2/1 ; 3/1 ; 2/2 ; 4/1shaft | |
| Heald frame | Number of New Light heald frames | |
| Heald wires | Heald wires J type 331 ; O type 330 | |
| cutter | Mechanical shears | |
| Selvage | Planetary gear cutter edge institution | |
| temple | 30 hoops temple in the cloth above | |
| Back beam | Double back beam, positive loose warp | |
| Control box | 7" 10.4" touch screen ; computer control system ; process parameters, monitoring, self-diagnosis display | |
| Parking device | 4 color indictor show failure A,broken warp: 6 row drop pin; B,cut weft: double weft feeder C,selvage: near switch D,catch weft: sensor |
