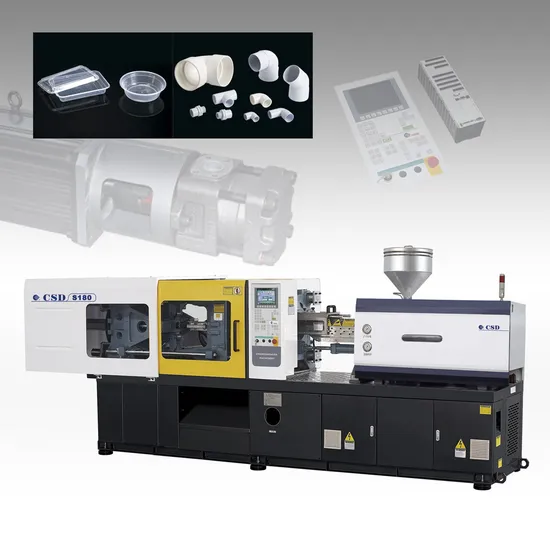

CE Approved with Servo Injection Molding Machine (CSD-S180 (100-500))

Product Description

Servo series Low consumption and environment-friendly:
1). Economizing on electricity: Electric motor energy is carried out according to need. For high-precision products with long holding time and thick wall thickness, energy electricity can be economized 25%-80%.
2). Precision: Products re-precision is once higher than usual injection molding machine.
3). Control: Double closed circular control makes the pressure and speed equaler.
4). Economizing on water: The cooling water can be economized greatly when the surrounding temperature is below 30 degrees.
5). Low noise: The noise is very low during the non-high-pressure situation.

CSD-W-S (-S;-W-D(280-1680)SPECIFICATIONS OF CONVENTIONAL INJECTION MOLDING MACHINE
				CSD-100			CSD-130			CSD-180			CSD-240			CSD-280			CSD-350			CSD-420				CSD-500				CSD-680				CSD-780				CSD-1000				CSD-1250				CSD-1680W
				A	B	C	A	B	C	A	B	C	A	B	C	A	B	C	A	B	C	A	B	C	D	A	B	C	D	A	B	C	D	A	B	C	D	A	B	C	D	A	B	C	D	A	B	C
INJECTION UNIT	SCREW DIAMETER		mm	35	37	40	37	40	45	40	46	52	45	51	57	50	56	62	60	65	70	65	70	75	80	70	75	80	90	80	90	100	110	90	100	110	120	100	110	120	130	110	120	130	140	130	140	150
	SCREW L/D RATIO		L/D	20.8	19.7	18.2	22.2	20	18.2	22.3	20	18.1	22.4	20	18.2	22	20	18.2	22	20	18.2	22.2	20.7	19.6	17.5	22.6	21.4	20	18	24.6	22.1	20	17.8	24.4	22	20	18.3	24.3	22.1	20	18.7	26.2	24	22.2	20.6	24	22.3	20.8
	SHOT VOLUME(THEORETICAL)		cm 3	150	168	196	206	241	305	283	347	478	397	510	638	528	662	812	882	1035	1200	1194	1384	1590	1808	1477	1696	1929	2442	2036	2576	3180	3450	2830	3495	4228	5032	3819	4620	5500	6455	5545	6600	7745	8980	8270	9590	11000
	SHOT WEIGHT		g	137	153	178	188	219	277	258	340	435	361	465	580	480	602	738	802	942	1092	1086	1260	1446	1645	1344	1543	1755	2222	1853	2345	2896	3503	2576	3180	3848	4579	3496	4205	5005	5875	5045	6005	7745	8170	8105	9398	10780
			oz	4.8	5.4	6.3	6.6	7.8	9.8	9.1	12	15.3	12.7	16.4	20.1	16.9	21.2	26	28.3	33.2	38.5	38.3	45	51	58	47.5	54.5	62	78.3	65	82	102	123	91	112	136	162	123	148	176	208	178	212	248	288	284	328.6	377
	INJECTION PRESSURE		Mpa	193	173	148	196	168	145	247	188	146	229	179	143	223	178	145	219	187	161	208	179	156	137	219	191	168	133	224	177	143	118	228	184	152	128	185	170	155	143	208	175	150	128	166	145	128
	INJECTION RATE		g/s	88	100	115	117	130	150	124	157	194	170	210	254	233	281	335	272	319	370	294	341	392	446	369	424	481	610	428	541	668	808	542	669	809	963	792	867	945	1023	812	966	1133	1315	1052	1225	1380
	SCREW SPEED		rpm	0~225			0~200			0~225			0~225			0~225			0~200			0~185				0~155				0~130				0~120				0~100				0~100				0~90
	PLASTICIZING CAPACITY		g/s	12.1	13	15.2	12.9	15	20.1	13.6	18.6	24.6	19	24.1	30.8	24.2	31.3	37.4	35.7	43	51.2	37.2	44.2	51.9	59	43.2	50.5	58.7	74.2	57	73	90	110	77	98	125	155	121	135	145	156	105	125	148	171	150	173	192
CLAMPING UNIT	CLAMPING FORCE		KN	1000			1300			1800			2400			2800			3500			4200				5000				6800				7800				10000				12500				16800
	OPEN STROKE		mm	335			375			450			510			570			660			710				800				860				980				1100				1250				1560
	SPACE BETWEEN TIE BARS(W×H)		mm	380×380			430×430			510×510			560×560			610×610			680×680			740×740				810×810				895×895				980×980				1100×1100				1250×1250				1500×1400
	MOULD THICKNESS		mm	150~400			150~450			180~520			200~550			220~580			250~680			280~730				320~800				400~900				400~980				500~1150				550~1300				700~1500
	EJECTOR FORCE		KN	33			39.6			39.6			62			62			62			110				110				175				186				215				235				400
	EJECTOR STROKE		mm	100			130			140			140			160			160			200				200				260				260				280				320				400
	EJECTOR NUMBER		n	5			5			5			5			9			13			13				13				17				21				21				21				33
OTHERS	HEATER POWER		KW	7.1			7.7			9.7			15			19.8			18.7			26.4				30.5				50				58				68				85				92
			A	11			13.3			20			32.8			43.8			35.6			58.2				66				110				127.6				149.6				187				190
	PUMP MOTOR POWER		KW	11			13			18.5			22			30			37			37				45				22+37				37+37				45+45				55+55				45+45+45
			A	24.6			29			36.4			43			60			70.3			70.3				86				113.3				140.6				172				206				258
	MAX PUMP PRESSURE		Mpa	16			16			16			16			16			16			16				16				16				16				16				16				16
	MACHINE DIMESION(L×W×H)		m	4.25×1.2×1.7			4.49×1.19×1.8			5.1×1.5×1.9			5.3×1.5×1.95			5.7×1.7×2.1			7×1.9×2.2			7.3×2.0×2.2				8.1×2.1×2.3				10×2.5×3.8				11×2.6×3.8				12×2.8×4				13.8×3.2×4.2				14.6×3.5×4.9
	MACHINE WEIGHT		t	3.5			4.5			5.26			6.7			8.2			13.2			17				19.2				36				46				58				65				105
	HOPPER CAPACITY		L	25			25			25			50			50			50			50				100				200				200				200				200				400
	OIL BOX CAPACITY		L	210			240			320			450			610			760			960				1100				1250				1480				1700				1900				2400

---
