Four Cavity 1L Pet Drink Bottle Automatic Blow/Blowing Molding Machine

Product Description

Specification of D-R604 Automatic Blow Moulding Machine
https://chinadoria.en.made-in-china.com/product-list-1.html
1. Main parts of D-R604 machine

Model	Unit (set)
D-R604machine	1
high pressure air compressor (piston 2.4 /30kg)	1
low pressure air compressor (piston 1.6/ 12.5kg)	1
air dryer & air filter (3 m³)	1
high pressure air tank(1 m³/ 30kg)	1
low pressure air tank(1 m³/ 12.5kg)
bottle mould(under 1L)	1

2--Specifications of D-R604 (4cavities):
2.1. Main machine dimension: (L*W*H) 2000*1970*2070mm;
2.2. Voltage (main frame)"3P 380V, 25KW;
2.3 Theoretical output: 2L: 4000-4500pcs/h; 0.5L: 5500-6000pcs/h; 0.1L: 5500-6000pcs/h;
2.4. Max mould plate dimension (L*H) 350*360mm;
2.5. Max mould thickness: 180-260mm;
2.6. Clamping force: 300KN;
2.7 bottle diameter:φ35-φ110mm;
2.8. The frame of the machine adopts high quality steel 64# and A3 plate, the whole is in blue and nice in appearance
2.9, Stretch cylinder and main parts adopt "SMC" brand
2.10 The perform-conveyor part is steel 45# and Zinc in appearance
2.11. The revolving heating ensure the perform be heated evenly
2.12. Adopts auto loader, main process is:
Auto resin loader - heat - blow -auto resin off
3,Main items of machine

Item	Product name	Origin Place of Origin	Brand
electric/control element	Air switch	France	Schneider
	Intermediate relay	France	Schneider
	Contactor	France	Schneider
	optoelectronic switch	Japan	OMRON
	touch screen	Taiwan	Taida
	PLC	Taiwan	Taida
	switch power	Taiwan	MEANWELL
valves/contacts	high pressure blowing valve	USA	Parker
	action valve	Japan	Yuken
	pneumatic quick contact	German
	action valve	German
	opening and closing mould cylinder	German
	stretch cylinder	German
	pressing preform cylinder	German
	auto-loader lifting cylinder	Japan	SMC
	auto-loader rotation cylinder	German
	mechanical arm air-operated	Taiwan	Jinqi
	sealing cylinder	China	Ribo

4. Specification of D-604 machine:

category	Item	Unit	D-R604
	Material	/	PET
Product	Capacity	L	0.1-2(4-cavity)
	output	Pcs/h	2L:4000-4500pcs/h; 0.5L: 5500-6000pcs/h; 0.1L: 5500-6000pcs/h;
	Max. height	mm	260
	Max. diameter	mm	110(4-Cavity)
	Max. outer diameter of bottleneck	mm	45
Auxiliary equipment	high pressure operation pressure	M3/Mpa KW	≤4.0/35
	high pressure gas consumption	L/m³	8
	low pressure operation pressure	M3/Mpa KW	≤2.0/10
	low pressure gas consumption	L/m³	2.0
	Air freezer dryer	M3/Mpa KW	≥3.0/30
	air filter	M3/Mpa	≥3.0/30
	high pressure air tank	M3/Mpa	≥1.0/30
	pressure of water chiller	Mpa	0.3-0.5
	temperature of water chiller	ºC	10-12
	water chiller flow	L/m³	45
electricity specification (500ML )	installed capacity	KW	55
	heating rated power	KW	50
	heating actual using power	KW	35
	voltage/HZ(Three phase)	V/HZ	220-380/50-60
machine specification	machine size	M	4.6*1.7*2.0
	machine weight	KG	4000
	convey size	M	2.0*1.0*2.0/2.0*0.9*2.0
	convey weight	KGS	220
security assurance	breakdown automatic alarm

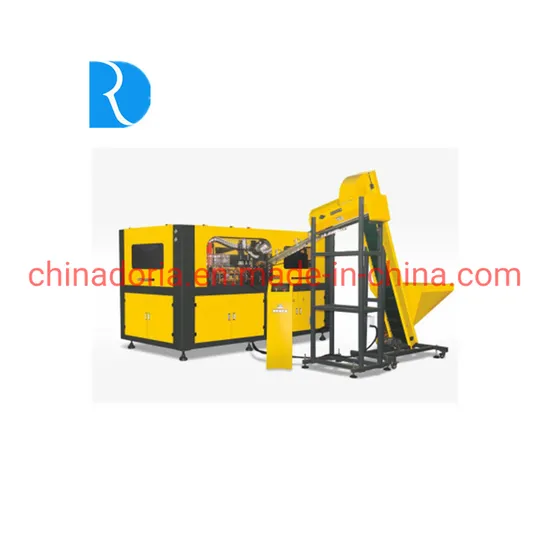

5. Picture of D-R604
6. About us:
Taizhou Doria Plastic Equipment Co., Ltd. is located the town of plastic products and mould in China, which is one manufacturer owns special production teams, advanced production equipments and rich production experience.
The main products are following: Automatic & semi-automatic blow moulding machine, PET preform, plastic injection machine, preform moulds, bottle moulds, commodity moulds and correlative products.
Based on "Quality is first; Honor for the honest", we always continue development and innovation to witness the maturity of industrial chain of products and improve the quality of products continually. Untiring effort makes the products, especially for 5gallon blow moulding machine, 5gallon PET preform and commodity moulds are widely accepted by our customers.
We have good market in South America, Africa, Asia, Europe, North America, and our many customers from Canada, Brazil, Thailand, Chile, Algeria etc.
Meanwhile, the output of our main product automatic 5gallon blow moulding machine could achieve 600pcs/h which is the breakthrough of our company.
Welcome everyone to visit us, we hope we will have good chance to cooperate!
7. Location:
No.362 Lingxiage Village
Xicheng Street, Huangyan
Taizhou, Zhejiang
China

---
