Top Quality Feed Pellet Mill Complete Cattle Animal Feed Production Line

Product Description

Product Description
Our factory is a professional manufacturer specialized in designing, making high quality feed pellet mill and building turn key feed pellet production line. With 20 years' experience, professional technical R&D team.
We had built 1-30t/h feed pellet mill lines(chicken feed pellet lines, cattle feed pellet lines,poultry pellet lines and so on) in: Russia, Romania, Thailand, Malaysia, Ukraine, Iraq, Algeria and so on.
Feature of feed pellet machine, feed pellet mill
1.This feed pellet machine is equipped with screw feeder controlled by FC inverter with permanent magnet to removing iron impurities.
2. Stainless steel conditioner makes even retention and sufficient cooking effect.
3. Gear directly-connecting driving is adopted for high accuracy and efficiency. The output can increase 20% comparing to feed pellet machine driven by belts.
4. High quality bearings(NSK),motor( Siemens or China top brand-Wannan ) is adopted to makes operation smoothly.
5. Main gear and pinion shaft adopt the carbonizing quenching with high accuracy, to ensure smooth driving, low noise and long service life.
6. The ring die& roller assemblies are quickly assembled and disassembled.
7. Applicable for all kinds of high grade animal/livestock/aqua feed. Sinlge, double or three layers of conditioner is optional.
8. Speed-adjust feeding, adopted by this feed pellet machine, can control the feeding capacity correctly to fit for different and meet the production requirement of pellets with different diameters.
Product Parameters
Technical parameters of feed pellet machine, feed pellet mill

Model	Main power (kw)	Capacity (t/h)	Feeder power (kw)	Conditioner power (kw)	Die diameter (mm)	Feed pellet size (mm)
SZLH250	15	0.5-1	0.55	2.2	250	2-18
SZLH320	37	2-5	0.75	2.2	320	2-18
SZLH350	55	2-7	0.75	3	350	2-18
SZLH420	90/110	3-14	1.5	5.5	420	2-18
SZLH508	110/132/160	4-20	1.5	7.5	508	2-18

Related machine

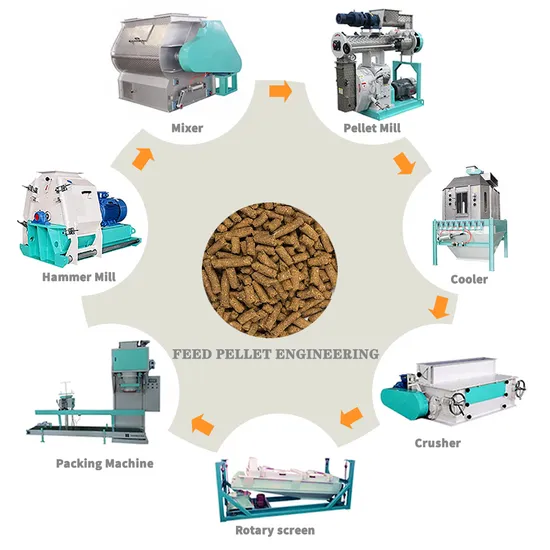

Total process for feed pellet mill line, poultry feed production line
Raw material receiving →Grinding →Mixing →Pelletizing →Cooling & Sifting →Packing
Detailed processes of feed pellet mill line, poultry feed production line
1. Raw materials receiving Process:
Raw materials can be corn, rice bran, soybean, grain, wheat, soybean meal / cake and etc. Precleaner can remove the impurities in raw materials.
2. Grinding Process:
The feed grinder can grind the raw material ingredients to the required size. There are various hammer mills which can satisfy different requirements.
3. Mixing Process:
Mixing is considered to be one of the essential operations in feed pellet processing. Lack of proper mixing may lead to reduced diet uniformity, affecting the feed pellet quality.
4. Pelletizing Process:
Feed pellet mill is the core equipment of the whole production line. According to different raw material, material formula and working condition, we can offer you different pellet mills.
5. Cooling Process:
The feed pellets pressed out by the feed pellet mill are hot and moist. They can't be crushed, screened or packed immediately. Counter-flow feed pellet cooler is designed to cool or dry the feed pellets. It can decrease the temperature and moisture of the feed pellets, preparing for the following processes.
6. Crushing Process:
Different poultry, livestock or aquatic feed pellets are with different sizes. Some big ones should be crushed into small ones. Roll type feed pellet crumbler is just the equipment for feed pellet crushing. Double-roll feed pellet crumbler is suitable for crushing poultry feed, such as chicken feed, duck feed and goose feed etc. Three-roll feed pellet crumbler is suitable to crush aquatic feed including fish feed and shrimp feed etc.
7. Screening, Grading and Packing Process:
The rotary grading sieve can be used to screen and grade the feed pellets. After processing, you can get the qualified feed pellets without fine powder.
Packing Process
The feed pellets should be packed for transporting, storing or selling.
8. Automatic PLC Control System(Customized):
With the automatic PLC control system, the production line is with high efficiency and convenient operation
Detailed Photos

Company Profile
FAQ
1. who are we?
We are based in Jiangsu, China, start from 2009,sell to Domestic Market(16.00%),Oceania(12.00%),South Asia(10.00%),Eastern Asia(10.00%),North America(9.00%),Northern Europe(9.00%),Central America(8.00%),Southeast Asia(7.00%),Eastern Europe(6.00%),Africa(5.00%),Western Europe(3.00%),South America(2.00%),Southern Europe(2.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Biomass fuel pellet production line,Livestock&poultry feed production line,pellet machine,wood pellet mill,drum dryer
4. why should you buy from us not from other suppliers?
Moren than 20 experiences of design,manufacturer the pellet mill, complete pellet production line and the spareparts with over 5 professional engineers for design and 5 teams for guiding installation
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C,Western Union;
Language Spoken:English,Chinese
Quality First And Everytime Good Quality!
Any demands, please kindly contact with me:
Carrie Huang(Sales manager)

---
