CE Approved Industrial Battery Panel Cell Module Supply Power Solar Container System Ess-1mwh

Product Description

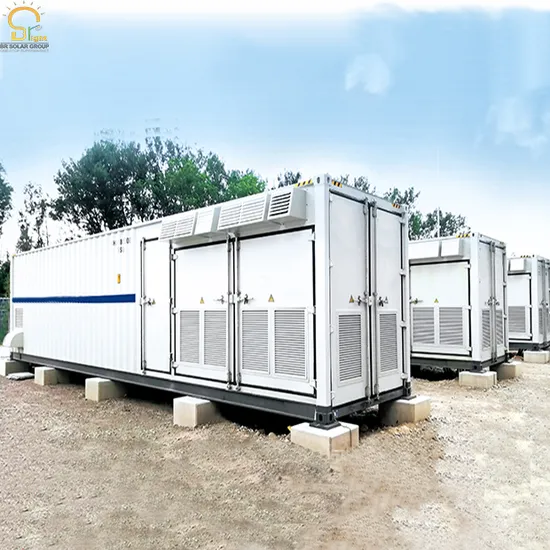

The battery energy storage system (BESS) containers are based on a modular design.
They can be configured to match the required power and capacity requirements of client's application.
Product Description for Energy Storage System
Features of BR SOLAR Energy Storage Container Energy Storage System
1. High degree of system integration, integrated battery management system, PCS, temperature control system, fire control system, access control system, data monitoring system, AC and DC power distribution, lighting system, etc. 2. Customizable design to meet different customer needs. 3. Third-level BMS system architecture, safe and reliable. 4. The charging mode includes pre-charging, constant-current charging, uniform charging and floating charging. 5. The energy storage system has perfect functions of communication, monitoring, management, control, early warning and protection.
It operates continuously and safely for a long time. It can detect the running state of the system through the upper computer. It has
abundant data analysis ability and emergency power supply function.
20ft Energy Storage Integrated Warehouse

NO.	Name	1000V
1	Container Size	6058mm(L)×2438mm(W)×2896mm(H)
2	Charge and Discharge Rate	0.5C	1C
2	Battery Cluster	38240 Battery Cluster*8	76120 Battery Cluster*14
3	Nominal Voltage	729.6V	691.2V
4	Rated charge and discharge power	630kW*1	500kW*2
5	Maximum stored power	1400kWh	1161kWh

40ft Energy Storage Integrated Warehouse

NO.	Name	1000V		1500V
1	Container Size	12192mm(L)×2438mm(W)×2896mm(H)
2	Charge and discharge rate	0.5C	1C	0.5C	1C
2	Battery Cluster	38240 Battery Cluster*16	76120 Battery Cluster*28	38240 High Voltage Version Battery Cluster*8	76120 High voltage Version Battery Cluster*16
3	Nominal Voltage	729.6V	691.2V	1305.6V	1305.6V
4	Rated charge and discharge power	630kW*2	500kW*4	1250kW*1	1250kW*2
5	Maximum Stored Power	2800kWh	2322kWh	2506kWH	2506kWH

Product Parameters for 1MW/2.5MWH Energy Storage System for your reference: Customized service is available

1MW/2.5MWH Energy Storage System
Rated output power		1000KW
Rated capacity		2500KWH
AC Phases		Three-phase Four-wire
Grid discharge mode	Rated voltage	380V
	Voltage range	380±15%V
	Rated frequency	50Hz
	Frequency range	47.5~51.5Hz
	Total current waveformdistortion rate(THD)	<5%
	Output power factor	≥0.99
Isolated network operation mode	Rated voltage	380V
	Voltage accuracy	<±3%
	Output voltage distortion	<5%
	Rated output frequency	50±2%Hz
	Voltage transition range	<10%
	Can withstand three - phase load imbalance	100%
Grid-connected charging operation mode	Rated voltage	400V
	Voltage range is allowed	380±15%V
	Frequency range	47.5~51.5HZ
	Power factor	≥0.99(absolute value)
Noise		<70dB
IP GRADE		IP54
External communication		Ethernet
Dimension		12192mm(L)*2438mm( W)*2591mm(H)
Weight		22 Ton

Packing & Shipping
Our Projects
Our Factory
Certificates
A Billion Ways Go Green, Welcome to your inquiry.

---
