Wholesale on/off Hybrid Solar Power System with Solar Panels High Efficiency

Product Description

Product Description

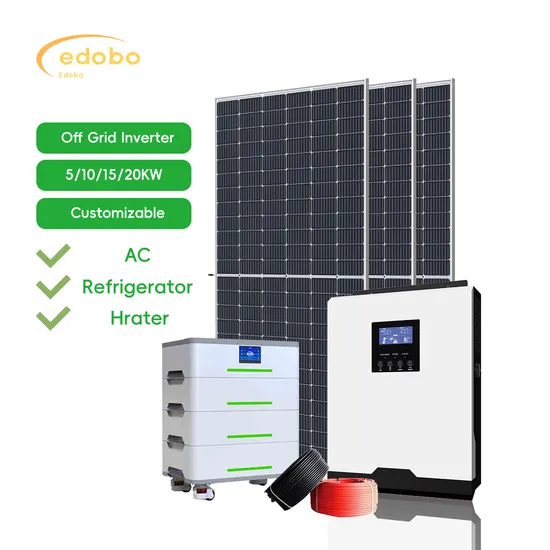

Unlock the power of renewable energy with our cutting-edge off-grid solar power system. Designed to harness the sun's limitless energy, our system offers a reliable and sustainable solution for generating electricity in remote areas or areas with limited access to the grid. With our advanced solar panels, you can capture sunlight and convert it into clean, green energy. Our high-efficiency panels ensure maximum power generation, even in low-light conditions, so you can enjoy a consistent and reliable energy supply. Our off-grid solar power system features state-of-the-art battery storage technology, allowing you to store excess energy for use during times of low sunlight or at night. This means you can power your home, cabin, or remote facility 24/7, without relying on traditional power sources. Experience the freedom and independence that comes with our off-grid solar power system. Say goodbye to expensive fuel generators and noisy machinery. Embrace a sustainable lifestyle and reduce your carbon footprint while enjoying reliable and affordable electricity. Our system is not only environmentally friendly but also highly customizable to meet your specific energy needs. Whether you require a small-scale system for a remote cabin or a larger system for an off-grid community, we have the expertise to design and install the perfect solution for you.System Components
Solar panel
550W Efficient monocrystalline silicon solar panels
Module efficiency up to 21%
25 years warranty
Excellent mechanical load resistance
PID Resistant,High salt and ammonia resistance
Inverter
Max.Efficiency 99.6%,European efficiency 99%Integrated DC switch for added safety protectionPower factor continuously adjustableTransformer-less design and high power density,off lighter and more convenient installationFlexible communication connection, support RF WIFIBattery
Lithium and Gel batteries are optional
Long life and high cycle batteries Product Parameters

Components name				Technical data	3KW-off gird	5KW-off gird	8KW-off gird	10KW-off gird
Mono Solar Panel				rated power:550watt, 144 half cell, Voltage at Pmax:41.76V Current at Pmax:13.17A Open-circuit voltage:50.11V Short-circuit current:13.89A size:1134*2279*35mm,	5pieces	8pieces	12pieces	16pieces
Off grid Inverter				DC input:48VDC AC Output :230VAC±5% 50/60HZ Single Phase	Rated capacity:3KW 1piece	Rated capacity:5KW 1piece	Rated capacity:8KW 1piece	Rated capacity:10KW 1piece
Gel battery				Lithium and Gel batteries are optional	4pieces 12v 200ah GEL battery	8pieces 12v 150ah GEL battery	12pieces 12v 150ah GEL battery	12pieces 12v 200ah GEL battery
PV cable				PV1-F4 4MM2,red wire is 25m,black wire is 25m	50m	50m	50m	50m
PV mounting structuer				Anodized aluminum alloy material,alloy is 6063,temper is T5	1set	1set	1set	1set
MC connector				Rated voltage:1000collect data and monitor the solar system	4 pairs	4 pairs	4 pairs	4 pairs
Wifi logger				Collect data and monitor the solar system	1 piece	1 piece	1 piece	1 piece

Detailed Photos
Certifications

Payment Terms	T/T	EXW	30% T/T in advance, the balance to be paid before dispatch
		FOB
		CIF	30% T/T in advance, the balance to be paid against the copy of B/L
		CFR (C&F)
	L/C	Irrevocable L/C at sight could be accepted if amount above US $50,000.00
	West Union	Amount lower than US$2,000.00
	O/A	30% T/T in advance, the balance to be paid by O/A is acceptable after confirmation
Delivery Time	7 to 10 working days after receiving advanced payment

Packaging & ShippingPacking Details : In carton on pallet or wooden box, OEM with your logo availableDelivery Details : 5-10 working days
Completed ProjectsEdobo solar projects are installed around the world for home, commercial and industrial use. Home Lithium battery hybrid solar systems are more installedfor roof mounting with solar panel power range 3kw, 5kw, 8kw, 10kw, 15kw, 20kw, 30kw etc, lithium batteries with power wall and rack mount types.Commercial projects are more On Grid systems like 50kw, 100kw, 150kw, 200kw, 300kw Grid tied for cement or soil ground mounting. Industrialprojects for tender EPC like 1MW, 2.5MW, 3MW, 5MW, 10MW etc. Usually we have solar panels PERC, bifacial and black types in stock.
FAQ1. Q: Are you a factory or a trading company?
A: We are a professional Solar Panels Manufacturer in China
2. How can we guarantee the quality of the product?
A: Always provide the favored buyer with a pre-production sample before mass production; Always test every product before despatching the shipments;
3. What products we can supply you?
A: Solar panels, inverter, controller, cable, support frame, and other solar power systems
4. Q: Can the product's pricing be cheaper?
A: Of course, you will be offered a very good discount with large quantities.
5.. Q: Can print our company's logo on the PV panels?
A: Yes! And we accept OEM&ODM orders.
