Product Description

Chengli Special Purpose Vehicle Co., Ltd.
Top 500 Chinese Private Enterprises

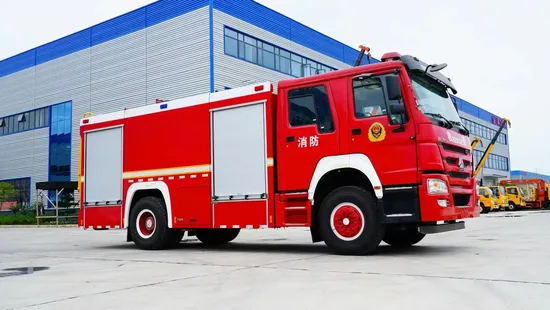

Sinotruk HOWO 16 ton water tank fire truck
(Vehicle model: CL W 5 3 2 0 GX FSG 1 6 0 / HW water tank fire truck) (Chassis model: ZZ 5 3 5 7 TXF V4 6 4 MF 5)
Technical Specifications
Page 1 Chengli Environmental Emergency Equipment Machine Translated by Google
Chengli Special Purpose Vehicle Co., Ltd.
Top 500 Chinese Private Enterprises
1. Chassis
Model: China National Heavy Duty Truck Group Jinan Truck Co., Ltd. / ZZ5357TXFV464MF5
Engine: China National Heavy Duty Truck Group Co., Ltd.
Model: MC11.46-61
Power: 338kW
Drive type: Rear wheel drive
Wheelbase: 4600+1400mm
Emission standards: GB3847-2005, GB17691-2018 National VI
2. Cab
Structure: Flat head, original double row seat four door crew cab.
Seating configuration: 2 people in the front row and 4 people in the back row.
A guardrail and handrail are installed in front of the seat. Firefighters quickly carry air respirators on their way to firefighting and rescue. After arriving at the fire scene, they quickly launched firefighting and rescue operations.
Cab structure: Install a hydraulic tipping mechanism to accommodate tipping.
Cab equipment: In addition to the original equipment, power take-off control switch, 100W siren, warning light are installed
Switches, etc.
Outside the cab: A long row of warning lights is installed on the front of the cab.
3. Container
Capacity: Water: 16000Kg
Material: Water tank: high-quality steel plate, with high-tech anti-corrosion treatment
Structure: Frame welding, longitudinal and transverse anti-sway plates are set inside the tank to reduce the vehicle's driving process
The impact of water in the middle tank on the tank body; the front and rear wall panels of the tank body are folded with trapezoidal folding ribs, so that the tank body has sufficient strength,
Stiffness.
A quick-opening manhole is installed on the top of the tank to facilitate the entry and exit of maintenance personnel. Vortex, thus affecting the flow device and filter.
The tank is equipped with a stainless steel float type liquid level indicator, which can display the fire extinguishing agent in the tank through the liquid level gauge on the dashboard.
capacity; there is a drain port with a ball valve at the bottom of the tank.
Page 2 Chengli Environmental Emergency Equipment
Factory Address: Building 3, Zone D, Chengli Special Automobile Industrial Park, Pingyuangang, Nanjiao, Suizhou City, Hubei Province Chengli Automobile Group. All rights reserved (Hubei Province. Suizhou City) Machine Translated by Google
Chengli Special Purpose Vehicle Co., Ltd.
Top 500 Chinese Private Enterprises
The tank is equipped with a 76mm overflow pipe and two 76mm injection ports on both sides of the car, which is convenient for other vehicles to supply
For adding water.
Equipment: 1 access port with quick-release locking and opening device.
1 level indicator.
1 drain port with stainless steel ball valve.
4 water inlets (two on each side)
Process: Welding is firm and reliable, and defects such as slag inclusions and cold welds are removed and cleaned; after welding, the tank body should be Hours of hydrostatic test to ensure no leakage.
4. Fire pump and piping system
Fire pump: CB10/60 low pressure fire pump
Flow rate: 60L/s
Pressure: 1.0MPa
Installation type: rear
Vacuum pump: piston type;
Vacuum pump material: wear-resistant and corrosion-resistant to meet sealing requirements;
Water diversion time ÿ35s, suction depth ÿ7m.
Maximum vacuum degree: ÿ85kPa;
Pipeline system
Water suction pipeline: The water pump is equipped with a ÿ150mm water inlet, which can be drawn from natural water sources, liquid tanks, fire water storage tanks, etc.
Water absorption, and a conversion reducer can be added to connect to the fire hydrant to absorb water and supply water, and the water absorption pipe is placed on the roof. 1 Water inlet with ÿ150mm butterfly valve for connection to water tank.
Water outlet pipe:
A ÿ100mm water outlet fire monitor pipeline and control valve are installed on the roof, using flexible joints;
On the left and right sides of the pump room, there are two water outlets controlled by manual ball valves, one ÿ80mm and one ÿ65mm.
Water injection pipeline: A ÿ65mm water pump is installed in the pump room to inject water into the tank pipeline and control valve;
There are two ÿ65mm water injection pipes on the left and right sides of the carriage, which can be used to inject water into the tank.
Page 3 Chengli Environmental Emergency Equipment
Factory Address: Building 3, Zone D, Chengli Special Automobile Industrial Park, Pingyuangang, Nanjiao, Suizhou City, Hubei Province Chengli Automobile Group. All rights reserved (Hubei Province. Suizhou City) Machine Translated by Google
Chengli Special Purpose Vehicle Co., Ltd.
Top 500 Chinese Private Enterprises
interface with a cover.
Residual water pipe: To protect the water pump and ball valves, a residual water pipe is installed in the pipeline.
Equipped with ball valve.
Cooling water pipeline: In order to enable the power take-off to cope with various complex situations during operation, it is equipped with inlet and outlet water pipelines.
Connected cooling water pipeline and control valve.
5. Fire monitor
Model: PS8/50 fire monitor Flow rate: 60 (L/s)
Range: Water ÿ 60m
Pressure: 1.0MPa
Location: On top of the pitcher.
Control: Manual control with locking mechanism for easy operation.
6. Power take-off
Type: Full power sandwich power take-off Cooling method: forced water cooling
Lubrication method: splash oil lubrication
Operation method: The power take-off is operated on the instrument panel in the cab. The power take-off is easy and stable to engage without abnormal noise. Installation: The power take-off is well matched with the engine and installed accurately, without any phenomenon of falling off after connection.
7. Equipment Box and Pump Room
Main Materials:
The frame and skin are made of high-quality carbon steel; the internal equipment frame is made of aluminum alloy profiles, and the interior panels are oxidized.
of aluminum plate.
Basic structure:
1. It is an integral structure, with the front part being the equipment box, the middle part being the water tank, and the rear part being the pump room.
2. The rear part is the pump room, which is equipped with a dashboard and operating system. The equipment box and pump room are equipped with rolling doors with locks.
The frame is welded and its strength and rigidity are ensured.
3. The space can be adjusted arbitrarily, and the equipment box is equipped with drainage holes.
Page 4 Chengli Environmental Emergency Equipment
Factory Address: Building 3, Zone D, Chengli Special Automobile Industrial Park, Pingyuangang, Nanjiao, Suizhou City, Hubei Province Chengli Automobile Group. All rights reserved (Hubei Province. Suizhou City) Machine Translated by Google
Chengli Special Purpose Vehicle Co., Ltd.
Top 500 Chinese Private Enterprises
4. The equipment box is reliable, beautiful, and can be adjusted at will. It is equipped with a large space curtain door equipment box to ensure space
Make full use of.
5. The carriages and pump rooms are equipped with lighting to meet the lighting needs of nighttime firefighting operations.
Aluminum alloy rolling door:
1. All equipment compartments and pump rooms are equipped with rolling shutter doors with locks. The handles and lock pins are durable and will not deform.
The sealing performance has been tested with water spray to ensure there is no leakage.
2. The sliding tracks on both sides of the rolling door are fixed with rivets to prevent them from falling off.
3. Each equipment compartment is equipped with lighting, which is controlled by the opening and closing of the rolling door.
4. There is an aluminum alloy curtain door on the left and right of the rear, and one at the rear, which is safe, reliable, beautiful and practical.
Basic principles:
(1) Designing equipment integration according to combat organization and combat deployment;
(2) Design various equipment brackets according to ergonomic principles;
(3) The principle of simplicity and practicality is to use any equipment in the box without any climbing tools.
(iv) Arrange equipment according to logical relationship and frequency of use;
(V) Standing on the ground or on a step to access any equipment within 1-2 movements.
8. Electrical system
1. The top of the cab is equipped with a long row of luxurious red warning lights.
2. The power of the alarm is 100W;
3. To ensure safety in use, the entire vehicle circuit is made of an integral wiring harness, and waterproof plugs are used at the connection points to ensure safety.
Ensure line safety during use.
4. The roof is equipped with a fire scene lighting lamp; safety sign lights are installed on the lower sides of the vehicle, and on the body and tail
Paste reflective logo according to standards.
5. All equipment boxes are equipped with LED lighting to facilitate night combat lighting.
6. Four flashing lights and two side lights are installed on each side of the vehicle, and a safety sign light is installed below.
and side retro-reflectors (combined), equipped with front and rear marker lights, a turn signal lamp on each side, passenger compartment,
There are lights in the equipment box and pump room.
7. The sirens, warning lights, strobe lights and circuits are independent additional circuits, and the control devices are installed on the driver.
Page 5 Chengli Environmental Emergency Equipment
Factory Address: Building 3, Zone D, Chengli Special Automobile Industrial Park, Pingyuangang, Nanjiao, Suizhou City, Hubei Province Chengli Automobile Group. All rights reserved (Hubei Province. Suizhou City) Machine Translated by Google
Chengli Special Purpose Vehicle Co., Ltd.
Top 500 Chinese Private Enterprises
indoor.
8. All lines are protected by casing, and different colors are used to distinguish the line connection form and operation.
use.
9. Equipment on the dashboard in the pump room: liquid level gauge, tachometer, pressure gauge, vacuum gauge, equipment box lighting
Switches, etc.
Equipment equipped with table

order number	name	unit	quantity	remarks
1	fire hose	tray	10	Φ 65-20 6 disc 13- Φ 80-20 4 disc
2	water absorption tube	rice	8
3	water-strainer	piece	1
4	Water collector	piece	1
5	Three points of water	piece	1
6	Water suction tube wrench	individual	2
7	Ground fire hydrant wrench	piece	1
8	Underground fire hydrant wrench	piece	1
9	The belt bridge	individual	2
10	Water belt wrapped cloth	piece	4
11	Water belt hook	piece	4
12	a firemans axe	piece	1
13	Iron desperate	piece	1
14	spade	piece	1
15	pick hammer	piece	1
16	Waist axe	piece	1
17	Different diameter interface	single	2	Bubuckle Φ 65 variable Φ 80
18	Heterotypic different diameter interface	single	1	150/100
19	Switch DC water gun	branch	1
20	Flower water gun	branch	1
21	Foam spray gun	branch	1	PQ8
22	dry-chemical fire extinguisher	With	1	3 kg, ABC dry powder

1:What payment methods do you support? - We support T/T and LC and other ways you need.
2:What is your minimum order quantity? - One unit.
3. How about the delivery time? - Generally it will takes 10 to 30 days after receiving your deposit. The sactual date will be depended on your order and item. We will contact you if we confirm the delivery date. And we will track the goods all the time until the goods reach to the destination.
4.How can I confirm whether your products will meet my needs? -You can tell us your needs such as size, material, volume, height and other information, our professional sales will provide solutions.
5. How do you pack the products? - Standard shipping packaging.
6. How about the price? - To provide the top quality product with competitive price is our mission all the time. We want a long-term business relatonship with our customers rather than cooperate for once.
7. How can I trust you? - We have 15 years of experience in the trailer manufacturing field; and we have our own factory. - We have supplied for many famous company at home and abroad; - We want to provide great service for you rather than just provide a price and product for you; - To meet you is the first step, then we would like to make friends and maintain the business relationship with you all the time.

---
