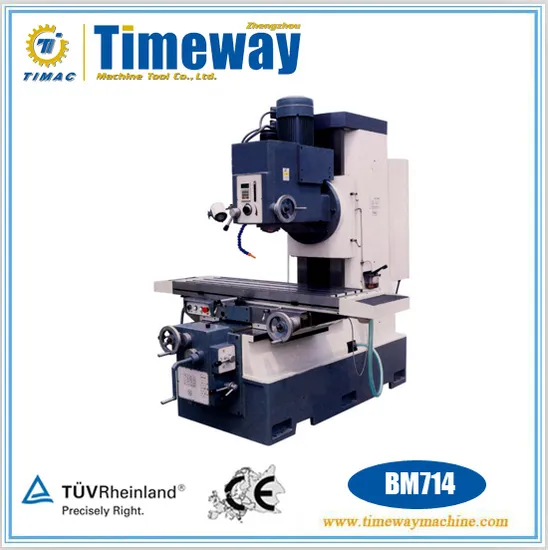

Fresadora / Bed Type Vertical Milling Machine (BM714)

Product Description

Bed Type Vertical Milling Machine For Sale (BM714)

PART 1---Features:
* Large sturdy box construction and ribbed frame to reduce vibration.
* Large flat guides, hardened and ground, guarantee stability, even under heavy milling loads.
* Manual quill stroke, service is effected via a handwheel.
* Infinitely adjustable speed range(18-1800rpm) with high torque and spindle brake.
* High table load capacity(800kg) due to massive MEEHANITE cast iron construction.

PART 2---Accessories
* Standard Accessories:
7:24 Middle sleeve, Shell end mill arbor, Wrench, Inner hexagon spanner, Milling arbor, Milling chuck
* Optional Accessories:
3 axes digital readout system (DRO), Vice, 58pcs clamping kits, Rotary worktable, Dividing head

PART 3---Parameter:

Technical specifications		BM714
Table dimensions		1400x400 mm
T-slots (number x width x spacing)		3x14x100 mm
Axis travel:	X	800 mm
	Y	400 mm
	Z	500 mm
Spindle taper		7:24 SK 50 (DIN 2080)
Spindle speed (infinite)		18-1800 rpm
Head swiveling angle		±30°
Quill travel		105 mm
Extension		510 mm
Spindle-to-table distance		150-650 mm
Axis travel:	X	18-627 mm/min (9 steps)
	Y	18-627 mm/min (9 steps)
	Z	1000 mm/min
Rapid traverse in Z-axis		1670 mm/min
Main motor		7.5 kW
Dimensions (LxWxH)		2290x1840x2120 mm
Weight		3860 kg

Our Advantages
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Packaging & Shipping
Company Profile
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
Customer visited
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
The following is one of the most satisfactory products recommended by customers, as well as our main product categories. you can click and view

Conventional Lathe	CNC Lathe	CNC Machining Center	CNC Milling Machine
Grinding Machine	Milling Machine	Special Use Lathe	Boring Machine

FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.

---
