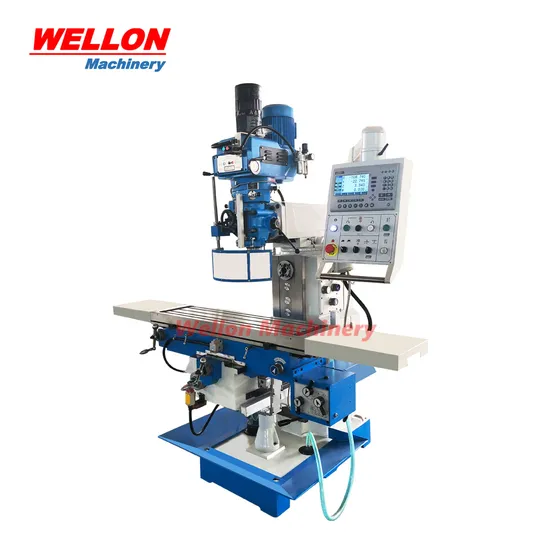

Universal of Turret Milling Machine (Turret Milling machine X6332C)

Product Description

Products Description:
**Milling had from taiwan, 5HP-ISO40-STEP pulley
**X, Y-axis auto-feeding, Z-AXIS with lifting motor table.
**Rectangular guideway available.
** manual coarse feed for quill
** reversing switch for forward reverse rotation
** head swivel left--right

SPECIFICATION//CODE NO.	UNIT	X6332C
TABLE SIZE	MM	1250× 320
SPINDLE SPEED RANGE	R/MIN	70-3620(V), 60-1350(H)
TABLE TRAVEL	MM	800/300/350
SPINDLE TAPER	MM	ISO40
? DISTANCE FROM SPINDLE NOSE TO TABLE SURFACE	MM	150-500(V)
DISTANCE BETWEEN SPINDLE AXIS AND COLUMN SURFACE	MM	150-550(V)
SPINDLE TRAVEL	MM	150(V)
MAIN MOTOR	KW	3.7(V)2.2(H)
OVERALL DIMENSION(L×W×H)	MM	1720× 1520× 2225
NET WEIGHT	KG	1770

Standard accessories:
Coolant,
Work light,
Chip tray,
Mill chuck,
Drill chuck,
Horizontal arbors,
Reduction sleeve,
Wrenches.
Machine vice.
Optional accessories:
DRO,
clamping kit,
Universal dividing head,
Rotary worktable.
CE,
Spindle glass.
