Screen Na2xs2y Medium Voltage Cable 1X185/25sqmm

Product Description

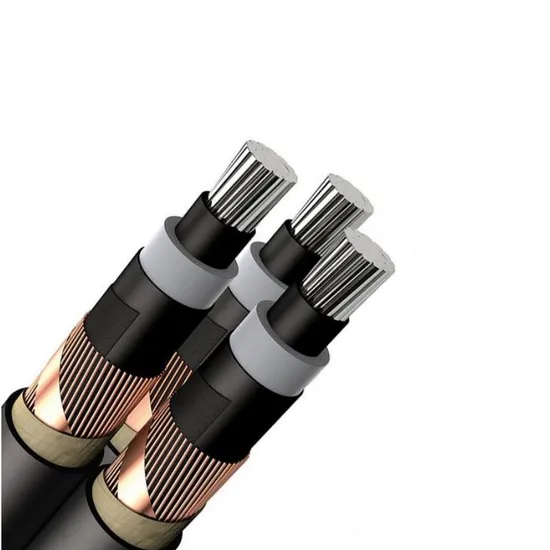

Product DescriptionScreen NA2XS2Y Medium Voltage Cable 1X185/25SQMM
APPLICATION
Medium voltage power cables for distribution networks and generation units, suitable for external installation including in direct in ground and in buried cable ducts. UV Resistant.
STANDARDS
IEC 60502-2, IEC 60228 ISO 4892-3
Conductor
Class 2 Stranded Aluminium
Conductor Screen
Semi-conductive material
Insulation
XLPE (Cross-Linked Polyethylene)
Insulation Screen
Semi-conductive material (bonded)
Screen
Copper wires and copper tape
Outer Sheath
MDPE (Medium Density Polyethylene) Product Parameters

NA2XS2Y XLPE MDPE 8.7/15 (17.5) kV Cable
DIMENSIONS
NO. OF CORES	NOMINAL CROSS SECTIONAL AREA	NOMINAL DIAMETER OF CONDUCTOR	INSULATION mm		METALLIC SCREEN		NOMINAL OUTER DIAMETER OF CABLE	NOMINAL WEIGHT	MAXIMUM PULLING FORCE	MINIMUM BENDING RADIUS
	mm2	mm	NOMINAL THICKNESS	Nominal Diameter Over	Nominal Cross Section mm2	Nominal diameter Over mm	mm	KG/KM	KN	m
1	50	8.25	4.5	18.5	16	22.4	27.1	780	1.5	0.41
1	70	9.5	4.5	19.7	25	23.6	28.4	950	2.1	0.43
1	95	11.3	4.5	21.5	35	25.4	30.2	1160	2.85	0.45
1	120	12.5	4.5	22.7	50	26.6	31.4	1400	3.6	0.47
1	150	14.2	4.5	24.4	50	18.3	33.1	1520	4.5	0.50
1	185	15.8	4.5	26.0	50	29.9	34.7	1660	5.55	0.52
1	240	17.9	4.5	28.1	50	32.0	36.8	1870	7.2	0.55
1	300	20.0	4.5	30.2	50	34.1	38.9	2080	9	0.58
1	400	22.9	4.5	33.1	50	37.0	41.8	2390	12	0.63
1	500	25.7	4.5	36.4	50	40.5	45.3	2810	15	0.68
1	630	29.3	4.5	40.3	50	44.4	49.3	3310	18.9	0.74
1	800	33.0	4.5	44.4	50	48.5	53.6	3920	24	0.80
1	1000	38.0	4.5	49.4	50	53.5	59.0	4680	30	0.89

NA2XS2Y 12/20 (24)kV Cable
DIMENSIONS
NO. OF CORE	NOMINAL CROSS SECTIONAL AREA mm2		NOMINAL CONDUCTOR DIAMETER	NUMBER WIRES CONDUCTOR	NOM. THICKNESS SEMI-CON. LAYER		NOMINAL INSULATION THICKNESS	MINIMUM INSULATION THICKNESS	NOMINAL DIAMETER OVER INSULATION
	Conductor	Screen	mm	mm	INNER mm	OUTER mm	mm	mm	mm
1	50	16	8.20	7*2.90	0.50	0.40	5.50	4.85	20.4
1	70	16	9.70	19*2.18	0.50	0.40	5.50	4.85	21.9
1	95	16	11.4	19*2.55	0.50	0.40	5.50	4.85	23.6
1	120	16	12.65	19*2.90	0.50	0.40	5.50	4.85	24.9
1	150	25	14.4	19*3.16	0.50	0.40	5.50	4.85	26.6
1	185	25	15.75	37*2.55	0.50	0.40	5.50	4.85	28.4
1	240	25	18.2	37*2.90	0.50	0.40	5.50	4.85	30.9
1	300	25	20.5	61*2.55	0.50	0.40	5.50	4.85	33.2
1	400	35	23.0	61*2.90	0.50	0.40	5.50	4.85	35.7
1	500	35	26.0	61*3.20	0.50	0.40	5.50	4.85	38.7
1	630	35	30.2	61*3.65	0.50	0.40	5.50	4.85	42.9

NA2XS2Y 18/30 (36)kV Cable
DIMENSIONS
NO. OF CORE	NOMINAL CROSS SECTIONAL AREA mm2		NOMINAL CONDUCTOR DIAMETER	NUMBER WIRES CONDUCTOR	NOM. THICKNESS SEMI-CON. LAYER		NOMINAL INSULATION THICKNESS	MINIMUM INSULATION THICKNESS	NOMINAL DIAMETER OVER INSULATION
	Conductor	Screen	mm	mm	INNER mm	OUTER mm	mm	mm	mm
1	50	16	8.20	7*2.90	0.50	0.40	8.00	7.10	25.2
1	70	16	9.70	19*2.18	0.50	0.40	8.00	7.10	26.7
1	95	16	11.4	19*2.55	0.50	0.40	8.00	7.10	28.4
1	120	16	12.65	19*2.90	0.50	0.40	8.00	7.10	29.7
1	150	25	14.4	19*3.16	0.50	0.40	8.00	7.10	31.4
1	185	25	15.75	37*2.55	0.50	0.40	8.00	7.10	33.2
1	240	25	18.2	37*2.90	0.50	0.40	8.00	7.10	35.7
1	300	25	20.5	61*2.55	0.50	0.40	8.00	7.10	38.0
1	400	35	23.0	61*2.90	0.50	0.40	8.00	7.10	40.5
1	500	35	26.0	61*3.20	0.50	0.40	8.00	7.10	43.5
1	630	35	30.2	61*3.65	0.50	0.40	8.00	7.10	47.7
