US$2,000.00-3,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Type
Surface Grinding Machine
Controlling Mode
Artificial
Cylindrical Grinder Type
Universal Cylindrical Grinder
Certification
CE, RoHS, ISO 9001
Wheel Size
200X13X31.75mm
Longitudinal Travel
500mm
Transport Package
Plywood Case
Production Capacity
10 PCS/Month
Product Description

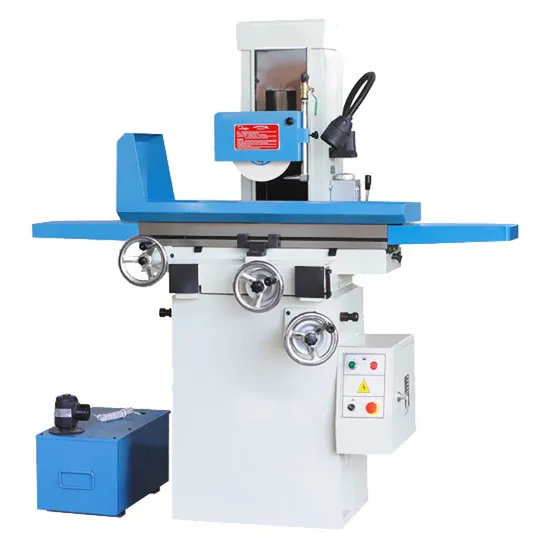

MANUAL SURFACE GRINDING MACHINE FEATURES:
1 Adopt the exceeding precise class7(P4 level) ball bearing for spindle
2 Bring transmission by synchronous belt, operating simple and convenient
3-axis manual operation, X, Y axis can be eletric auto operation.
High rigidity H-frame column with spindle center to table
Enhanced ribbed full cast iron base
Enlarged spindle housing for heavier grinding
Cartridge w / 4 preloaded class 7 (P4) bearing
Roller steel balls on linear table ways for easy and smooth longitudinal movements.
Double-V saddle ways for rigidity
Manual lubrication system
SPECIFICATIONS:
| TECHNICAL PARAMETERS | UNITS | M618A | M818A |
| Max.work piece to be Ground( L×W×H) | mm | 500×190×335 | 470x220x350 |
| Max. Grinding Length | mm | 500 | 470 |
| Max. Grinding Width | mm | 190 | 220 |
| Distance From Table Surface To Spindle Center | mm | 335 | 450 |
| Slide way | | V-type rail with Steel-ball |
| V-type rail with Steel-ball | Kg | 200 | |
| Table Size (L×W) | mm | 460×180 | 210x450 |
| Number of T -Slot | mm×n | 12×1 | 12x1 |
| Cross Feed On Handwheel | mm | 0.02/Graduation 2.5/revolution |
| Vertical Feed On Handwheel | mm | 0.01/Graduation 1.25/revolution |
| Wheel Size (dia.×width×bore ) | mm | 200×16×31.75 | 200x13x31.75 |
| Spindle Speeds | 50Hz | rpm | 2850 | 2850 |
| 60HZ | 0-6000 | 3450 |
| Spindle Motor | Kw | 1.1 | 1.5 |
| Coolant Pump | Kw | 0.4 | 0.5 |
| Machine Size (L×W×H) | mm | 1550×1060×1590 | 1330x1150x1675 |
| Packing Size (L×W×H) | mm | 1060×1170×1870 | 1400x1120x1985 |
| Gross,Net | T | O.75, 0.65 | 0.8 |
>>
