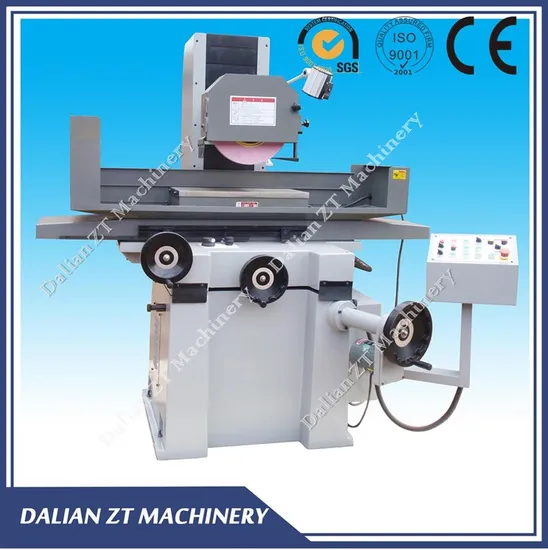

Small PLC Surface Grinding Machine Column Moving FG3063AH FG3063AHR

Product Description

Features:
Saddle moving grinding machine; Well designed perfect symmetrical structure ensures the machine is very suitable for precision grinding.
Saddle makes elevating movement and is driven by manual (M series), AC motor (R series), or AC servo motor (A series).
CE standard electric requirements;
Independent hydraulic station;
Turcite coated guide way;

Item	SG-3063M	SG-3063R	SG-3063A
Table size	305*635mm	305*635mm	305*635mm
Magnetic chuck size	300*600mm	300*600mm	300*600mm
Max. Distance from spindle center to table	580mm	580mm	580mm
Table cross travel	340mm	340mm	340mm
Table longitudinal travel	765mm	765mm	765mm
Max. Loading capacity (including chuck)	270kg	270kg	270kg
Speed of table longitudinal movement	5-25m/min	5-25m/min	5-25m/min
Cross motion
Intermittent feedrate	0.1-8mm/t	0.1-8mm/t	0.1-8mm/t
Rapid speed	990mm/min	990mm/min	990mm/min
Feed of handwheel	0.02mm/div	0.02mm/div	0.02mm/div
Vertical motion
Auto down feed rate			0.005-0.5mm/t
Rapid down speed		650mm/min	480mm/min
Feed of handwheel	0.005mm/div.	0.005mm/div.	0.005mm/div.
Spindle speed	1450(50Hz)/1750(60Hz)
Grinding wheel size	350*40*127mm
Spindle motor power	4kW
Floor space (L*W*H)	2900*2200*1900mm
Gross weight	2800kg
Packing size	2350*2200*2210mm

FAQ
1. MOQ
1 set
2. DELIVERY TIME
It depends on the machine and model you choose. Mostly 2 months - 4months. All machines are 100% new and not used.
3. PAYMENT TERM
T/T 30% down payment when order, 70% balance payment before shipment.
4. WARRANTY PERIOD
13 months from the date of B/L, during the warranty period, daily damage parts will be supplied freely, the after sale service will be done by dealers . After warranty period, the spare parts will be supplied at factory price.

---
