China Wide Belt Sander Manufacturer Double Heads Sanding Machine

Product Description

Product Description

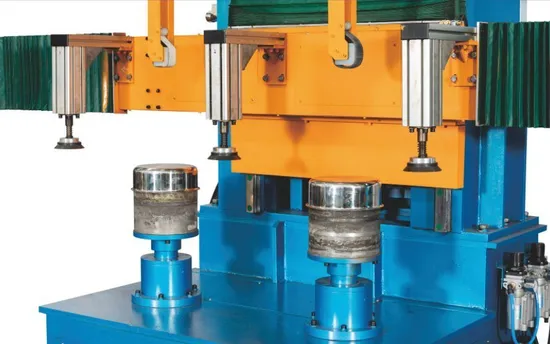

NSJ-22K double heads vertical belt sanding machine is a new generation of automatic sanding machine continuously developed by our company based on a series of products. It is designed in an integrated manner with a three suction sucker translation manipulator, and can complete two ditferent processes of sanding and automatic loading and unloading of workpiece. The machine adopts a Field Bus Control System and sanding process software independently developed by our company. The sanding mechanism and manipulator are equipped with servo motors with absolute value encoders, which are simple to operate and stable in performance. The process formula can be saved and invoked to facilitate the replacement of different products, saving secondary debugging time, and achieving large-scale automated sanding production operations.
Product Parameters

Model	NSJ-22K
Size of workpiece	Dia.:Φ140~380mm;:250mm
Size of belt	Max length:100m Standard width:33mm
Speed of workpiece	100~2000rpm
Speed of sand rod movement	V=0~250mm/s
Power	Workpece motor:4KW×2
	Translational hand: Z-axis 2KW,W-axis 1.5KW
	Sanding: X-axis 1.5KW,Y-axis 4.4KW
Total power	17.5KW
Dimension	About 2750×1650×2500

Company Profile


Packaging & Shipping
FAQ
Q1: How is the warranty?A1: Warranty time is 12 months after BL date.Q2: Can we visit your factory before order?A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking. Q3: Do you have a stock?A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.Q4: What's the MOQ?A4: One set only.Q5: Can you provide customized machines?A5: Yes, we can design and manufacture according to your specific requirements.

---
