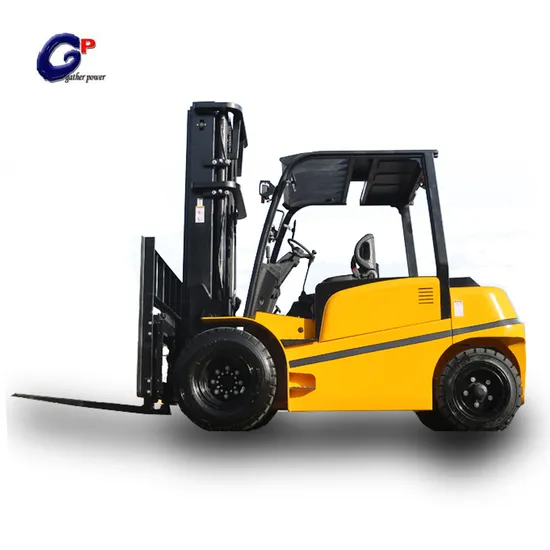

Warehouse Battery Powered Compact 5 Ton 6ton 7ton Electric Forklift

Product Description

Italy SME/USA curtis motor
Suspended brake system
USA Curtis electric control
Multi-stage pump control, efficiency hydraulic system
GP 5000-7000kg Capacity 4-Wheel Electric Forklift Truck

		4.5-7ton electric forklift
sepcifications
Model			CPD45	CPD50	CPD60	CPD70
Power Type			Electric	Electric	Electric	Electric
Load Capacity		kg	4500	5000	6000	7000
Load centre		mm	500	500	500	500
Tyre			Pneumatic Tyre	Pneumatic Tyre	Pneumatic Tyre	Pneumatic Tyre
Front Tyre			28×12.5-15-24PR	28×12.5-15-24PR	28×12.5-15-24PR	28×12.5-15-24PR
Rear Tyre			7.00-12-12PR	7.00-12-12PR	7.00-12-12PR	7.00-12-12PR
Overall Dimension		mm	3100*1600*2255		3100*1600*2265
Lift Height		mm	3000	3000	3000	3000
Fork Size	L×W×T	mm	1070×150×50	1220×150×50	1220×150×70	1220×150×70
Mast Tilt Angle	F/R	.	6/9	6/9	6/9	6/9
Mast Lowered Height		mm	2330	2330	2450	2450
Mast Extended Height(with backrest)		mm	4165	4165	4165	4165
Length to face of fork(Without fork)		mm	3100	3100	3100	3100
Overall Width		mm	1600	1600	1600	1600
Overhead Guard Height		mm	2255	2255	2265	2265

1. Fashionable appearance, following the classic appearance style of XC lithium-ion special vehicles, with strong and smooth lines, exquisite and compact overall, fashionable and stable overall
2. Ultra long endurance, equipped with a large capacity lithium battery as standard, with a capacity 20% larger than that of a regular low-voltage 80V/404Ah lithium battery, which can meet the requirements of long endurance. Equipped with a 317V automotive level high voltage platform, the vehicle has a smaller current and extremely low heat loss.
3. Fast charging comes standard with super fast charging technology, which can charge 1C. The standard battery can be fully charged in 1 hour, compatible with the electric vehicle charging station function, making charging more convenient.
4. The driving and working system under the internal combustion condition adopts the automobile level permanent magnet synchronous system, which is matched with the reducer with large speed ratio. The driving speed, climbing gradient and acceleration performance exceed that of the internal combustion vehicle. The driving axle, steering axle and tires of the internal combustion forklift can meet the use requirements under the high-intensity condition.
5. Safe and reliable. The entire vehicle adopts a sealed cover design, with a high level of protection that is not afraid of harsh working environments, ensuring safety and reliability. The electrical system is equipped with high-voltage interlocking and insulation detection, achieving safety protection that surpasses that of automobiles
6. Stable frame and arm structure, with strong durability
7. Convenient Maintenance: The machine cover is equipped with a locking buckle, making it easy to replenish fluids and maintain. The water tank cover is tool free to disassemble, making it easy to operate and convenient for cleaning and maintenance.

---
