US$13,600.00-14,100.00
|
1 Piece
(MOQ)
|
Basic Info.
Type
Concrete Mixing Truck
Machining Process
Hydraulic
Max Loading Capacity
2880kg
Overall Size
6100*1850*3000mm
Drive Mode
Four Wheel Drive
Specification
OUTPUT 1 CBM
Production Capacity
100pieces Per Week
Product Description

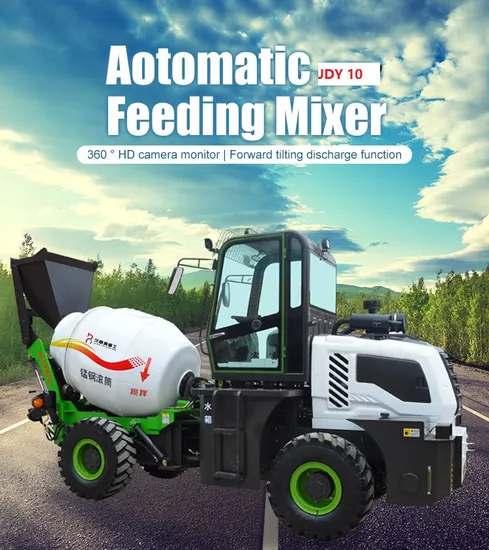

JDY10 1 M3 SELF LOADING CONCRETE MIXER TRUCK
Self loading concrete mixers can automatically produce and transport concrete on-site for its self-loading design, it is really efficient! During project, it loads materials by self, don't need any other auxiliary equipment, and it has characteristics of small volume, four wheels-driving and steering. What's more, it can discharge concrete at 290 degrees, which is much more convenient in all kinds of concrete production construction site, particularly small and narrow construction sites, very cost-saving for the majority of users. Self loading concrete truck mixer mainly mixes plastic concrete and semi-plastic concrete.
MAIN PARAMETERS:
| Specificatons | Parameter |
| Equipment model | JDY-10 |
| Actual stirring capacity | 1.0M3 |
| Rotary drum capacity | 1.4M3 |
| Degree of bias | 16° |
| Rotational speed | 0-14 R/MIN |
| Direction of rotation | Feed:clockwise/ Output: Anticlockwixe |
| Mixing drum blade | Two sets of spiral blades and four sets of auxiliary blades |
| Slump of concrete | 70-260MM |
| Hydraulic Power Transmission System |
| Pump model | CBGV-4025 |
| Hydraulic motor model | BMSS-250 |
| Reducer ratio | 1:10 |
| Water supply |
| Tank capacity/water supply form | 540L/automatic timing water supply mechanism with automatic timing |
| main performance paprameters of the chassis & the engine |
| Engine type/displacement | CF4B68G-Z-13B2/CF4C100T-Z-13B2 |
| Model | Straight injection type four stroke water cooled supercharged diesel engine |
| Rated power | 55/78KW/2400R/MIN |
| Max torque | 255/380/1500-1800N.M/R/MIN |
| Max running speed | 24KM/H |
| Min steering radius | 5000MM |
| Climbing capacity | 26% |
| Tire | 23.5/70-16 |
| Driving way | 4×4 |
| Weight | 4580KG |
| Maximum load capacity | 2800KG |
| Whole machinery weight | 7380KG |
| Overall size(L*W*H) | 6100*1850*3000MM |
ADVANTAGES:
