PP PE LDPE Plastic Recycle Machinery Double Stage Plastic Extruder

Product Description

1.Belt conveyor: Transfer the raw material to the crusher for crushing and washing
2.Crushing and washing machine:The machine can crush the waste plastic into small piece besides wash them and them put them into the plastic granule making machine.
3.Conveyor:delivery crushered raw material to the pool cleaning
4.Pool:Clean the crushed raw material and precipitate the impurities.
5.Pool pulley:Slide the crushed raw material of the pool to reach the other end.
6.dewatering machine:Remove the broken plastic from the pool, with the function of dehydration
7.Conveyor+Automatic feeder:converyor send broken raw materials to the feeder,the feeder connect with pellet making machine,replace the artificial pressure into the granulator

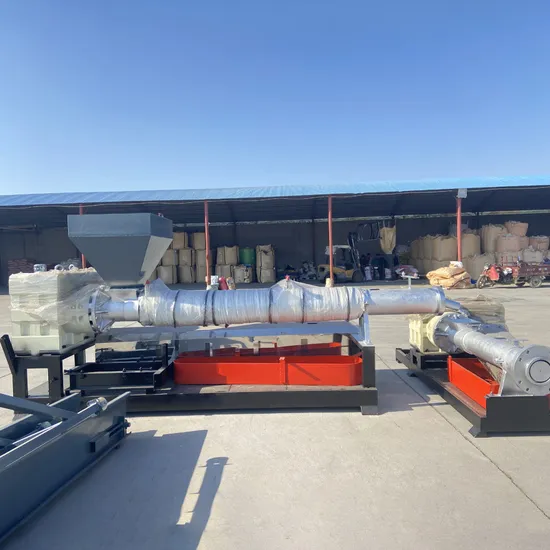

8.Host pellet making machine :The raw material is heated and melted in this machine
9.Second pellet making machine:The melted plastic is drawn through the die in the secondary machine
10.water tank :is used to cool the plastic pellet and send the pellet to next step-plastic cutting machine.
11.Plastic cutting machine:This machine is used to cut the plastic strip into small pieces and the size of pellet can be adjusted as your requirements.
12:Plastic pellet packing machine:packing the final product(plastic pellet)
13:Conveyor:delivery the plastic pellet to the automatic packing machine
14:control cabinet:The temperature control cabinet control the temperature of the plastic pellet machine and also make people easy operate the machine.

---
