20 Discs Hydraulic Disc Harrow with Strong Ability to Cut Soil

Product Description

Product Description
This harrow has high harrowing capacity with reasonable utilization of power, great ability to cut and shatter the soil, level soil surface and loosen soil after harrowing, being well adaptable for heavy clay soil wasteland and weedy fields as well. This harrow has been adopted combined structure whose rigid frame is welded with rectangular tube, equipped with hydraulic up and down road wheel spring leveling device and tapered roller bearings and square/round inner hole special for disc harrow. Therefore this machine is easy to move with small turning radius simple to be adjusted and maintained.

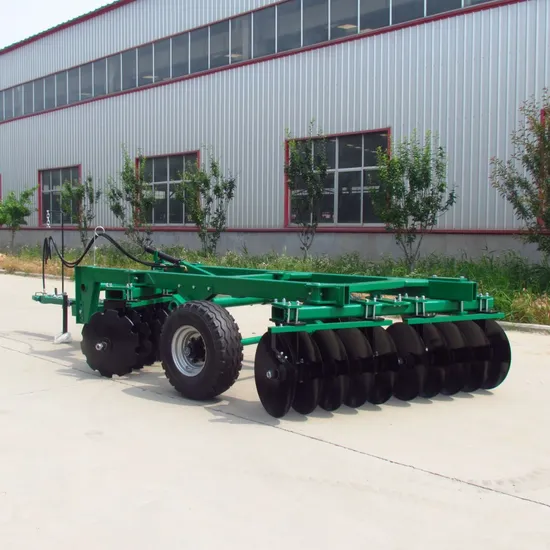

Detailed Photos

Product Parameters

Model	1BZX-2.0	1BZX-2.2	1BZX-2.35	1BZX-2.5	1BZX-3.0	1BZX-3.5
Number of disc	18	20	22	24	28	32
Diameter of disc(mm)	660*6
Working width(mm)	2000	2200	2350	2500	3000	3500
Weight (kg)	1740	2050	2150	2250	2450	2950
Tractor(hp)	85-95	95-100	100-130	130-160	140-180	180-250
Disc spacing	9"(230mm)
Axle size	Square or round 1.4/7"(40mm)
Depth cut	7"-8.5/8"(180-220mm)
Bearing Assembly	Grease or oil bath

Packaging & Shipping

Company Profile
Shandong Yuntai Machinery Co.,Ltd., founded in March 2005, registered capital 100 million CNY, covering an area of 135,000 square meters, is a leading exporter of agricultural machinery and accessories.
YUNTAI produce 20,000 sets tractor implements and 1,500,000 pcs of accessories annually and have its owe R & D team and strong production capacity.
YUNTAI produce agricultural machinery and accessories matched with 18 to 500 horsepower tractor. Including the tillage, fertilizering,Seeding, harvesting, transporting and plant protection machinery. Main equipments are disk plow, disc harrow, subsoiler, rotavator, rear blade, spreader, mower, trailer, grain cart, potato harvester, thresher etc. Main accessories are farm disc blade, plowshare, plow shovel, harrow tine, bearing assembly, harrow axle, trailer axles ,forging parts, casting parts and so on.
YUNTAI company have advanced production lines of machining, welding, punching, forging, sand blasting and powder coating. We also have two automated heat treatment lines and the heat treatment production technology is at the top level in the industry. Our products are exported to more than 70 countries and regions, such as the United States, Germany, France, Australia,Asia, Africa,etc.
YUNTAI is in Qihe Economic Development Zone, Dezhou city, Shandong Province. It is near to Jinan airport and Jinan railway station , From Jinan air port and Jinan west train station only takes 30 minutes by car.

Certifications
After Sales Service
Any question or problem welcome to contact us:
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 7 days if the goods are in stock. or it is 30-50 days if no stock, it is according to quantity.

Q: Do you provide samples ?
A: Yes, we could offer the sample .

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before delivery
Q: Which is your nearest port ?
A: QINGDAO

---
