Customizable Fiberglass Paint Stop Spray Booth Air Filter Manufacturer 50-60mm or 90-100mm

Product Description

50/75 /100mm Thickness Paint Stop /paint arrester/floor filter
Mainly products:Pre-filter Media;Spraybooth Ceiling Filter;Paint Stop/Floor Filter;Cell Pockets;Activated Carbon Filter Media;High Temperature Fire-proof Media;Pre/medium-efficiency filter media;Prefilter;Pre Efficiency Pocket Filter;Medium Efficiency Pocket Filter;Heat-Resistance Filter;Medium/Sub-HEPA Filter;HEPA Filter;Chemical Filter;Paint Mist Filter;Purification equipment;Activated Carbon Nonwoven;Activated Carbon Filter.
Product introduction

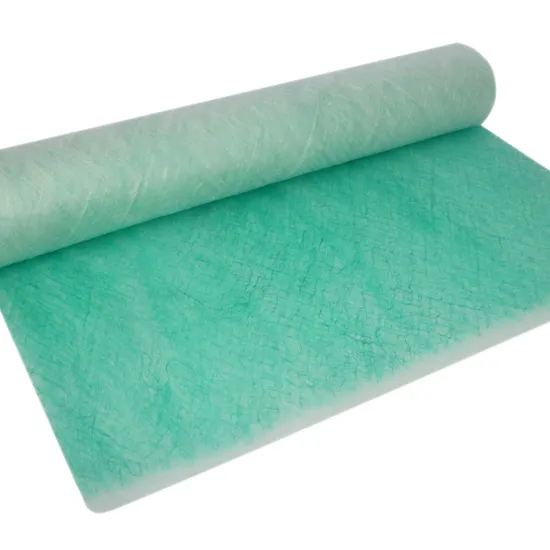

Paint Stop/Floor Filter
Application: It is used in heat recovery systems and high-quality paint mist filtration of surface coating with the high rate of capturing particles and long life-cycle.
Type:
PA-50/PA-100;This product is composited of continuous monofilament glass fiberglass and it is progressively encrypted from the inlet side to the outlet side in fluffy state. Filter Material:
The inlet side is green, outlet side is white with good compressibility properties to ensure its stability and strong nature and to ensure that filter is not loose, scattered, and more conducive to store mist and dust. Speciality:
Temperature resistance: 170 ºC;Conforming to the European DIN53438-F1;The average mist capturing rate: 93-97%.
Specification:

Type	Average Arrestance	Nominal Velocity (m/s)	Rated Airflow (m3/h)	Initial Resistance (Pa)	Final Resistance (Pa)	Dust Holding Capacity (g/m²)	Thickness (mm)	Sizes
PA-50	93%	2.5	9000	20	150	3500	50	0.8*20 M
								1.0*20 M
								2.0*20 M
PA-100	98%	2.0	7200	25	200	4700	100	0.8*20 M
								1.0*20 M
								2.0*20 M

Company Profiles Founded in 1995,Guangzhou Sun Holy Wind Air Cleaning Products Co.,Ltd. is a global comprehensive manufacturer of synthetic fiber air filter materials, filters and customized filter units. Our main products are pre-filter media, 600G/500G spraybooth ceiling filter, paint stop,cell pockets,pre/medium-efficiency filter media, prefilter,medium/sub-HEPA filter,HEPA filter and so on.
About us
FAQ
1. Factory or trading company?
We are a manufacturer for air filter in China since 1995.
2.Production time
5-7 days.We have production lines for filter media with the most advanced equipments and stable workers to control the quanlity and capacity.
3.Free Sample
Free sample will be sent on request in 2 days for your testing
4.OEM made
OEM is warmly welcomed
5.Payment terms
T/T,L/C,etc.

---
