Custom Round LCD Display Module Screen with Touch Panel Around 0.9 1.3 1.6 2.1 2.76 3.4 3.6 4.0 5.0 Inches LCM Fog Solution

Product Description

Product Description
I. Introduction DFXZK480480CX-2.1 series is based on the ARM architecture linux system serial port screen hardware platform research and development Can graphic display system, users through the serial port intelligent display terminal knob and touch screen can easily achieve the function selection Optional, the built-in serial port command function of the chip includes picture display, GIF animation display, circular picture display, boot painting
Surface display, progress bar display, text string display, two-dimensional code generation, and geometric graphics display picturesque line, drawing Circle, draw triangles, draw rectangles and other functions. Thanks to the dual-core 1G Hz processing power, processing speed is faster, And the screen has a very good color expression (18BIT), is the product of new research and upgrade better options.
1. 2.1 inch round screen, 480x480 resolution;
2.Knob + confirm button can realize man-machine interaction;
3.Capacitive touch screen can realize man-machine interaction; (Touch is optional)
4. The UART supports a maximum communication rate of 115,200 BPS.
5.It can store pictures and characters and update them through serial port
6.storage capacity can be customized, the biggest can support 128 M;
7.Supports the RTC clock function (optional).
8.Display data can be operated by variables;
9.Support USB flash drive upgrade, file read and write, and database storage;
10.LINUX HMI solution, supporting secondary development.

Size	2.1 "TFT LCD
Display screen size	56.18*59.71*2.3
Shell size	79.07*79.07*41.28
Resolution	480*480
Color	65K
Brightness	300cd/m²

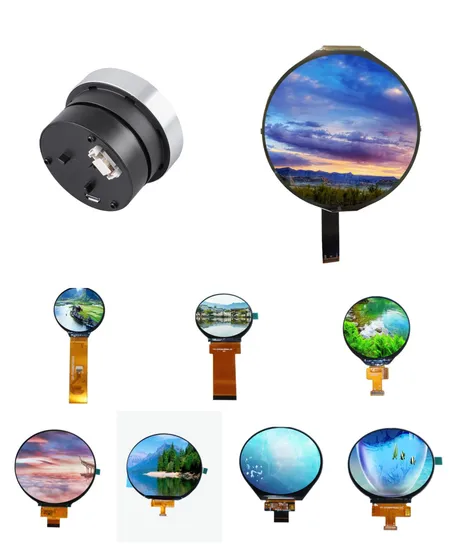

Detailed Photos
Product application case (picture) :

Rich UI interface (illustrated) :
