Orange Blue Yellow White Medium Duty Pump PVC Suction Delivery Water Hose

Product Description

Product Description Medium Duty Orange Pump PVC Suction Water Hose

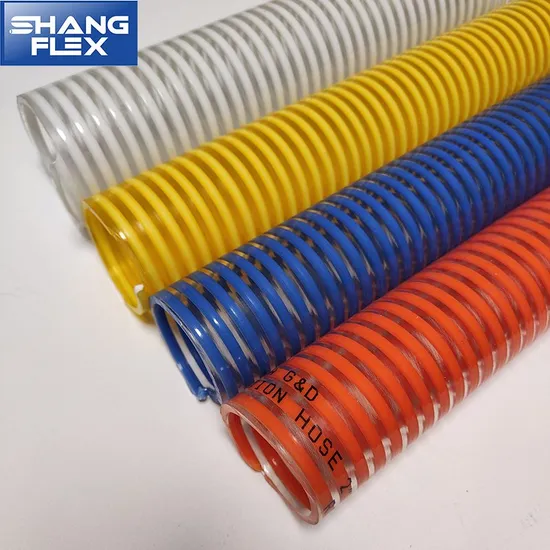

Detailed Photos PVC Suction Hose
Product Parameters Feature:
smooth pvc inner tube and smooth cover , constructed with rigid pvc helix inside Minus pressure resistant , high working pressure excellent flexibility , extrem bending radium resistant to crushing , abrasion and most chemicals high and low temperature resistant , working pressure : -5ºC to 70ºC Applications:
this hose is designed to delivery and suction water ,slurry with pump in irrigation , mining , construction , drain cleaning truck , water truck.
Medium Duty - Specifications

Inner Diameter		Outer Diameter	Length	Working Pressure	Burst Pressure	Weight
Inch	mm	mm	Mtr/Roll	bar	bar	kgs/Mtr
3/4"	19	23	50	8	24	0.23
1"	25	29	50	8	24	0.29
1-1/4"	32	36	50	7	21	0.35
1-1/2"	38	42	50	6	18	0.45
2"	50	54	50	5	15	0.55
2-1/2"	63	69	50	5	15	0.88
3"	75	81	50	4	12	1.16
4"	100	108	50	4	12	1.95
5"	125	135	30	4	12	3.00
6"	150	163	30	4	12	3.60
8"	200	214	10	4	12	6.30
10"	254	270	10	4	12	10.00
12"	305	321	10	4	12	14.00
14"	355	375	10	5	15	19.00

Heavy Duty Specifications

Inner Diameter		Outer Diameter	Length	Working Pressure	Burst Pressure	Weight
Inch	mm	mm	Mtr/Roll	bar	bar	kgs/Mtr
3/4"	19	25	50	9	27	0.28
1"	25	31	50	9	27	0.35
1-1/4"	32	40	50	7	21	0.45
1-1/2"	38	48	50	7	21	0.80
2"	50	60	50	7	21	1.10
2-1/2"	63	73	50	6	18	1.30
3"	75	87	50	6	18	1.85
4"	100	116	50	6	18	3.70
5"	125	141	30	5	15	4.70
6"	150	170	30	5	15	7.20
8"	200	216	10	4	12	7.00
10"	254	274	10	4	12	12.00
12"	305	329	10	4	12	18.00
14"	355	379	10	4	12	20.00

Fiber Reinforced PV Sucton Hose - Specifications

Inner Diameter		Outer Diameter	Length	Working Pressure	Burst Pressure	Weight
Inch	mm	mm	Mtr/Roll	bar	bar	Kgs/Mtr
2"	51	66.00	30	5	15	1.10
2-1/2"	64	71.00	30	5	15	1.80
3"	76.20	92.00	30	4	12	2.20
4"	102.50	121.00	30	4	12	3.20
5"	127.50	152.00	20	3	9	4.50
6"	154.50	180.50	20	3	9	5.80
8"	203.50	232.00	12	3	9	8.40

Production Details:

Packaging & Shipping

Company Profile QINGDAO SHANGFLEX TECH CO.,LTD is located in Shandong , China . We supply OEM & ODM flexible hoses, covering PVC HOSE , RUBBER HOSE , DUCTING HOSE, PU TUBE , PNEUMATIC HOSE and HOSE ASSEMBLIES , COUPLINGS , FITTINGS, CLAMPS .
Our factory was established in 2010. There are 3 professional workrooms , 1 material granule production workroom , 1 assembly workroom, 3 standard warehouses , including 100 production lines ,150 skilled technicians ,30 senior technical personnel and 5 engineers. Annual output amounts to 50,000 tons and production capacity per month can meet 500 tons.
Our factory has got ISO9001:2008,ISO14001:2008. All products can be made as the requirement of American Standard , European Standard and Australian standards. FDA , REACH , ROHS , BS3746, AS2070 .
We have professional sales and servie teams. We have exported to more than 50 overseas countries and over 100 steady customers , covering America , Canada , Australia , United Kingdom , Brazil , Agentina , Indonesia , Malaysia , Turkey , UAE,South Africa ,etc.
We are reliable source of " Made in China " . We are professional manufacturer and exporter . Your every inquiry will be followed fast by professional staff.

Factory
Granuel Room
Laboratory
Workroom and Production Machine
Warehouse

Certifications

---
