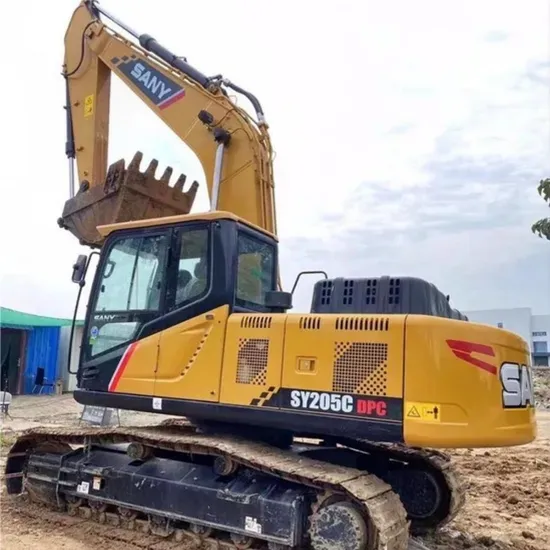

Sy205c Amphibious Excavator Marine Track Excavator for Road Construction

Product Description

Product Parameters

Model	Unit	Value
Operating weight	Kg	30500
Boom and stick length	mm	13000
Bucket capacity	m³	0.5
Working scope	Unit	Value
Max digging radius	mm	14360
Max digging height	mm	14690
Max digging depth	mm	9750
Max unloading height	mm	11775
Min turning radius	mm	4180
Main performance	Unit	Value
Driving speed	km/h	4~2.3(Max/min.)
Swing speed	r/min	11
Gradeability	%	30
Ground specific pressure	kPa	22.8
Bucket digging force	kN	120
Stick digging force	kN	85
Travel motor	Unit	Value
Motor model	/	TM60
Output torque	N.m(kgf.m)	67914(6930)
Continuous pressure	MPa(kgf/cm2)	34.3(350)
Engine	Unit	Value
Engine model	ISUZUJAPAN	4M50
Rated power/speed	Kw/rpm	118/2000
Max torque/speed	Nm/rpm	580/1600
Displacement	L	4.9
Hydraulic system	Unit	Value
Main pump	/	2 Piston pumps
Main pump rated flow	L/min	/
Main safety valve pressure	MPa	/
Walking system pressure	MPa	35
Swing system pressure	MPa	26
Pilot system pressure	MPa	/
Oil capacity	Unit	Value
Fuel tank volume	L	340
Hydraulic oil tank volume	L	239
Engine oil capacity	L	22
Dimensions	Unit	Value
Overall machine length	mm	13000
Overall machine width without side pontoons	mm	4500
Overall machine height(to boom)	mm	4020
Turntable width	mm	2875
Single pontoon length	mm	8140
Single pontoon width	mm	1500
Single pontoon height	mm	1800
pontoon overall width	mm	4500
Pontoon landed length	mm	3400
Track gauge	mm	2990
Distance between sprocket and idler	mm	7120
Counterweight ground clearance	mm	1995
Min ground clearance	mm	1210
Max turning radius of the tail	mm	2900
Optional	Unit	Value
Side pontoon length	mm	7000
Side pontoon width	mm	1250
Side pontoon height	mm	1000
Positioning piles	PCS	4
The length of Positioning piles	mm	6000

Detailed Photos
Product Description
1. Wetland Restoration: Ideal for restoring marshy areas, removing invasive species, and reshaping terrain.2. Dredging Operations: Efficiently clears sediment from rivers, lakes, and ponds, reaching inaccessible areas.
3.Aquaculture Construction: Essential for building ponds, creating access channels, and installing aquaculture infrastructure.4. Flood Control: Crucial in managing water levels, clearing debris, and reinforcing embankments during flood events.5. Environmental Remediation: Safely removes contaminated soil and debris from water bodies in polluted sites.
Excavator Parts
Packaging & Shipping

Related Products
Company Profile
Hunan Sanjingzhongbang Import and Export Trading Co., Ltd., located in the Longping High-tech Park of Furong District,Changsha,China(Hunan) SAN JING ZHONG BANG Free Trade Pilot Zone, is a subsidiary of Changsha Sanjingzhongbang capital of RMB 18million. The company has affiliated companies such as Machinery Equipment Co.. Ltd.. established in May 2016 with a registered Hunan Sanjingzhongbang Machinery Equipment Co..Ltd., and a branch in Saudi Arabia. It is a service-oriented company specializing in the export of new and used concrete pump trucks, concrete mixers, cranes, excavators and other construction machinery, with ultra-high pressure concrete pumps as its feature. The company also provides a full range of concrete equipment and mixing equipment leasing services.The company is committed to providing high-quality and cost-effective engineering machinery,repair services, and supporting spare parts for China and other countries. It has also cultivated a group of equipment operators and maintenance personnel who are thoughtful, communicative, responsible, and safety-conscious. Upholding the core values of "Being a good person before doing things", and relying on a sound service and technical support system, the company aims to become a trusted partner for customers both domestically and abroad.
Customers of Sanjingzhongbang from all over the world speak highly of our top quality construction machinery and equipmentas well as our unbeatable services, Our overseas service staff always hold "Serve you serve the world" to offer overseascustomers top class service and obtain high praise from them.
FAQ
Q: What types of payment terms are accepted?
A: We accept various payment terms including L/C,T/T,D/P, and Western Union.Q: What certifications do your machinery products have?
A: Our machinery products come with certifications such as CE, ISO, Gost, EPA(USA), and CCC.Q: What is the delivery time of your products?
A: 7-30 days after receiving the deposit.Q: What is the minimum order quantity(MOQ)?
A: The MOQ of our products is 1 piece.

---
