Ready Urban Construction Concrete Mixer Ttruck 2.6 Cubic Meter

Product Description

Product Display
Product details and accessories

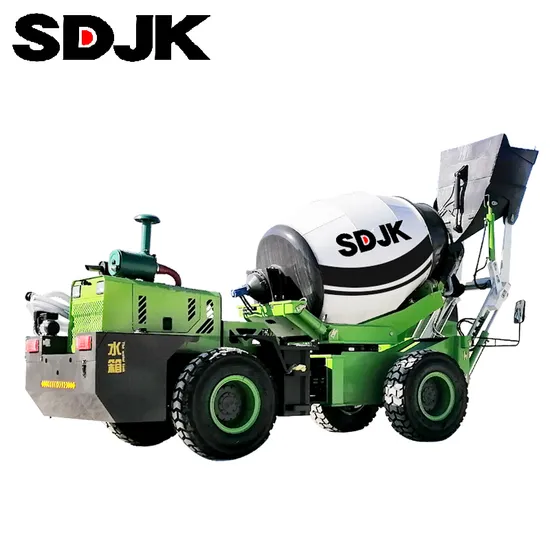

The mixer size is small, which is suitable for limited place and widely used in new rural construction, urban construction, tunnel, airport, seaport, high-speed rail site, remote areas where there are no electric power, middle projects, farmer's houses, building, country road, irrigation, reservoir, mine, rural bridges, high-way road etc, which characterized in saving labors, high efficiency concrete output. 1.JBC-26 Self Loading Concrete Mixer Truck is a integration of mixer and wheel loader. It can automatically load, measure, mix and discharge concrete mixture. 2. Cab and mixer drum can be integrated , rotate 270°together, which makes forward-reverse universal. Rolling drum can also be lifted up 20°to make discharge concrete easier. Rotational speed of mixer drum is up to 20 rpm that improves working efficiency by 30%. 3. It makes mixer truck more safe and stable by using wet brake of front axle, air brake, double brake system and double front tires. 4. Equipped with change-over switch, the centrifugal water pump can suck water into water tank and mixer drum respectively. 5. 16mm thick high-strength steel plate, enhances load capacity and stability of the mixer truck.

Model	JBC-26	Max. Water suction Volume	250 L/min. (Self-priming electronic water pump)
Mixing Capacity	2.6 m³	Water tank Volume	2x250 L
Geometrical Capacity	3.6 m³	Max. Travel Speed	30 km/h
Concrete Output	2.6m³/batch, 10.4m³/h	Grade ability	40°
Drum Rotating Speed	13 rpm	Min. Turning Radius	5300 mm
Drum Rotating Angle	270°	Operating Weight	6500 kg
Model	4102	Max. Load	6200 kg
Type	In-line, 4-Cylinder, 4-Stroke, Turbo Charged, Water Cooled	Max. Gross Weight	12700 kg
Rated Power	78 KW (106HP) @ 2400 rpm	Overall Dimension (L×W×H)	7800*2750*4100 mm
Emission Standard	Euro II	Fuel Tank Volume	75 L
Loading Bucket Capacity	0.6 m³	Total Hydraulic System Capacity	75 L
Loading Times to Full Drum	5 Times	Oil Tank Volume	16 L
Discharge chute	2 Sets
