US$800.00
|
5 Square Meters
(MOQ)
|
Basic Info.
Pixel Configuration
1R, 1G, 1B
Display Function
Video Display, Image & Text Display, Text Display, Market Display
Average Power Consumption
350W / m²
Pixel Density
65536dots/M2
Display Type
LED Video Display
Application5
Meeting Room
Application6
Conference Room
Application9
Education Institution
Application14
Public Plaza
Application15
Shopping Building
Transport Package
Flight Case
Production Capacity
50000m2 Per Month
Product Description

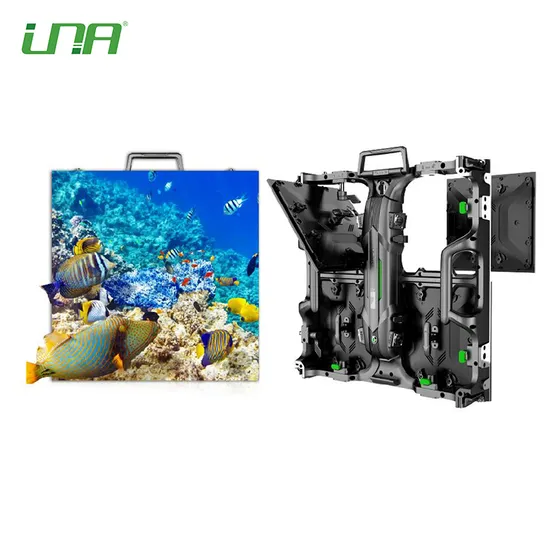

Events Die-Cast Aluminum Rental LED Sign Video Screen Smart P3.91 Full Color Digital Display
Product Description:
| Specifications |
| Pixel pitch(mm) | 2.6 | 2.976 | 3.91 | 2.976 | 3.91 | 4.81 |
| LED type(SMD) | 2020 | 2020 | 2020 | 2020 | 2020 | 2020 |
| Module Size(mm) | 250x250 | 250x250 | 250x250 | 250x250 | 250x250 | 250x250 |
| Module Resolution(dot) | 96x96 | 84x84 | 64x64 | 84x84 | 64x64 | 52x52 |
| Module Pixel | 9216 | 7056 | 4096 | 7056 | 4096 | 2704 |
| Pixel Density(dot/sqm) | 147456 | 112896 | 65536 | 112896 | 65536 | 43264 |
| Best View Distance | >2.5m | >3m | >4m | >3m | >4m | >5m |
| Cabinet size(W*H) mm | 500x500 | 500x1000 | 500x500 | 500x1000 | 500x500 | 500x1000 | 500x500 | 500x1000 | 500x500 | 500x1000 | 500x500 | 500x1000 |
| Cabinet Resolution(dot) | 192x192 | 192x384 | 168x168 | 168x336 | 128x128 | 128x256 | 168x168 | 168x336 | 128x128 | 128x256 | 104x104 | 104x208 |
| Usage | Indoor / Rental | Outdoor / Rental |
| Water proof IP rate | IP31 | Front: IP65; Rear:IP54 |
| Brightnees(nits) | <1100 | <5000 |
| View angle | H: 160° / V: 160° |
| Gray scale | 16 bit |
| Refresh Rate | 1920Hz / 3840Hz |
| Diving Mode | 1/16 scan |
| Lifespan(H) | >100 000 |
| Power Comsumption(max.) | 550 | 600 | 800 |
| Power Comsumption(ave.) | 180 | 200 | 266 |
| Environment |
| Working Temperature | -20ºC ~ + 60ºC |
| Working Humidity | 10% ~90% |
| Storage Temperature | -35ºC ~ + 85ºC |
| Storage Humidity | 10% ~90% |
| Material |
| Cabinet | Die-cast aluminium |
| Maintenance | Front-side / Rear-side access (Optional) |
| LED chip | Nationstar / King light (Optional) |
| Power supply | Meanwell / G-energy (Optional) |
| Controlling system | Novastar / Linsn / Colorlight (Optional) |
| Installation | Free standing / Hanging (Optional) |
Manufacturer:
Exhibitions:
Certificates:
2. Features: 1. High Quality LED Lamps 2. Hight brighenss & high contrast rate
3. Constant current IC & control system
4. Large area splicing, high color uniformity
5. Low light decay, super long lifespan
6. Standard Module & Cabinet
7. Wall mounted or Pole fixed installation
3. Advantages:
A: High refresh rate: With NOVAstar control system,no scanning line when photographed
B: High gray level: 256 RGB each, display 16.7M colors, vivid and perfect video effect
C: High resolution: The most apparent features of the new generation of LED display
D: Good color uniformity:With brand Lamp Nationstar and high refresh MBI5124 IC.
E: High Brightness: 6000-8000cd/m2, brightness automatically adjusted
F: High Quality: CE, RoHs, FCC, UL, IP65, ISO9001 passed + 96 Hours serious testing time
G: Long life span: over100,000hours, warranty at least 2 years.
H: You need = We design: Provide Personal- Customized led offer.
