Basic Info.
Automatic Grade
Automatic
Block Type
Interlocks Shapes
Model
Hydraulic Clay Brick Making Machine
Keywords
Hydraulic Clay Brick Block Making Machine
Name
Interlocking Brick Making Machine
Product Name
Fully Automatic Clay Block Making Machine
Products
Clay Interlock Blocks
After-Sales Service Provided
Video Technical Support
Advantage
High Efficiency
Machine Type
China Eco Soil Interlocking Brick Making Machine
Brick Material
Earth Soil Mud
Specification
1700*1400*2300mm
Production Capacity
30set/Month
Packaging & Delivery
Package Size
230.00cm * 210.00cm * 220.00cm
Package Gross Weight
1900.000kg
Product Description

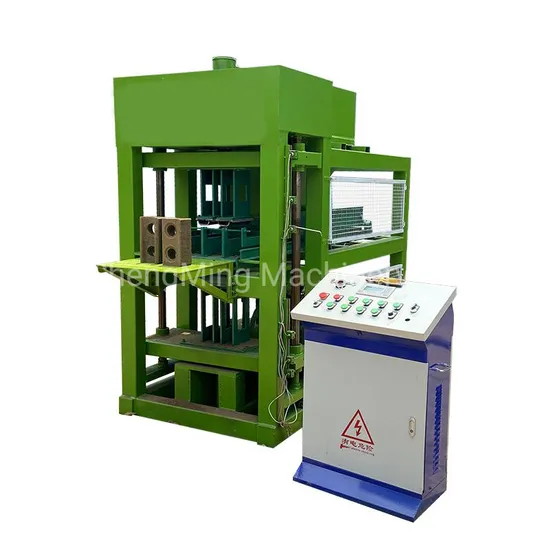

SHM2-10 clay automatic red soil interlocking brick block making machine price in uganda
Dimension of host machine
| 1700x1400x2300mm
| Power of host machine
| 11 kw
|
Weight of host machine
| 1T
| Hydraulic pressure
| 12T
|
Shaping method
| Top side press
| Capacity (pieces/8 hours)
| 4000-4800
|
Power supply
| 380/400/220V
| Forming period
| 10-15S
|
Introduction
The whole machine adopts PLC automatic control system and advanced hydraulic components. The vane pump with strong silence is selected as the oil pump to provide strong oil pressure and greatly reduce the working noise.
The solenoid valve, the core component of the oil pressure system, is a well-known domestic brand. The added proportional valve can more accurately control the action of equipment and the compactness of products. The addition of water cooler greatly improves the stability of the whole machine.
The machine can produce various styles of chain bricks and pavement bricks by changing molds, which makes it possible for customers to produce diversified products. It is an ideal equipment choice for medium-sized brick making machine factory! |
Advantages:
1. Silent gear pump is selected for oil pump (plunger pump is selected for airbag clamp version)
2. The whole machine is automatically controlled by PLC, and Delta PLC is adopted
3. The air bag clamp ensures that the bottom of the brick is flat and uniform
4. The upper and lower pressurization system ensures the compactness of bricks to the greatest extent
5. Proportional valve control, oil pressure adjustable
|
SHM2-10 clay automatic red soil interlocking brick block making machine price in uganda
(1) Q: what is the material for this machine ?
A: you can use lateriate or other clay material or concrete material, plus a little cement.
(2) Q: How many kinds of block can be made by this machine ?
A: by changing mold, this machine can make all type design brick ,block or even paver.
(3) Q: What is the hydraulic oil for this machine ?
A: Summber use 46#, winter use 32#. all easily found locally
(4) Q: Will you provide spare parts for this machine ?
A: we will provide you one year free spare parts.can support machine working for many years
(5) Q:How many days to make the machine if place order?
A:Normally need 15-20 days but all depend on molds quantity.
SHM2-10 clay automatic red soil interlocking brick block making machine price in uganda
>>
