High-Speed CNC Drilling Machine 2000mm*1600*100mm (L*W*H)

Product Description

Product Description:

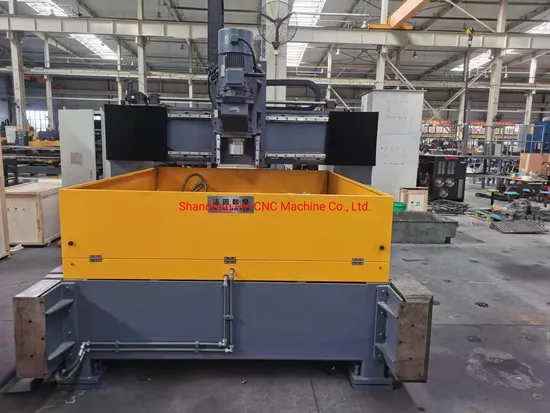

PHD2016 CNC Drilling Machine for Steel Plates
Applicable Industry:
This machine purpose is mainly used for drilling plate workpieces in steel structures such as construction, coaxial, iron tower, etc., and can also be used for drilling tube plates, baffles and circular flanges in boilers, petrochemical industries.
Main Technical Specifications:

Specification name	Items	Specification valve
Workpiece dimension	Material overlapping thickness	Max. 100mm
	Width×length	2000mm×1600mm one piece
		1600mm×1000mm two pieces
		1000mm×800mm four pieces
Spindle	Spindle boring	BT50
	drill diameter	Max. Φ50mm
	rotate speed	0-2000r/min
	travel length	350mm
	process feeding	Servo motor driven
Workpiece clamp	clamp thickness	15-100mm
	clamp cylinder number	12
	Clamp force	7.5kN
	Clamp start	Foot switch
Cooling liquid	Recycle design	Forced circulation
	Cooling mode	Spray cooling
Hydraulic	Clamp pressure	6MPa(60kgf/cm2)
	capacity of tank	About 100L
Air pressure	Air source	0.4MPa(4kgf/cm2)
Motor	Spindle	15kW
	Feeding	2.0kW
	Hydraulic pump	2.2kW
	Cooling pump	0.25kW
	X axle servo system	2.0kW
	Y axle servo system	1.5kW
	Chip conveyor	0.75kW
Machine dimension	L×W×H	About 5500×2950×2900mm
	Weight	About 6500kg
Control axle number	X,Y(Point control),Z(servo feeding)
Travel range	X axle	2000mm
	Y axle	1600mm
	Z axle	350mm

List of Free Accessories to be shipped together with the machine:

NO	Code	Name	Quantity	Remark
1	BT50-40	hilt	1
2	BT50-I	Pull nail	1
3		"O"ring 16×2.4mm	5 pcs
4		"O"ring 11×1.9mm	5 pcs
5		"O"ring 50×3.1mm	1 piece

Key Outsourced Components List:

NO.	Name	Brand	Country
1	Linear guide rail	PMI/HIWIN	Taiwan (China)
2	Hydraulic pump	JustMark	Taiwan (China)
3	Electromagnetic valve	Atos/Yuken	Italy/Japan
4	Servo motor	Inovance	China
5	Servo driver	Inovance	China
6	PLC	Inovance	China
7	Computer	Lenovo	China

Product Feature:
The ideal drilling machine is mainly composed of bed(worktable), gantry, drilling head, longitudian slide platform, quick-change chuck, hydraulic system, control system, cooling system and chip-conveyor etc.
The cnc engraving machine can use internal cooling high speed steel drilling head with coating. Using the internal cooling high speed steel drilling head with coating can significantly improve the processing efficiency and quality.
The machine including three CNC axes, each of all is guided by high precision linear rolling guide, driven by AC servo motor and ball-screw.
It adopt precision spindle with high rotation accuracy and good rigidity. Equipped with BT50 taper hole, it is convenient to change the tool. It can be used for clamping twist drills and hard alloy drills, which has a wide range of applications. The main shaft is driven by a main shaft frequency conversion motor, which has a wide range of applications. The speed can be continuously variable in a wide range to meet the needs of multiple speeds.
The machine has 3 CNC axes: gantry positioning axis (X axis); horizontal positioning axis of drilling power head (Y axis); feed axis of drilling power head (Z axis). Each CNC axis is guided by a precision linear rolling guide, driven by AC servo motor + ball screw.
Company Introduction:
Shandong FIN CNC MACHINE CO., LTD. is always focusing on our ultimate goal - to secure and increase our customer's productivity - has made us the leader in China market in the manufacture of machines for processing angle bar, beam channel profiles, steel plates, tubesheet and flanges, mainly serving for fabricating iron towers, steel structure, heat exchangers, boilers, bridges, and trucks.Strong R & D center with 30 engineers team, 24 years of experience from year 1997, 280 staff, plant area about 270,000 sqm., very harsh quality control of every component and the whole machine, about 40 million US dollars sales turnover per year.
FIN CNC machines' market share in China is around 70% and exported to 50+ countries across globe market. All top ranked tower manufacturers, steel structure fabricators and power station makers, bridge/railway manufacturers, truck makers are our clients.
Main products: CNC Angle Line, CNC Beam Drilling Sawing Machine, CNC Plate Drilling Machine, CNC Rail Processing Machine, CNC Tubesheet Flange Drilling Machine, Truck beam plate punching machine, etc..One measure of the outstanding quality of our machines is their longevity: many FIN machines have been in operation for more than 17 years! Many clients are continually placing repeated orders which verified well our machines' perfect quality and reliable performance.
The company drafted many China national standards for CNC angle line machine and CNC beam drilling sawing machine and CNC plate drilling machine.
Our Service:
FAQ: 1. When can you arrange shipment?
For machines available in stock, the shipment can be arranged within 15 days after getting advance payment or L/C;
For machines non available in stock, the shipment can be arranged with 60 days after getting advance payment or L/C.
2. What can you do if my machines have problems?
1) We can send you free components if machines are in warranty period;
2) 24 hours service on line;
3) We can assign our engineers to serve you if you want.
3. Do you provide machine operation training?
Yes. We can send professional engineers to the working site for machine's installation, commissioning and operation training.
4. Which machine model shall I choose when I purchase from you?
Please share us your material size and your processing request, then we will recommend our machine most suitable and most cost effective for your work demand.
5. What's your machine's market share in China?
Our market share in China is about 70%+, and we've exported to 50+ countries across the globe market, since year 1998.

---
