HW S9306 02113090 02113196 Assembly Poe Supported Chassis Network Switch

Product Description

Product Description

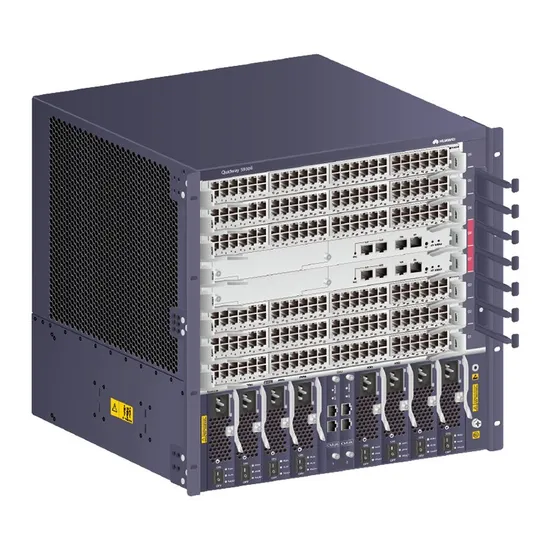

S9306 chassis: 02113090 S9306 chassis, PoE supported: 02113196 The S9306 chassis is 10 U high (1 U = 44.45 mm). When the chassis has no cable management frame installed, the dimensions (H x W x D) are 441.7 mm x 442 mm x 517.4 mm. When the chassis has cable management frames installed, the dimensions (H x W x D) are 441.7 mm x 442 mm x 585 mm. Detailed Photos


Product Parameters
Item
Description

LPU slots	6
MPU slots	2
Fan slots	2
System power supply slots	4
PoE power supply slots	4
Maximum port density	V100R006C00 and V200R001C00: 288xFE, 288xGE, 240x10GE V200R002C00 to V200R007C00: 288xFE, 288xGE, 240x10GE, 12x40GE V200R008C00 to V200R009C00: 288xFE, 288xGE, 240x10GE, 12x40GE, 12x100GE V200R010C00 to V200R019C00: 288xFE, 288xGE, 288x10GE, 48x40GE, 24x100GE V200R019C00 and later versions: 288xFE, 288xGE, 288x10GE, 48x40GE, 36x100GE
Installation	In an N66E or N68E cabinet, one or two chassis in a cabinet
CSS	CSS card or service port clustering
PoE	Power input: Versions earlier than V200R006C00 support only AC power supply. V200R006C00 and later versions support both AC power supply and DC power supply (only 2200 W DC power modules). V200R012C00 and later versions support 3000 W AC power supply and 3000 W high-voltage DC power supply PoE power module backup: no backup, 3+1 backup, or 2+2 backup Maximum output power: 9000 W
Maximum power consumption (fully configured, no PoE power supply) NOTE: The heat dissipation value of a chassis equals the current power consumption of the chassis.	2200 W
Power specifications	DC input voltage Rated voltage: -48 V DC/-60 V DC Maximum voltage range: 1600 W/2400 W DC power module: -38.4 V DC to -72 V DC 2200 W DC power module: -40 V DC to -72 V DC AC input voltage Rated voltage: 110 V AC/220 V AC, 50/60 Hz Maximum voltage range: 90 V AC to 290 V AC; 47 Hz to 63 Hz (The output power reduces to half of the maximum output when the input voltage is in the range of 90 V AC to 175 V AC.) HVDC input voltage (3000 W AC) Rated voltage: 240 V DC Maximum voltage range: 190 V DC to 290 V DC HVDC input voltage (3000 W HVDC) Rated voltage: 240 V DC/ 380 V DC Maximum voltage range: 190 V DC to 400 V DC
Dimensions (H x W x D, without rack-mounting brackets)	With cable management frames (10 U high): 441.7 mm x 442 mm x 585 mm (17.39 in. x 17.4 in. x 23.0 in.) Without cable management frames (10 U high): 441.7 mm x 442 mm x 517.4 mm (17.39 in. x 17.4 in. x 20.37 in.)
Weight (empty/fully configured)	15 kg/61.8 kg (33.1 lb/136.2 lb)
Reliability and availability	MTBF: 24.2 years MTTR: 2 hours Availability: 0.9999959 NOTE: The preceding values are calculated based on the typical configuration of the product. The actual values will vary depending on the modules installed on the product.
Environment specifications	Operating temperature and altitude: -60 m to +1800 m (-197 ft. to 5906 ft.): 0°C to 45°C (32°F to 113°F) 1800 m to 4000 m (5906 ft. to 13123 ft.): Operating temperature decreases by 1°C (1.8°F) every time the altitude increases 220 m (722 ft.). 4000 m (13123 ft.): 0°C to 35°C (32°F to 95°F) Relative humidity: 5% RH to 95% RH (noncondensing) Storage temperature: -40°C to +70°C (-40°F to +158°F) Storage altitude: < 5000 m (16404 ft.)
Noise at normal temperature (acoustic power)	≤ 72 dB(A)
Certification	EMC certification Safety certification Manufacturing certification
Part number	S9306 chassis: 02113090 S9306 chassis, PoE supported: 02113196

Company Profile
Chongqing Chimu Technology Co., Ltd. was established in 2011, we have been engaged in this industry 11 years. Relying on 11 years of deep experience in the communication field and scientific and technological innovation ability, through the integration of multi-brand, full series of communication products resources, with a one-stop service model. Let the network better connect you and me, connect the world. In order to meet the needs of customers, we have eatablished a perfect supply chain system to provide super products with reliable quality and reasonable price.
We are devoted to offering Switches, Routers, Servers, Storages, LTs, SDHs, Network Modules, Interface Cards, Security Firewalls, Wireless AP. Our long-term aim is to provide users high-quality, efficient, economic, timely services. Looking forward to establish long-term and win-win business relations with you.
Our Advantages
A)Stable and Wide Supply Chain Systemwe have established a perfect supply chain system to provide a wide range of products with reliable quality and reasonable price.B)Competitive PriceWe ensure the most competitive price. Warm reminders here, telecommunications equipment configuration is quite different, the price shown on the website is only for reference. After configuration and quantity been confirmed, we will give the final most competitive discounted price.C) Safe and Easy Payment SolutionsWe accept all major credit cards, PayPal and wire transfer.D)Fast Delivery and ShippingFast, professional and reliable delivery.E)11+ Years Experiencewe have been engaged in this industry more than 11 years, we have rich industry experience.
Packaging & Shipping
FAQ
Q: How about your main products?
A: Our product lines include Switches, Routers, SFP Modules, OLTs, SDHs, Network Modules, Interface Cards, Security Firewalls, Wireless AP etc.
Q: What brand of products do you offer?
A: We can supply all the brands you need.
Q: what services can we provide?A:Accepted Delivery Terms: FOB,CFR,EXW,FCA; Accepted Payment Currency:USD,EUR,CAD,HKD,GBP,CNY; Accepted Payment Type: T/T,MoneyGram,PayPal,Western Union,Cash etc...
Q: Can we get free samples?
A: Sorry, it is not available, but you can pay for one.
Q. How can we guarantee quality?A:Always a pre-production sample before mass production; Always final Inspection before shipment;
Q: How about your delivery time?
A: Generally, it will take 1 to 10 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.
Q: Do you test all your goods?
A: Yes, We have professional engineer to test all devices before shipping.
Q:How about the MOQ?
A:1 piece

---
