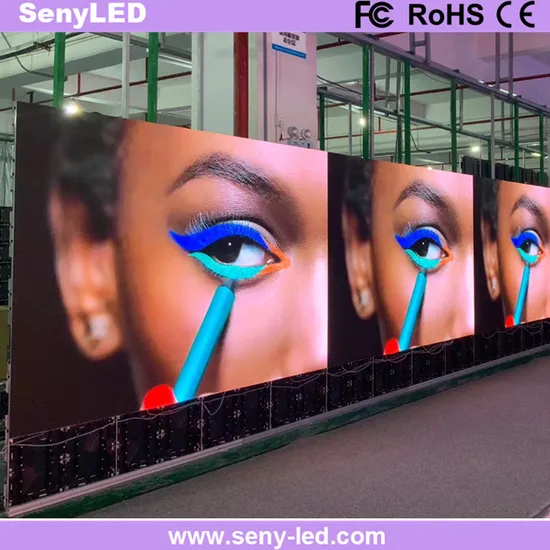

P1.86mm UHD TV Studio High Definition Video Wall Panel Digital Advertising Display Board Small Pitch Indoor Full Color LED Screen

Product Description

P1.86mm UHD TV Studio High Definition Video Wall Panel Digital Advertising Display Board Small Pitch Indoor Full Color LED Screen Application: Applied to indoor places such as station, port, airport, meeting room, shopping mall, hotel, TV station etc. it uses as video and information display.

Technical Parameter:

Item Name	Technical Parameter
LED Parameter
Item Name	LED Type
Red LED	SMD3in1
Green LED	SMD3in1
Blue LED	SMD3in1
Module Parameter
Pixel Pitch	1.86mm
Pixel Configuration	1R1G1B
Module Resolution	172 x 86 pixels
Module Pixles	14792 pixels
Module Size	320mm x 160mm
Cabinet Parameter
Cabinet Size(W X H X D)	640mm x 480mm x 70mm
Cabinet Resolution(dot)	344 x 258 pixels
Module Quanity (pcs)	6pcs
Cabinet Pixels	88752 pixels
Pixel Density	289050 pixels/m2
Cabinet Type	Die Casting Aluminum, front maintenance
Cabinet Weight	6.8kg/ cabinet
Whole Screen Parameter
Screen Brightness	800cd/m2
Driving Method	1/43 scan, constant current driving
Min. Viewing Distance	1m
Max. Power Consumption	≤650 W/m2
Ave. Power Consumption	≤200W/m2
Gray Level	14 bits
Frame Frequency	≥60Hz
Refresh Frequency	3840Hz
LED Life-span	≥100,000 hours
MTBF	≥5,000 hours
Discrete Blind Spot Rate	<1/10000
Continuous Blind Spot Rate	None
Blind Spot Rate	<1/10000
Protective Scale	IP20
Screen Plainness	<±1mm
Power Supply Mode	220V
Working Temperature	Temperature: 0 Celsius~+40 Celsius
Storage Temperature	Temperature:-30 Celsius~+50 Celsius
Humidity	Humidity:10%~90% RH
Control Mode	Synchronous display with control PC by DVI
Control System	Novastar
Display Content	Video, picture, cartoon, graphics, texts.etc.
Interface	Standard Ethernet
Transmission Distance	Multi mode fiber <500m, single mode fiber <20km,internet cable <100m

Cases:
Production Process:
Certification:
Packaging and Shipping:
Our Services:
Pre-sales support:
1. We offered technical advice to you before buying our products.
2. Help you to choose suitable products within budget with most economy benefit.
3. Design the framework structure to install our led products with technical drawing.
4. We offered software customization for our your specific usage.
After- sales service:
1. We promise you more than two years warranty service!
2.We provide free maintenance services including remote configuration, technical consultation, and trouble shooting for you.
3. We promise a life time follow-up service for all the equipment supply by our company. These include continuously improve of system functions and upgrade of system software.
4. We offered training to our customer who includes operating and maintenance of our products.
