Heavy Duty CNC Lathe Machine Ck61125b Semi Protection Turning Lathe Center

Product Description

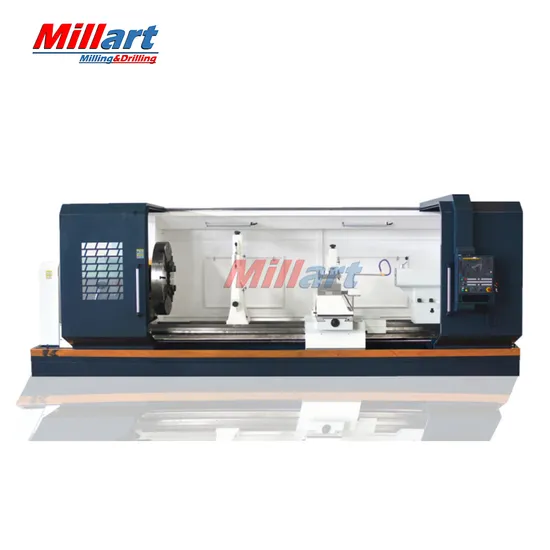

Heavy Duty CNC Lathe Machine CK61125B Semi Protection Turning Lathe Center
Features:
CK Series are economical and practical CNC lathes. With optimized structures, unfailing performance, high quality, simple programming, and easy handling, they are suitable for turning of complicated shaft, sleeve, and disk type work-pieces such as turning of internal and external cylindrical, conical, arc surfaces and various threads, and even drilling, boring and reaming holes. And they are especially fit for turning of diversified work-pieces on small and medium batches. They are of high versatility high efficiency, low inferiority and good comfort ability. So to be widely used in various trades, such as automobile industry. Petroleum industry, military industry, and so on.
Specifications:

Model	Unit	CK61125B
Max swing over bed	mm	1250
Max swing over carriage	mm	870
Max.length of workpiece	mm	1500/2000/3000/4000/5000
Distance between spindle center to plane guide	mm	625
Spindle nose		A2-15
Spindle bore	mm	130
Spindle taper		1:20/140
Bed width	mm	755
Spindle speed and steps	r/min	4 steps 4-470
Four jaw chuck size	mm	1000
Distance from spindle to ground	mm	1275
X axis rapid moving speed	m/min	4
Z axis rapid moving speed	m/min	6
X axis travel	mm	650
Z axis travel	mm	2850
Tail stock quill diameter	mm	160
Tail stock quill travel	mm	300
Tail stock quill taper		MT6
Tool post size	mm	300x300
Tool post shrank size	mm	40x40
Re-positioning accuracy	mm	0.005
Main motor power	kw	22
Coolant pump motor	w	125
Overall dimensions	mm	4600/5100/6100/8100x2500x2250
Machine weight	kg	10500/11000/12500/15000
Max loading capacity	kg	8000

Standard accessories:
Fanuc 0i TF controller
4 station electric turret
4 jaw chuck
Manual tailstock
MPG
Integrated automatic lubrication system
Coolant system
Lighten system
Dead centers
Center sleeve
Optional accessories:
Automatic chip conveyor
Steady rest
Follow rest

---
